Overview

Features and Benefits

  • Halts and restarts an out-of-control microprocessor
  • Holds microprocessor in check during power transients
  • Automatically restarts microprocessor after power failure
  • Monitors pushbutton for external override
  • Accurate 5%, 10% or 20% resets for 3.3V systems and 5% or 10% resets for 5.0V systems
  • Eliminates the need for discrete components
  • 3.3V 20% tolerance for use with 3.0V systems
  • Pin-compatible with the MAXIM MAX705/MAX706 in 8-pin DIP, 8-pin SO, and µSOP
  • 8-pin DIP, 8-pin SO and 8-pin µSOP packages
  • Industrial temperature range -40°C to +85°C

Product Details

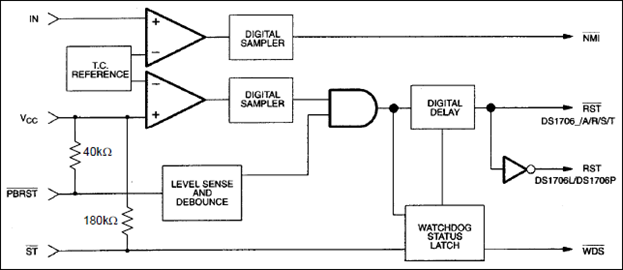

The DS1705/DS1706 3.3- or 5.0-Volt MicroMonitor monitors three vital conditions for a microprocessor: power supply, software execution, and external override. A precision temperature compensated reference and comparator circuit monitor the status of VCC at the device and at an upstream point for maximum protection. When the sense input detects an out-of-tolerance condition a non-maskable interrupt is generated. As the voltage at the device degrades, an internal power fail signal is generated which forces the reset to an active state. When VCC returns to an in-tolerance condition, the reset signal is kept in the active state for a minimum of 130ms to allow the power supply and processor to stabilize.

The second function the DS1705/DS1706 performs is pushbutton reset control. The DS1705/DS1706 debounces the pushbutton input and guarantees an active reset pulse width of 130ms minimum.

The third function is a watchdog timer. The DS1705/DS1706 has an internal timer that forces the WDO signal to the active state if the strobe input is not driven low prior to time-out.

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Tools & Simulations

IBIS Models

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
DS1706ESA+ Material Declaration Reliability Data Small-Outline IC, Narrow (0.15in)
DS1706ESA+T&R Material Declaration Reliability Data Small-Outline IC, Narrow (0.15in)
DS1706EUA+ Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline
DS1706EUA+T&R Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline
DS1706LEPA+ Material Declaration Reliability Data Plastic Dual-In-Line, Narrow (0.3in)
DS1706LESA+ Material Declaration Reliability Data Small-Outline IC, Narrow (0.15in)
DS1706LESA+T&R Material Declaration Reliability Data Small-Outline IC, Narrow (0.15in)
DS1706PEPA+ Material Declaration Reliability Data Plastic Dual-In-Line, Narrow (0.3in)
DS1706PESA+ Material Declaration Reliability Data Small-Outline IC, Narrow (0.15in)
DS1706PESA+T&R Material Declaration Reliability Data Small-Outline IC, Narrow (0.15in)
DS1706RESA+ Material Declaration Reliability Data Small-Outline IC, Narrow (0.15in)
DS1706RESA+T&R Material Declaration Reliability Data Small-Outline IC, Narrow (0.15in)
DS1706REUA+ Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline
DS1706SESA+ Material Declaration Reliability Data Small-Outline IC, Narrow (0.15in)
DS1706SESA+T&R Material Declaration Reliability Data Small-Outline IC, Narrow (0.15in)
DS1706SEUA+ Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline
DS1706SEUA+T&R Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline
DS1706TESA+ Material Declaration Reliability Data Small-Outline IC, Narrow (0.15in)
DS1706TESA+T&R Material Declaration Reliability Data Small-Outline IC, Narrow (0.15in)
DS1706TEUA+ Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline
DS1706TEUA+T&R Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline
Wafer Fabrication Data DS1706 Reliability Data
