DS1233M

PRODUCTION

EconoReset

Data Sheet (Rev. 1) Product Selection Table
Part Models
9
1ku List Price
Starting From $1.09
Viewing:

Part Details

  • Automatically restarts microprocessor after power failure
  • Maintains reset for 350ms after VCC returns to an in-tolerance condition
  • Reduces need for discrete components
  • Precision temperature-compensated voltage reference and voltage sensor
  • Low-cost TO-92 package or surface mount 8-pin SO packages available package
  • Internal 5k ohm pullup resistor
  • Compatible with Motorola 68XXX series and HC16 Microprocessors
  • Pin function compatible with the Motorola MC33064, MC34064, MC33164, and MC34164
  • Operating temperature of -40°C to +85°C
    •
    DS1233M
    EconoReset

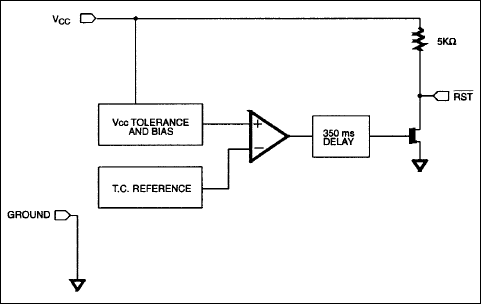

    DS1233M: Block Diagram
