  5. DS1233

Data Sheet Rev. 1
CN Rev. 1 | JP Rev. 1

Overview

Features and Benefits

  • Automatically restarts microprocessor after power failure
  • Monitors pushbutton for external override
  • Internal circuitry debounces pushbutton switch
  • Maintains reset for 350ms after VCC returns to an in-tolerance condition or pushbutton released
  • Accurate 5%, 10%, or 15% microprocessor 5V power supply monitoring
  • Reduces need for discrete components
  • Precision temperature-compensated voltage reference and voltage sensor
  • Low-cost TO-92 package or surface-mount SOT-223 package
  • Internal 5kΩpull-up resistor
  • Operating temperature of -40°C to +85°C

Product Details

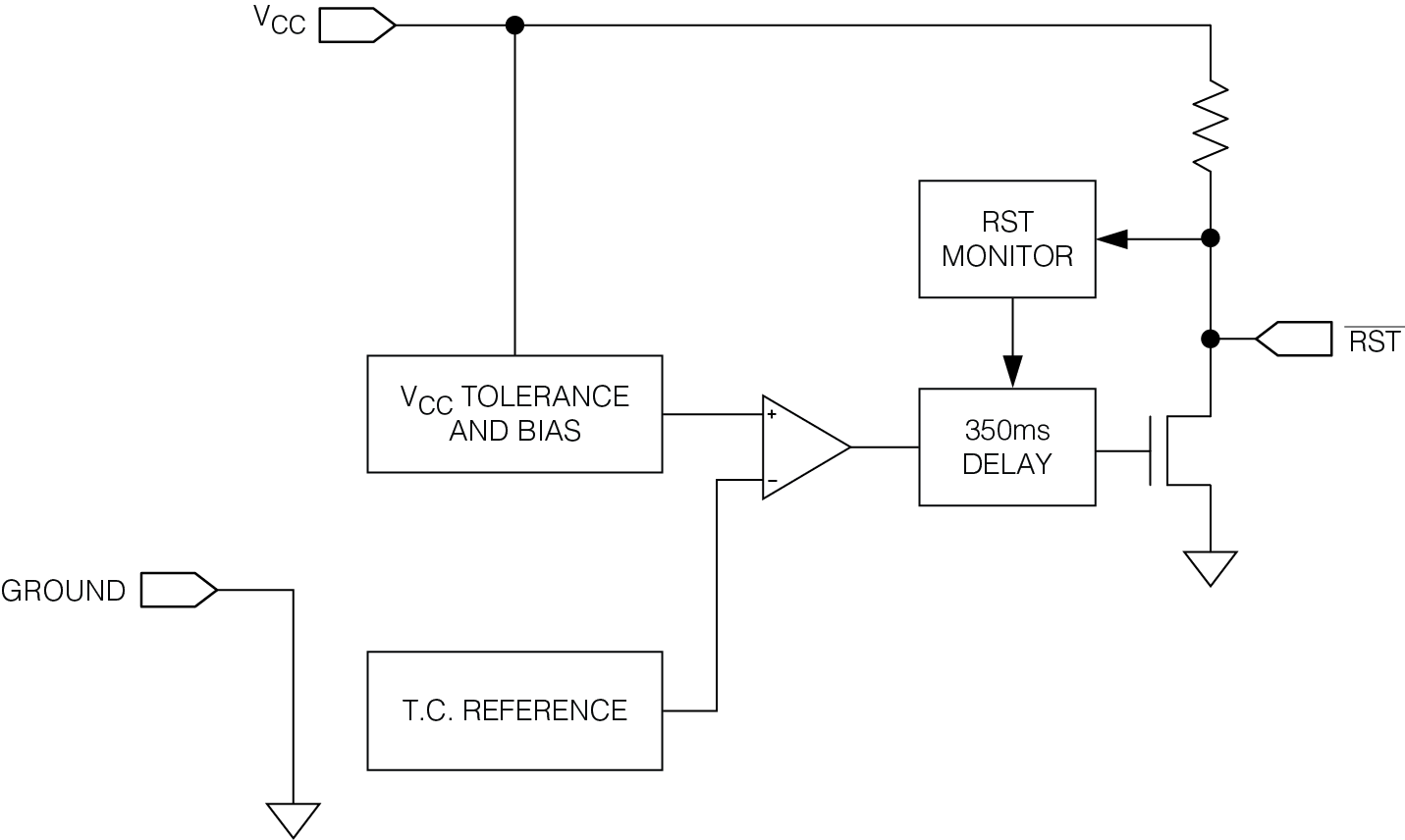

The DS1233 EconoReset monitors two vital conditions for a microprocessor: power supply and external override. A precision temperature-compensated reference and comparator circuit are used to monitor the status of the power supply (VCC). When an out-of-tolerance condition is detected, an internal power-fail signal is generated which forces reset to the active state. When VCC returns to an in-tolerance condition, the reset signal is kept in the active state for approximately 350ms to allow the power supply and processor to stabilize. The second function of the DS1233 is pushbutton reset control. The DS1233 debounces a pushbutton closure and will generate a 350ms reset pulse upon release.

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Documentation & Resources

  • View All (3)
  • Data Sheets (1)
  • Reliability Data (1)
  • Design Notes (1)
    • Document Type

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    DS1233-10+ Material Declaration Reliability Data TO92
    DS1233-10+T&R Material Declaration Reliability Data TO92
    DS1233-15+ Material Declaration Reliability Data TO92
    DS1233-15+T&R Material Declaration Reliability Data TO92
    DS1233-5+ Material Declaration Reliability Data TO92
    DS1233-5+T&R Material Declaration Reliability Data TO92
    DS1233Z-10+ Material Declaration Reliability Data Small-Outline Transistor Package (TO261)
    DS1233Z-10+T&R Material Declaration Reliability Data Small-Outline Transistor Package (TO261)
    DS1233Z-15+ Material Declaration Reliability Data Small-Outline Transistor Package (TO261)
    DS1233Z-15+T&R Material Declaration Reliability Data Small-Outline Transistor Package (TO261)
    DS1233Z-5+ Material Declaration Reliability Data Small-Outline Transistor Package (TO261)
    DS1233Z-5+T&R Material Declaration Reliability Data Small-Outline Transistor Package (TO261)
    Wafer Fabrication Data DS1233 Reliability Data
