DS1232LP

Low-Power MicroMonitor Chip

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 12
1ku List Price Starting From $1.65
Features
  • Super-low power version of DS1232
  • 50µA quiescent current
  • Halts and restarts an out-of-control microprocessor
  • Automatically restarts microprocessor after power failure
  • Monitors pushbutton for external override
  • Accurate 5% or 10% microprocessor power supply monitoring
  • 8-pin DIP, 8-pin SO, or space saving µSOP package available
  • Optional 16-pin SO package available
  • Industrial temperature -40°C to +85°C available, designated N
  • Additional Details
    show more Icon

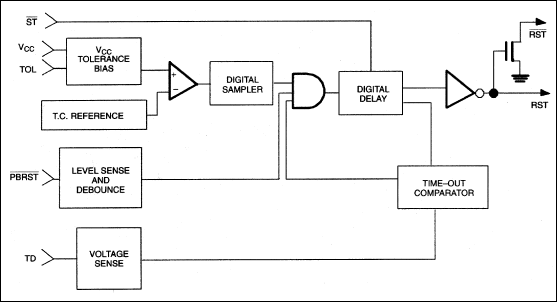

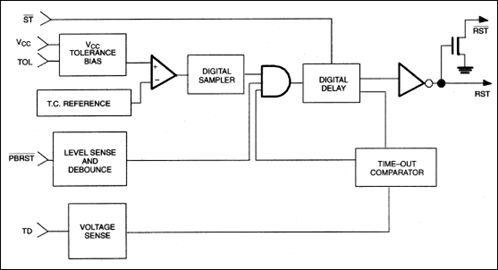

    The DS1232LP/LPS Low-Power MicroMonitor Chip monitors three vital conditions for a microprocessor: power supply, software execution, and external override. First, a precision temperature-compensated reference and comparator circuit monitors the status of VCC. When an out-of-tolerance condition occurs, an internal power-fail signal is generated, which forces reset to the active state. When VCC returns to an in-tolerance condition, the reset signals are kept in the active state for a minimum of 250ms to allow the power supply and processor to stabilize.

    Part Models 12
    1ku List Price Starting From $1.65
