DS1232: MicroMonitor Chip Data Sheet (Rev. 1)11/18/1999PDF132K
Overview
Features and Benefits
- Halts and restarts an out-of-control microprocessor
- Holds microprocessor in check during power transients
- Automatically restarts microprocessor after power failure
- Monitors pushbutton for external override
- Accurate 5% or 10% microprocessor power supply monitoring
- Eliminates the need for discrete components
- Space-saving, 8-pin mini-DIP
- Optional 16-pin SOIC surface mount package
- Industrial temperature -40°C to +85°C available, designated N
Product Details

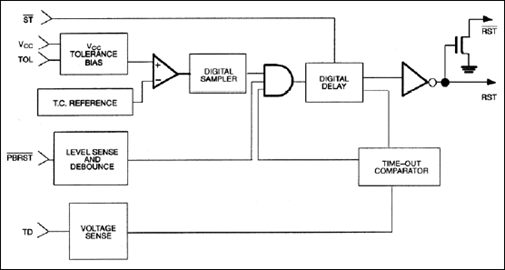

The DS1232 MicroMonitor™ Chip monitors three vital conditions for a microprocessor: power supply, software execution, and external override. First, a precision temperature-compensated reference and comparator circuit monitors the status of VCC. When an out-of-tolerance condition occurs, an internal power fail signal is generated which forces reset to the active state. When VCC returns to an in-tolerance condition, the reset signals are kept in the active state for a minimum of 250ms to allow the power supply and processor to stabilize.
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
-
DS1232 Reliability Data1/12/2023PDF19K
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| DS1232+ | Material Declaration | Reliability Data | Plastic Dual-In-Line, Narrow (0.3in) | |
| DS1232N+ | Material Declaration | Reliability Data | Plastic Dual-In-Line, Narrow (0.3in) | |
| DS1232S+ | Material Declaration | Reliability Data | Small-Outline IC, Wide (0.3in) | |
| DS1232S+T&R | Material Declaration | Reliability Data | Small-Outline IC, Wide (0.3in) | |
| DS1232SN+ | Material Declaration | Reliability Data | Small-Outline IC, Wide (0.3in) | |
| DS1232SN+T&R | Material Declaration | Reliability Data | Small-Outline IC, Wide (0.3in) | |
| Wafer Fabrication Data | DS1232 Reliability Data |
