Features and Benefits
- Low-Power, Monolithic CMOS Design
- On-Board Address Latches
- Break-Before-Make Input Switches
- TTL and CMOS Logic Compatible
- Microprocessor-Bus Compatible
- r < 400Ω
- Pin and Electrically Compatible with the Industry-Standard

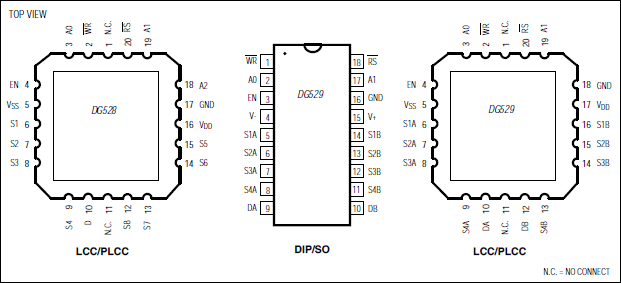

Maxim's DG528/DG529 are monolithic, 8-channel, CMOS multiplexers with on-board address and control latches that simplify design and reduce board space in microprocessor-based applications. The DG528 is a single-ended, 1-of-8 multiplexer, while the DG529 is a differential, 2-of-8 multiplexer. These devices can operate as multiplexers or demultiplexers.
The DG528/DG529 have break-before-make switching to prevent momentary shorting of the input signals. Each device operates with dual supplies (±4.5V to ±20V) or a single supply (+5V to +30V). All logic inputs are TTL and CMOS compatible. The Maxim DG528/DG529 are pin and electrically compatible with the industry-standard DG528/DG529.
- Audio Signal Multiplexing
- Automated Test Equipment (ATE)
- Avionics and Military Systems
- Communication Systems
- Data Acquisition
- Microprocessor-Controlled Systems
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
