Features and Benefits
- 1.8V/3.3V interface support
- 74.25 MHz 20-/30-bit high definition input support
- 6 Noise Shaped Video (NSV) 14-bit video DACs
- NTSC M, PAL B/D/G/H/I/M/N, PAL 60 support
- NTSC and PAL square pixel operation
- Multiformat video input support
- Multiformat video output support
- Simultaneous SD and ED/HD operation
- Macrovision® Rev 7.1.L1 (SD) and Rev 1.2 (ED) compliant
- EIA/CEA-861B compliance support
- Programmable features
- Copy generation management system (CGMS)
- Closed captioning and wide screen signaling (WSS)

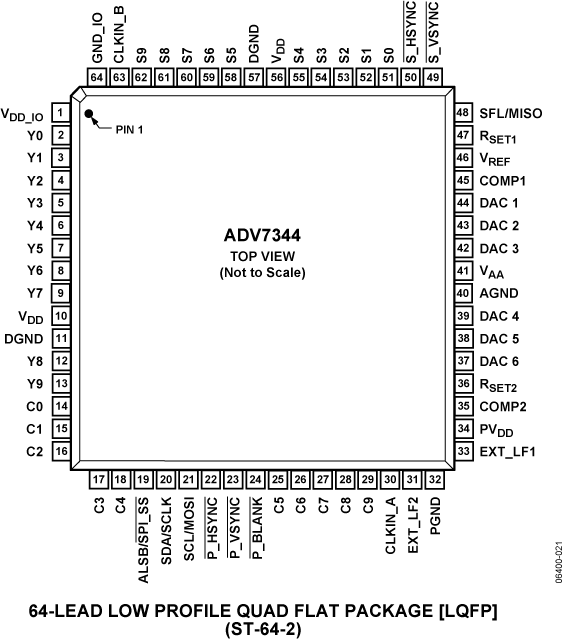

The ADV7344 is a high speed, digital-to-analog video encoder in a 64-pin LQFP package. Six high speed, NSV, 3.3 V, 14-bit video DACs provide support for composite (CVBS), S-Video (YC), and component (YPrPb/RGB) analog outputs in either standard definition (SD), enhanced definition (ED) or high definition (HD) video formats.
The ADV7344 has a 30-bit pixel input port that can be configured in a variety of ways. SD video formats are supported over a SDR interface and ED/HD video formats are supported over SDR and DDR interfaces. Pixel data can be supplied in either the YCrCb or RGB color spaces.
The ADV7344 also supports embedded EAV/SAV timing codes, external video synchronization signals, and the I2C communication protocol.
In addition, simultaneous SD and ED/HD input and output is supported. 216 MHz (SD and ED) and 297 MHz (HD) oversampling ensures that external output filtering is not required, while full-drive DACs ensure that external output buffering is not required.
Cable detection and DAC auto power-down features keep power consumption to a minimum.
- DVD recorders and players
- High definition Blu-ray DVD players
- HD-DVD players
