Robust 3.75 kV rms Quad-Channel Isolator with Integrated DC-to-DC Converter & 1 Reverse Channel

PRODUCTION

PRODUCTION

ADuM6410-6411-6412 Functional Block Diagram slide

ADuM6411 Pin Configuration slide

ADuM6410-6411-6412 Functional Block Diagram

ADuM6411 Pin Configuration

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $5.64

Features

isoPower integrated, isolated dc-to-dc converter
Up to 150 mW output power
Quad dc to 150 Mbps signal isolation channels
24-lead SSOP package with 5.3 mm creepage
High temperature operation: 105°C
High common-mode transient immunity: 100 kV/μs
Safety and regulatory approvals

UL recognition (pending)
– 3750 V rms for 1 minute per UL 1577
CSA Component Acceptance Notice 5A (pending)
VDE certificate of conformity (pending)
– DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
– V_IORM = 565 V peak

Additional Details

The ADuM6410/ADuM6411/ADuM6412 are quad-channel digital isolators with isoPower^®, an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc., iCoupler^® technology, the dc-to-dc converter provides regulated, isolated power that is adjustable between 3.15 V and 5.25 V.

The ADuM6410/ADuM6411/ADuM6412 eliminate the need for a separate, isolated dc-to-dc converters in low power, isolated designs. The iCoupler chip-scale transformer technology is used for isolated logic signals and for the magnetic components of the dc-to-dc converter. The result is a small form factor, total isolation solution.

The ADuM6410/ADuM6411/ADuM6412 isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide for more information).

Applications

RS-232 transceivers
Power supply startup bias and gate drives
Isolated sensor interfaces
Industrial PLCs

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $5.64

{{#if toggleButtonDescription}} {{/if}} {{#if newProjectTitle}} {{/if}}

Technical Documents 3

ADuM6410/ADuM6411/ADuM6412: Quad-Channel Isolators with Integrated DC-to-DC Converters Data Sheet (Rev.0) 07/29/2016

Show More

UG-1007: Using the EVAL-ADuM5411EBZ Evaluation Board with iCoupler Quad-Channel Isolators and Integrated DC-to-DC Converters (Rev.0) 07/29/2016

Show More

Safety and Regulatory Compliance Information 01/28/2016

Show More

Reference Materials 4

Enhanced Protection with the Latest iCoupler® Digital Isolation 02/07/2020

Digital Isolation and Interface Technology Selection Guide 02/07/2020

Safety and Regulatory Compliance Information 01/28/2016

Video

1

Thumbnail Image

Video

2020-10-28

01:00

Protect your Innovations: from High Precision to High Power

Learn More

Show More

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADUM6411BRSZ	24-Lead SSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADUM6411BRSZ-RL7	24-Lead SSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

ADUM6411BRSZ
Pin/Package Drawing
24-Lead SSOP
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADUM6411BRSZ-RL7
Pin/Package Drawing
24-Lead SSOP
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Alternative Parts 1

Parts	Product Life Cycle	Description
ADUM6421A	RECOMMENDED FOR NEW DESIGNS	Quad-Channel Isolators with Integrated DC-to-DC Converter (3:1 directionality)

reference details image

EVAL-ADuM5411

Evaluation Board for Quad-Channel iCoupler Data Isolators with Integrated DC-DC Converters in 24-lead SSOP Packages

EVAL-ADUM5411UEBZANGLE-web

EVAL-ADUM5411UEBZBOTTOM-web

EVAL-ADUM5411UEBZTOP-web

Evaluation Board for Quad-Channel iCoupler Data Isolators with Integrated DC-DC Converters in 24-lead SSOP Packages

Download

Print

EVAL-ADUM5411UEBZANGLE-web

EVAL-ADUM5411UEBZBOTTOM-web

EVAL-ADUM5411UEBZTOP-web

EVAL-ADUM5411UEBZANGLE-web

EVAL-ADUM5411UEBZBOTTOM-web

EVAL-ADUM5411UEBZTOP-web

EVAL-ADuM5411

Evaluation Board for Quad-Channel iCoupler Data Isolators with Integrated DC-DC Converters in 24-lead SSOP Packages

Features and Benefits

Access to 4 data channels and data output enable control pins
Easily configurable isoPower dc-to-dc converter controls
Split primary and secondary power planes for independent operation of data channels and isoPower integrated dc-to-dc converters
Multiple connection options for data and power
Support for printed circuit board (PCB) edge mounted coaxial connectors
Support for active probes
Layout for electromagnetic interference (EMI) evaluation

Buy Now View Details

Product Detail

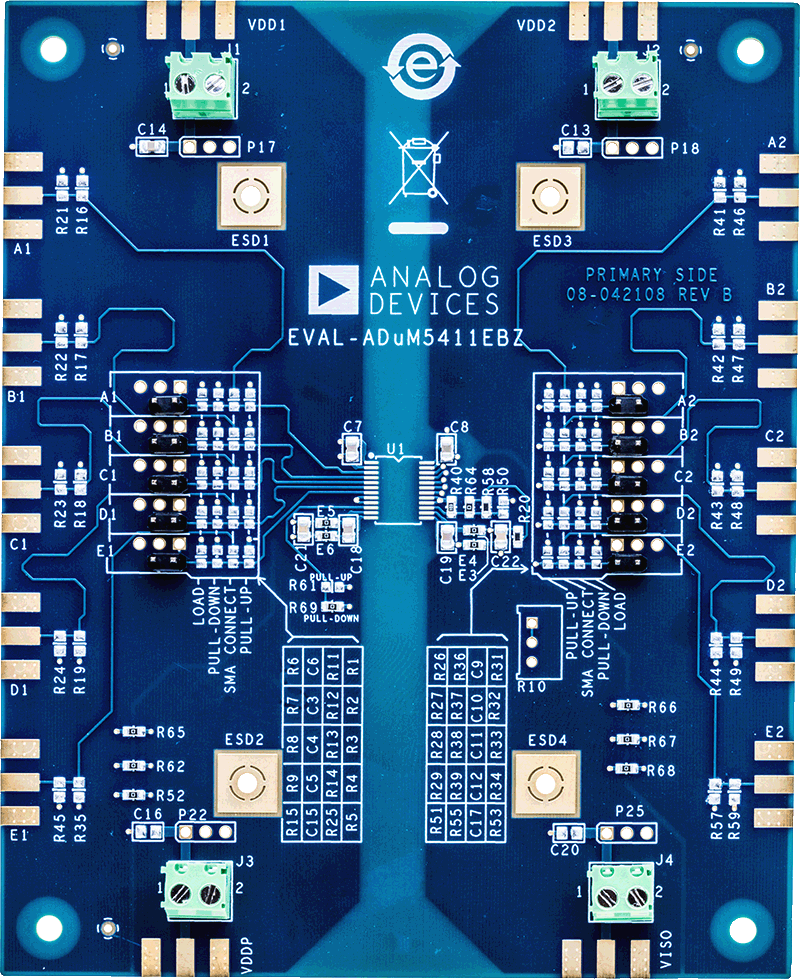

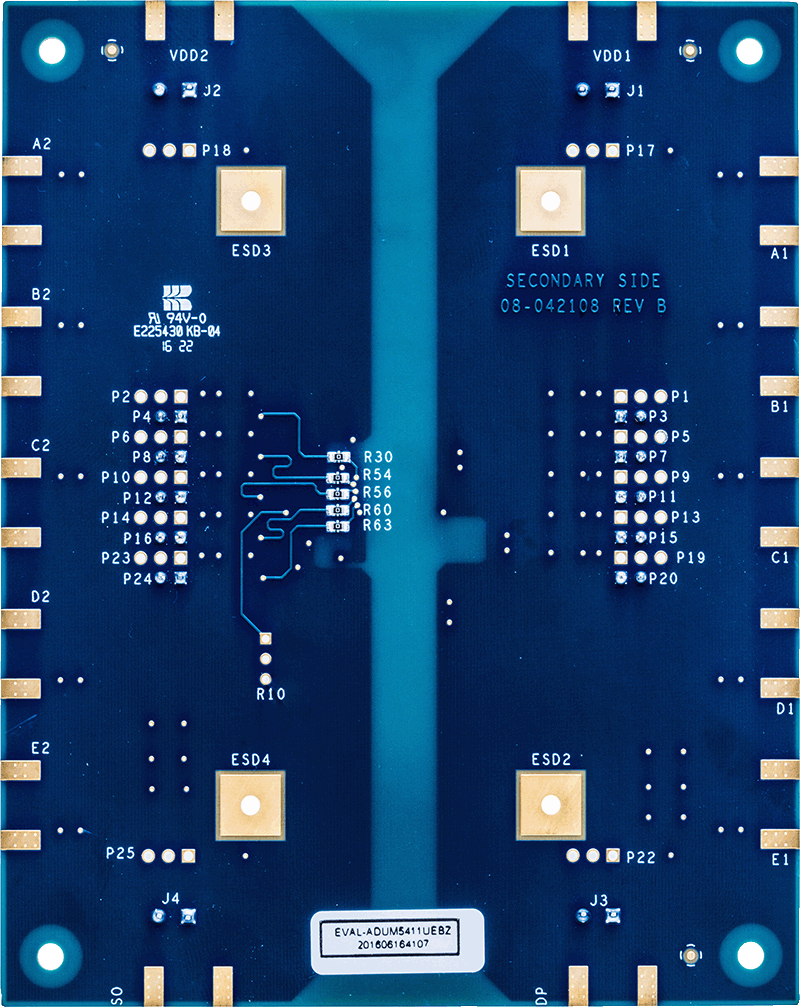

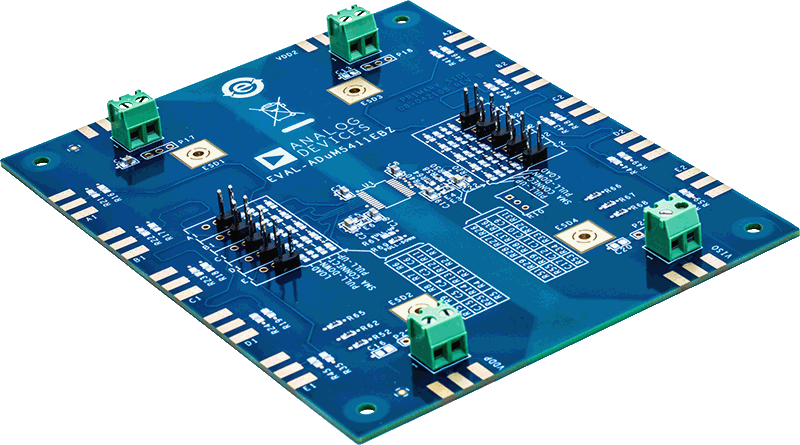

The EVAL-ADuM5411EBZ supports quad-channel iCoupler^® data isolators, including the ADuM5410/ADuM5411/ADuM5412 and ADuM6410/ADuM6411/ADuM6412, with an isoPower integrated dc-to-dc converter in 24-lead SSOP packages. The EVAL-ADuM5411EBZ supports signal distribution, loopback, and loads referenced to the power and ground planes. The evaluation board also has EMI evaluation and bypass and bulk capacitors. Signal sources can be conducted to the board through header pins or through edge mounted SMA connectors (SMA connectors must be ordered separately). Screw terminal blocks on the evaluation board provide power connections. The board includes 0.2 inch header positions for compatibility with active probes (probe header pins must be ordered separately).
