ADUCM430

Precision Analog Microcontroller, 12-Bit Analog Input and Output with PMIC and TECC, Arm Cortex-M3

RECOMMENDED FOR NEW DESIGNS

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 3

1ku List Price

price unavailable

Features

Analog input and output
- Multichannel, 12-bit, 2 MSPS ADC
  - Up to 16 external channels
  - Power, VDAC, IDAC, and temperature monitor internal channels
  - Single-ended and differential modes
  - 0 V to V_REF analog input range
  - Input buffer included
  - Digital comparators
Up to nine, 12-bit voltage output VDACs
- 4-channel, selectable output range
  - 0 V to 2.5 V or AVDDx − 0.1 (4-channel on the ADuCM430/ADuCM431/ADuCM432 and 3-channel on the ADuCM433)
  - AVDDNEG + 0.2 V to 0 V or −2.5 V to 0 V (4-channel on the ADuCM430 and 1-channel on the ADuCM433)
- 4-channel, 0 V to 2.5 V or AVDDx − 0.2 V
- 1-channel, 0 V to 2.5 V
Up to 4 low noise, 12-bit IDACs
- 4-channel, configurable output range: 50 mA, 100 mA, or 150 mA (ADuCM430)
- 1-channel, configurable output range: 50 mA, 100 mA, or 150 mA (ADuCM433)
Up to 4 voltage comparators with adjustable hysteresis voltage
TEC controller
- Optional Buck or LDO regulator modes if not using TEC
- Maximum heating and cooling current: 1.3 A
- Current and voltage monitoring and protection
- Soft start function
Microcontroller
- 32-bit Arm Cortex-M3 core, RISC architecture
- Serial wire port supports code download and debug
Clocking options
- 16 MHz on-chip oscillator
- 80 MHz PLL output
- External clock source

Memory
- Up to 2× 512 kB independent Flash/EE memories
- 48 kB SRAM
Software triggered, in circuit reprogrammability via I²C
On-chip peripherals
- 1× UART, 2× SPI, 2× I²C serial input and output
- GPIO with multilevel voltage (3.3 V, 1.8 V, and 1.2 V) digital inputs
- MDIO target up to 4 MHz (open drain)
- 3× 16-bit and 1× 32-bit general-purpose timers
- Wake-up timer (WUT)
- Watchdog timers (WDT)
- 32 element PLA
- 16-bit PWM
- Manchester encoder and decoder
- All GPIOs support external interrupt
Power
- Multiple supplies
  - AVDDx, IOVDDx, DVDD, and PVDDTECx : 2.85 V to 3.63 V
  - AVDDNEG (ADuCM430/ADuCM433): −1.8 V to −3.63 V
  - PVDDIDACxx/PVDDIDAC (ADuCM430/ADuCM433): 1.60 V to AVDDx
- Flexible operating modes for low power applications
Packages and temperature range
- 5 mm x 5 mm, 0.4 mm pitch, 121-ball CSP_BGA
- 5 mm x 5 mm, 0.4 mm pitch, 72-ball CSP_BGA
- Fully specified for TJ = –40°C to +125°C

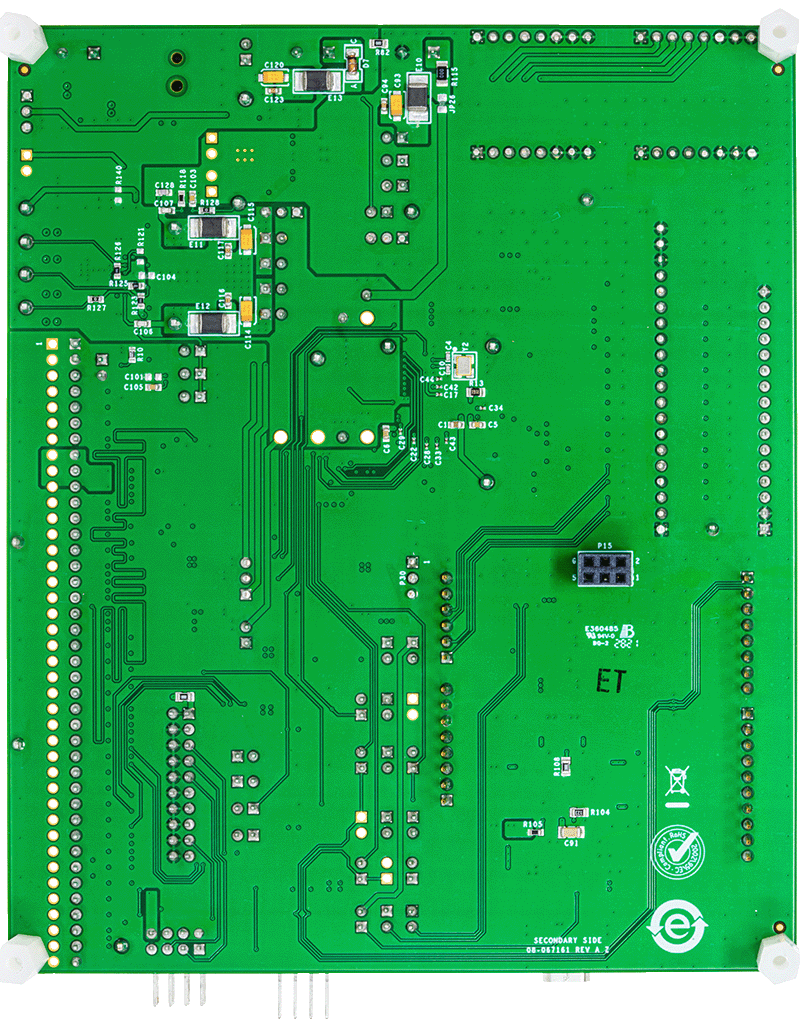

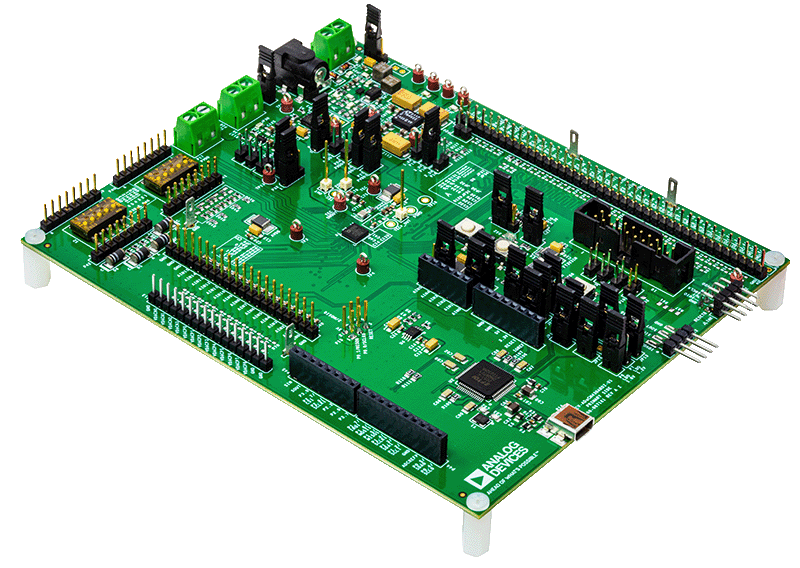

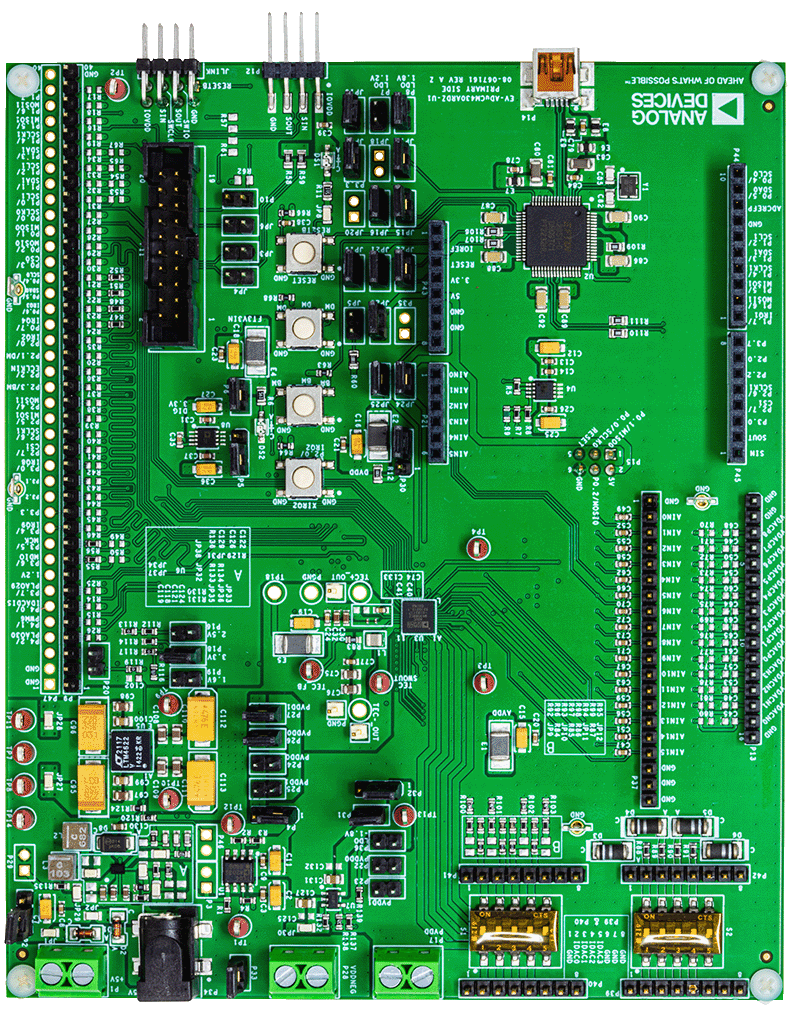

Tools
- Low cost QuickStart development system, which is available upon request from InfoOpticalNetwork@analog.com
- Full third-party support

Additional Details

Applications

Optical networking—100G/200G/400G and higher frequency modules

For more information on the ADuCM430, contact InfoOpticalNetwork@analog.com.
