ADT7301

PRODUCTION

13-Bit, ±1ºC Accurate, MicroPower Digital Temperature Sensor in 6-Lead SOT-23 and 8-Lead MSOP

Data Sheet (Rev. B) Product Selection Table

Part Models: 4
1ku List Price: Starting From $1.48

Viewing:

Overview

13-Bit Temperature-to-Digital Converter
-40°C to +150°C Operating Temperature Range
±0.5°C Typical Accuracy, ±1°C Max Accuracy
Shutdown Current of 1 µA
Power dissipation of 0.631 mW at V_DD = 3.3 V

SPI- and DSP-Compatible Serial Interface
Shutdown Mode

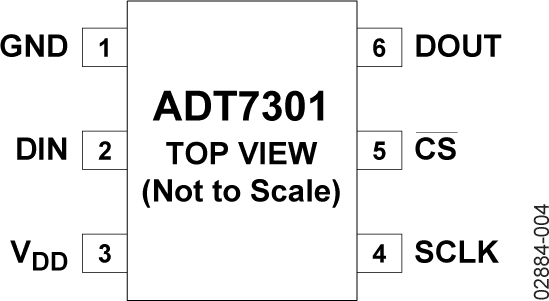

Space-Saving SOT-23 and MSOP Packages
Compatible with the AD7814 Applications

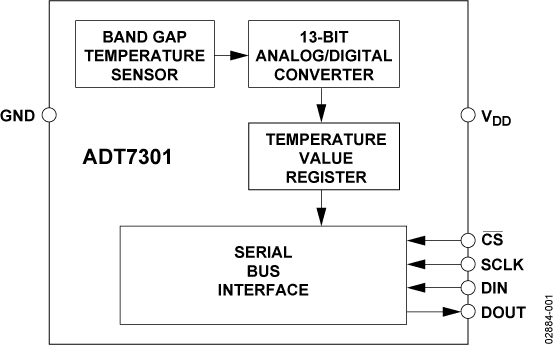

The ADT7301 is a complete temperature monitoring system in SOT-23 and MSOP packages. It contains a band gap temperature sensor and a 13-bit ADC to monitor and digitize the temperature reading to a resolution of 0.03125°C.

The ADT7301 has a flexible serial interface that allows easy interfacing to most microcontrollers. The interface is compatible with SPI^™, QSPI and MICROWIRE^™ protocol and is also compatible with DSPs. The part features a standby mode that is controlled via the serial interface. The ADT7301's wide supply voltage range, low supply current and SPI-compatible interface, make it ideal for a variety of applications, including personal computers, office equipment, automotive and domestic appliances. The ADT7301 is rated for operation over the −40°C to +150°C temperature range. It is not recommended to operate the device at temperatures above +125°C for greater than a total of 5% (5,000 hours) of the lifetime of the device. Exposure beyond this limit affects device reliability.

PRODUCT HIGHLIGHTS

On-chip temperature sensor that allows an accurate measurement of the ambient temperature. The measurable temperature range is −40°C to +150°C.
Supply voltage of 2.7 V to 5.25 V.
Space-saving 6-lead SOT-23 and 8-lead MSOP packages.
Typical temperature accuracy of ±0.5°C.
13-bit temperature reading to 0.03125°C resolution.
Shutdown mode that reduces the power consumption to 4.88 μW with V_DD = 3.3 V @ 1 SPS.
Compatible with AD7814.

APPLICATIONS

Medical equipment
Automotive
Environmental controls
Oil Temperature
Hydraulic systems
Cellular phones
Hard disk drives
Personal computers
Electronic test equipment
Office equipment
Domestic appliances
Process control

Part Models: 4
1ku List Price: Starting From $1.48

Documentation

Data Sheet 1

ADT7301: ±1°C Accurate, 13-Bit, Digital Temperature Sensor Data Sheet (Rev.B) 12/11/2002

Application Note 1

AN-892: Temperature Measurement Theory and Practical Techniques 01/28/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADT7301ARMZ	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADT7301ARMZ-REEL7	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADT7301ARTZ-500RL7	6-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADT7301ARTZ-REEL7	6-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Mar 22, 2021 - 21_0001 Addition of Amkor Philippines as an Alternate Site for Singulated MSOP and MSOP_EP
		PCN21_0001_Form Material_Report Other Qualification Results Summary
ADT7301ARMZ	PRODUCTION
ADT7301ARMZ-REEL7	PRODUCTION
Jan 5, 2015 - 14_0246 Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices
		PCN14_0246_Form Material_Report Detailed Change Description Qualification Results Summary
ADT7301ARMZ	PRODUCTION
ADT7301ARMZ-REEL7	PRODUCTION
May 15, 2012 - 10_0006 Halogen Free Material Change for mini SOIC Products
		PCN10_0006_Form Material_Report Qualification Report Summary Qualification Report Summary
ADT7301ARMZ	PRODUCTION
ADT7301ARMZ-REEL7	PRODUCTION
Dec 16, 2011 - 11_0301 ADT7301 and ADT7302 Datasheet Correction
		PCN11_0301_Form Material_Report
ADT7301ARMZ	PRODUCTION
ADT7301ARMZ-REEL7	PRODUCTION
ADT7301ARTZ-500RL7	PRODUCTION
ADT7301ARTZ-REEL7	PRODUCTION
Sep 5, 2011 - 11_0084 ADT7301 and ADT7302 mask revision
		PCN11_0084_Form Material_Report Test Correlation Report
ADT7301ARMZ	PRODUCTION
ADT7301ARMZ-REEL7	PRODUCTION
ADT7301ARTZ-500RL7	PRODUCTION
ADT7301ARTZ-REEL7	PRODUCTION
Dec 16, 2009 - 09_0252 ADT7301 and ADT7302 Metal Mask Edit and Datasheet Correction
		Material_Report PCN09_0252_Form
ADT7301ARMZ	PRODUCTION
ADT7301ARMZ-REEL7	PRODUCTION
ADT7301ARTZ-500RL7	PRODUCTION
ADT7301ARTZ-REEL7	PRODUCTION
Oct 10, 2008 - 08_0058 Wafer Fab transfer from 6" C5 Analog Devices, Ireland to 8" C5 TSMC, Taiwan
		08_0058RevA_PL Form Material_Report RQR03610A
ADT7301ARMZ	PRODUCTION
ADT7301ARMZ-REEL7	PRODUCTION
ADT7301ARTZ-500RL7	PRODUCTION
Aug 16, 2017 - 16_0291 CANCELLED: Addition of Amkor Philippines as Alternate Assembly Site for 5L, 6L and 8L SOT23 Chip-On-Lead Packages
		PCN16_0291_Form Material_Report Detailed Change Description Qualification Results Summary
ADT7301ARTZ-500RL7	PRODUCTION
ADT7301ARTZ-REEL7	PRODUCTION
Feb 4, 2010 - 10_0009 Halogen Free Material Change for SOT_23 Products
		Material_Report PCN10_0009_Form SOT23 Qualification Data
ADT7301ARTZ-500RL7	PRODUCTION
ADT7301ARTZ-REEL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
ADT7311	RECOMMENDED FOR NEW DESIGNS	Automotive, ±0.5°C Accurate, 16-Bit Digital SPI Temperature Sensor
ADT7312	RECOMMENDED FOR NEW DESIGNS	Automotive, ±1°C Accurate, 16-Bit, 175°C Digital SPI Temperature Sensor in Die Form
ADT7320	RECOMMENDED FOR NEW DESIGNS	±0.25°C Accurate, 16-Bit Digital SPI Temperature Sensor

Tools & Simulations

IBIS Model 1

ADT7301 IBIS Model

Evaluation Kits

ADT7301 Evaluation Board

Buy Now View Details

Product Details

The ADT7301 evaluation board allows the ADT7301 digital temperature sensor to be quickly and easily evaluated using a PC. Using the evaluation board and its accompanying software, the ADT7301 evaluation board can be interfaced to a PC through its USB connection. The drivers will work on 32-bit Windows 7 machines.

Please note: This Evaluation software does not run on Windows 8 or Windows 10 (USB driver is non-compliant with OS >Windows 7).
