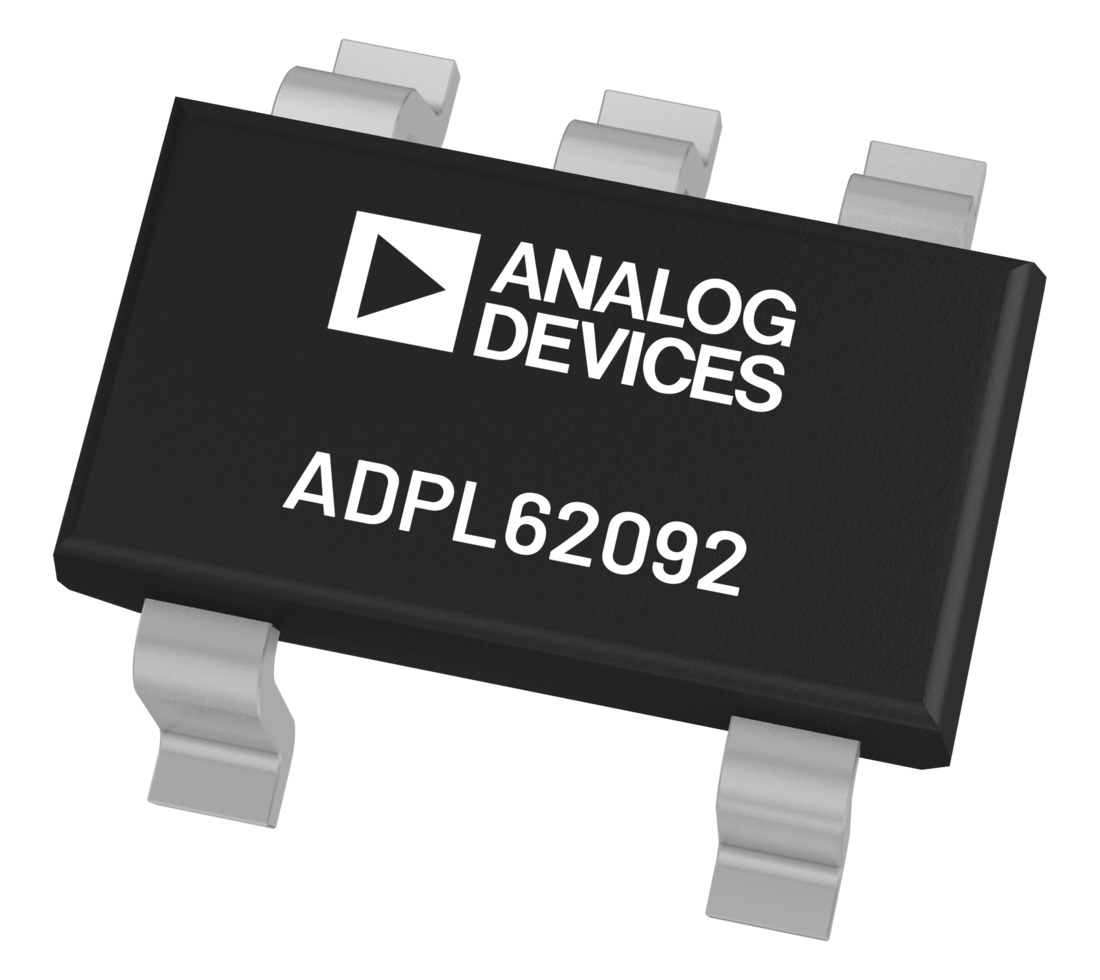

Low-Power Supervisory Circuit with Manual Reset and Watchdog Timer in 5-Lead SOT-23
- Part Models
- 8
- 1ku List Price
- Starting From $0.75
Viewing:
Overview
- Low Supply Current: 5μA (typ), 6.8μA (max) at 3.6V Over Temperature (TA = +125°C)
- Factory-Set Reset Threshold Options from 1V to 5V in 50mV/100mV Increments
- Watchdog Timer Capability
- Manual Reset Input
- Guaranteed Reset Valid to VCC ≥ 1V
- Open-Drain Reset Output
- Power Supply Transient Immunity
- -40°C to +125°C Operating Temperature Range
The ADPL62092 is a supervisory circuit that monitors voltages from 1.1V to 5V using a factory-set reset threshold. It offers a watchdog timer and manual reset capability.
The ADPL62092 features an open-drain, active-low reset output. The reset output asserts and remains asserted for the reset timeout period after the monitored voltage exceeds its threshold.
The ADPL62092 is available in 5-pin SOT23 package. It can operate over the -40°C to +125°C temperature range.
