ADPL62083

RECOMMENDED FOR NEW DESIGNS

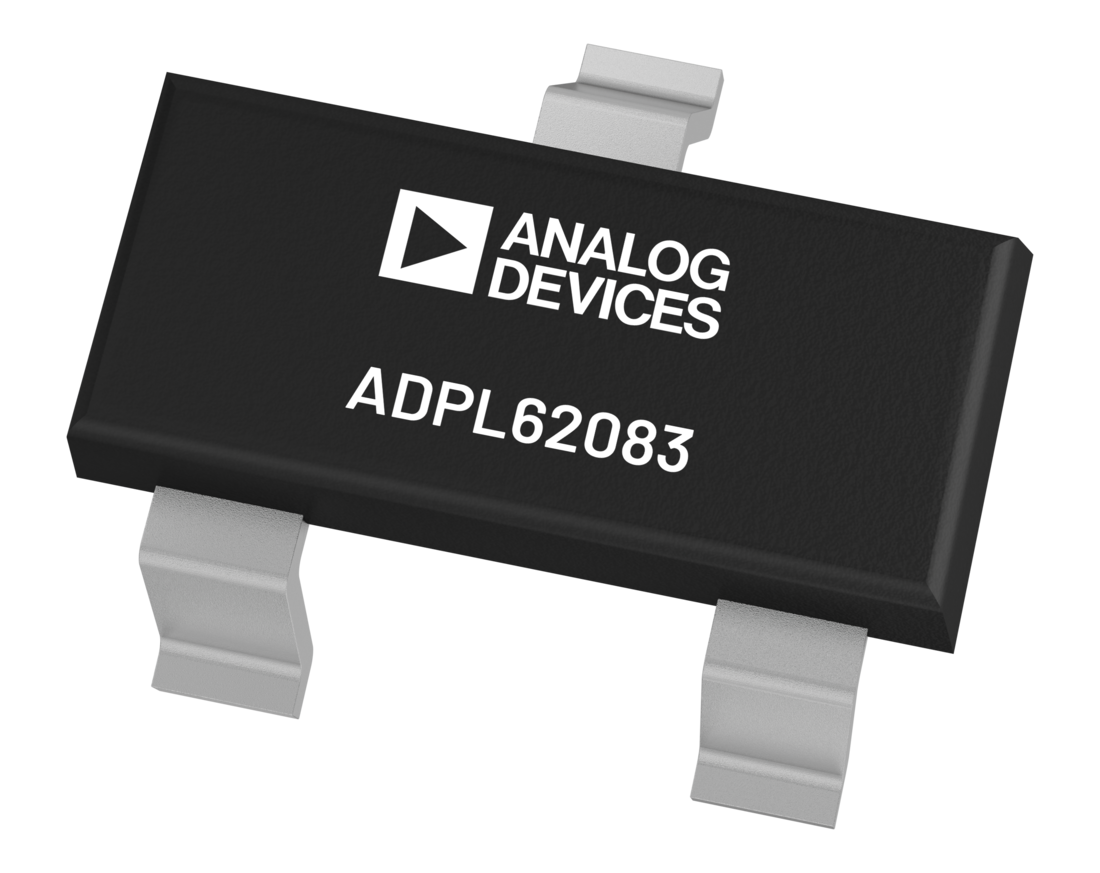

Low-Power, Supervisory Circuit in 3-Lead SOT23

Low-Power Supervisory Circuit in 3-Lead SOT-23

Data Sheet (Rev. 0) Product Selection Table

Part Models: 10
1ku List Price: Starting From $0.63

Viewing:

Part Details

Low Supply Current: 5μA (typ), 6.8μA (max) at 3.6V Over Temperature (+125°C)
Factory-Set Reset Threshold Options from 1.02V to 4.8V in 50mV/100mV Increments
Guaranteed Reset Valid to V_CC ≥ 1V
Open-Drain Reset Output
Power-Supply Transient Immunity
-40°C to +125°C Operating Temperature Range

Part Models: 10
1ku List Price: Starting From $0.63

Documentation

Data Sheet 1

ADPL62083: Low-Power, Supervisory Circuit in 3-Lead SOT23 Data Sheet (Rev.0) 01/24/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADPL62083UR16N+	3-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADPL62083UR16N+T	3-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADPL62083UR29H+	3-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADPL62083UR29H+T	3-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADPL62083UR30O+	3-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADPL62083UR30O+T	3-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADPL62083UR31O+	3-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADPL62083UR31O+T	3-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADPL62083UR44Q+	3-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADPL62083UR44Q+T	3-SOT_23-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
