Overview

Features and Benefits

  • Multifunction photometric front end
  • Fully integrated AFE, ADC, LED drivers, and timing core
  • Usable in a broad range of optical measurement applications, including photoplethysmography
  • Enables best-in-class ambient light rejection capability without the need for photodiode optical filters
  • Three 8 mA to 250 mA LED drivers
  • Separate data registers for each LED//photodiode combination
  • 1 to 8 optical inputs
  • Flexible, multiple, short LED pulses per optical sample
  • 20-bit burst accumulator enabling 20 bits per sample period
  • See data sheet for additional features

    • Product Details

    The ADPD103 is a highly efficient photometric front end with an integrated 14-bit analog-to-digital converter (ADC) and a 20-bit burst accumulator that works in concert with flexible light emitting diode (LED) drivers. It is designed to stimulate an LED and measure the corresponding optical return signal. The data output and functional configuration occur over a 1.8 V I2C interface. The control circuitry includes flexible LED signaling and synchronous detection.


    The analog front end (AFE) features best-in-class rejection of signal offset and corruption due to modulated interference commonly caused by ambient light.


    Couple the ADPD103 with a low capacitance photodiode of <100 pF for optimal performance. The ADPD103 can be used with any LED.


    Aplications

    • Body worn health and fitness monitors, for example, heart rate monitoring
    • Clinical measurements, for example, SpO2
    • Industrial monitoring
    • Background light measurements

    Product Categories

    Comparable Parts Click to see all in Parametric Search

    Product Lifecycle icon-not-recommended Not Recommended for New Designs

    This designates products ADI does not recommend broadly for new designs.

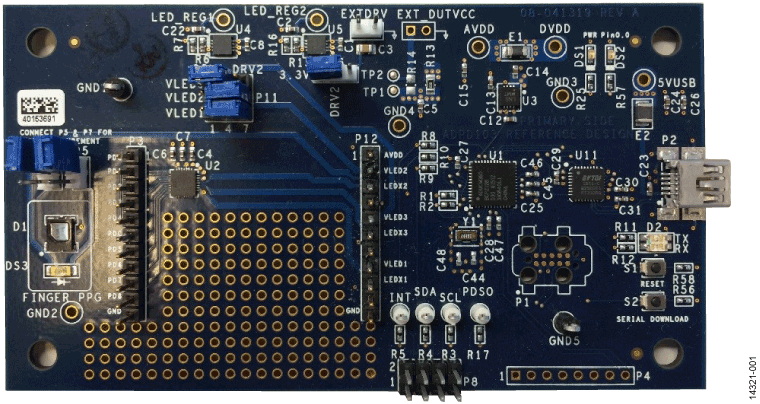

    Evaluation Kits (1)

    Documentation & Resources

  • View All (8)
  • Data Sheets (1)
  • User Guides (1)
  • Videos (4)
  • Technical Articles (1)
  • Webcasts (1)
    • Document Type

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    ADPD103BCBZRL7 Material Declaration Reliability Data 16-Ball WLCSP (1.4mm x 2.46mm)
    ADPD103BCPZ Material Declaration Reliability Data 28-Lead LFCSP (4mm x 4mm w/ EP)
    ADPD103BCPZRL Material Declaration Reliability Data 28-Lead LFCSP (4mm x 4mm w/ EP)
