Features and Benefits
- Charge pump with automatic gain selection of 1×, 1.5×, and 2× for maximum efficiency
- 7 independent, programmable LED drivers
- 7 drivers capable of 30 mA (typical)
- 1 driver also capable of 60 mA (typical)
- Programmable maximum current limit (128 levels)
- Standby mode for <1 μA current consumption
- 16 programmable fade in and fade out times
- 0.1 sec to 5.5 sec
- Choose from linear, square, or cubic rates
- Fading override
- I2C-compatible interface for all programming
- Dedicated reset pin and built-in power-on reset (POR)
- Short-circuit, overvoltage, and overtemperature protection
- Internal soft start to limit inrush currents
- Input-to-output isolation during faults or shutdown
- Operation down to VIN = 2.5 V with undervoltage lockout (UVLO) at VIN = 2.0 V
- Available in a small 20-ball, 2.15 mm × 2.36 mm × 0.6 mm WLCSP or a 20-lead, 4 mm × 4 mm × 0.75 mm LFCSP
The ADP8861 provides a powerful charge pump driver with independent control of up to seven LEDs. These seven LEDs can be independently driven up to 30 mA (typical). The seventh LED can also be driven to 60 mA (typical). All LEDs are pro-grammable for maximum current and fade in/out times via the I2C interface. These LEDs can also be combined into groups to reduce the processor instructions during fade in/out.
This entire configuration is driven by a two-capacitor charge pump with gains of 1×, 1.5×, and 2×. The charge pump is capable of driving a maximum IOUT of 240 mA from a supply of 2.5 V to 5.5 V. A full suite of safety features, including short-circuit, overvoltage, and overtemperature protection, allows easy implementation of a safe and robust design. Additionally, input inrush currents are limited via an integrated soft start combined with controlled input-to-output isolation.
- Mobile display backlighting
- Mobile phone keypad backlighting
- Dual RGB backlighting
- LED indication
- General backlighting of small format displays
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

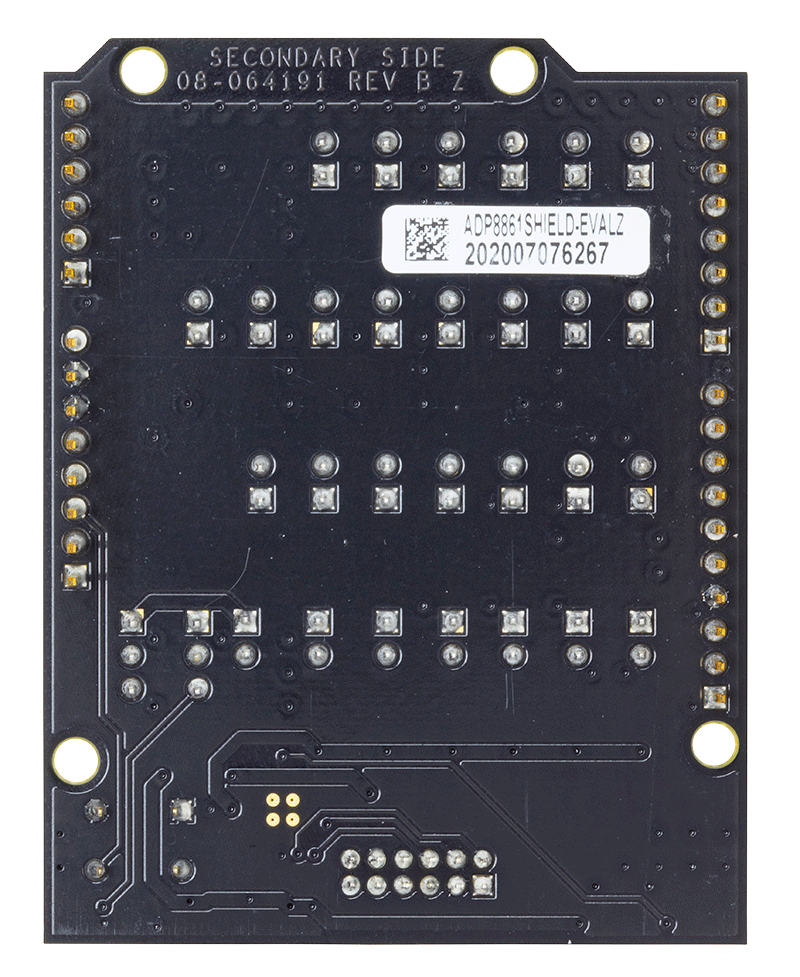

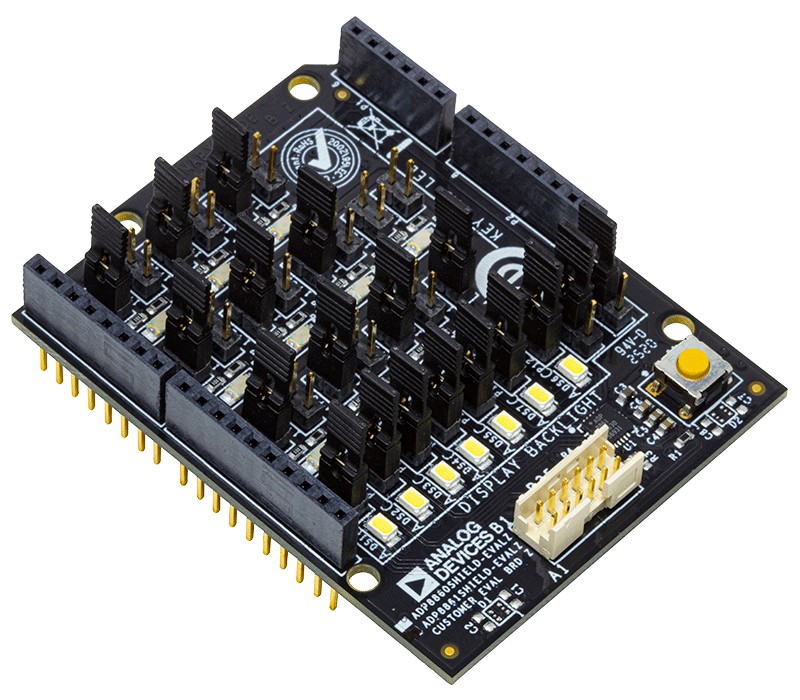

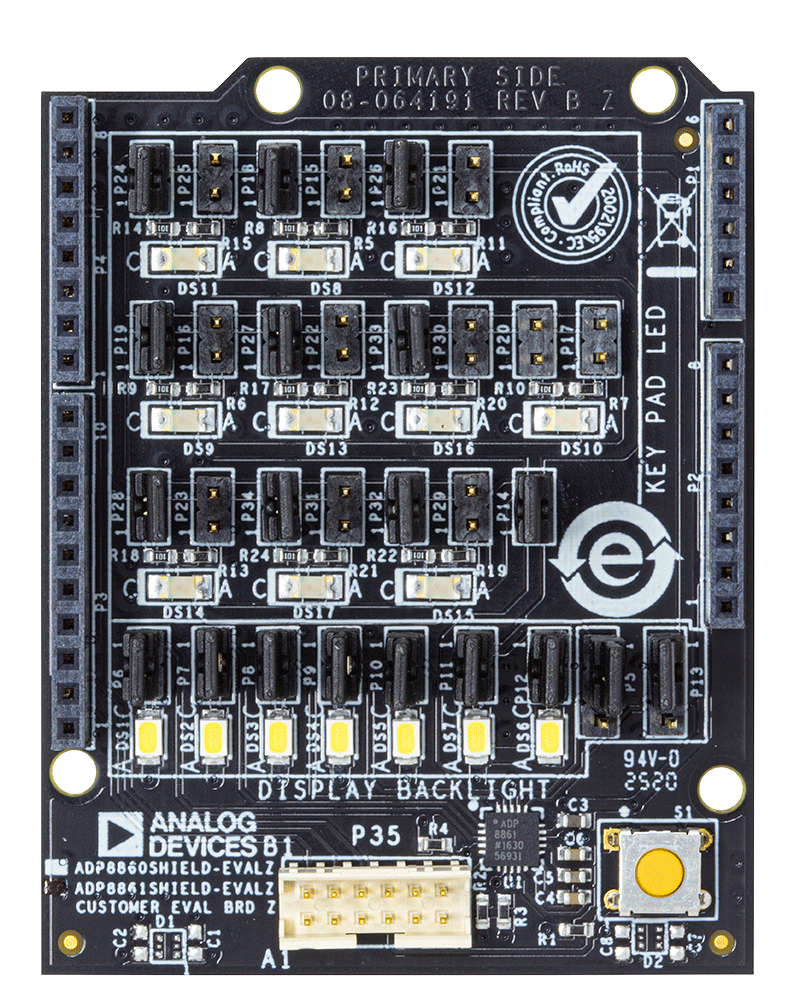

Evaluation Kits (1)
This describes the functionality of the Analog Devices, Inc., ADP8860 and provides software development guidelines. The ADP8860 communicates with an external processor using an I2C interface and an interrupt line (nINT). The processor sends initialization and activation commands to the ADP8860, which acts as a slave device.
The interrupt line, from the ADP8860 to the processor, is used to indicate a failure condition, such as a thermal shutdown or an overvoltage and LED/output short circuit, or to indicate a light level threshold has been crossed. All interrupt sources are maskable. Refer to Figure 1 for a typical application diagram. Figure 2 shows a schematic with keypad light control.
The interrupt line is active low; each interrupt source has an individual masking bit. The processor can reset the ADP8860 anytime by pulling the nRST line low; this operation reinitializes the ADP8860 at the default state and places the device in standby mode.
