Features and Benefits

  • Wide input voltage range: 4.0 V to 15 V
  • High efficiency architecture
  • Up to 2 MHz switching frequency
  • 2 low quiescent current keep-alive LDO regulators
    LDO1 regulator: 400 mA maximum
    LDO2 regulator: 300 mA maximum
  • Control circuit
    Charge pump for internal switching driver power supply
    I2C-programmable output levels and power sequencing

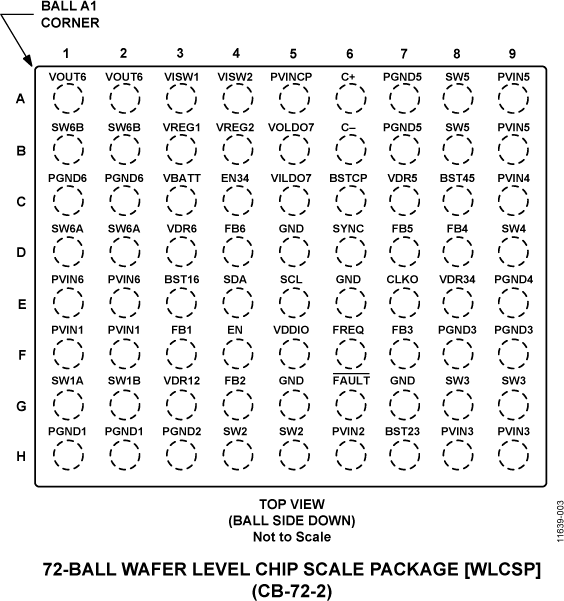

  • Package: 72-ball, 4.5 mm × 4.0 mm × 0.6 mm WLCSP (0.5 mm pitch)
  • 6 synchronous rectification dc-to-dc converters
    Channel 1 buck regulator: 3 A maximum
    Channel 2 buck regulator: 1.15 A maximum
    Channel 3 buck regulator: 1.5 A maximum
    Channel 4 buck regulator: 0.8 A maximum
    Channel 5 buck regulator: 2 A maximum
    Channel 6 configurable buck or buck boost regulator
      2 A maximum for buck regulator configuration
      1.5 A maximum for buck boost regulator
    Channel 7 high voltage, high performance LDO regulator: 30 mA maximum

Product Details

The ADP5080 is a fully integrated, high efficiency power solution for multicell lithium ion battery applications. The device can connect directly to the battery, which eliminates the need for preregulators and, therefore, increases the battery life of the system.

The ADP5080 integrates two keep-alive LDO regulators, five synchronous buck regulators, a configurable four-switch buck boost regulator, and a high voltage LDO regulator. The ADP5080 is a highly integrated power solution that incorporates all power MOSFETs, feedback loop compensation, voltage setting resistor dividers, and discharge switches, as well as a charge pump to generate a global bootstrap voltage.

All these features help to minimize the number of external components and PCB space required, providing significant advantages for portable applications. The switching frequency is selectable on each channel from 750 kHz to 2 MHz.

Key functions for power applications, such as soft start, selectable preset output voltage, and flexible power-up and power-down sequences, are provided on chip and are programmable via the I2C interface with fused factory defaults. The ADP5080 is available in a 72-ball WLCSP 0.5 mm pitch package.


  • DSLR cameras
  • Non-reflex (mirrorless) cameras
  • Portable instrumentation

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

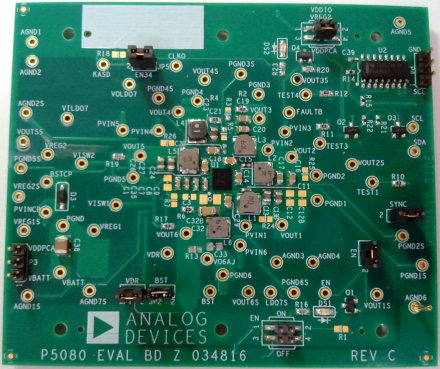

Evaluation Kits (1)

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
ADP50800037CBZR Material Declaration Reliability Data 72-Ball WLCSP (4.46mm x 3.96mm)
ADP5080ACBZ-1-RL Material Declaration Reliability Data 72-Ball WLCSP (4.46mm x 3.96mm)
