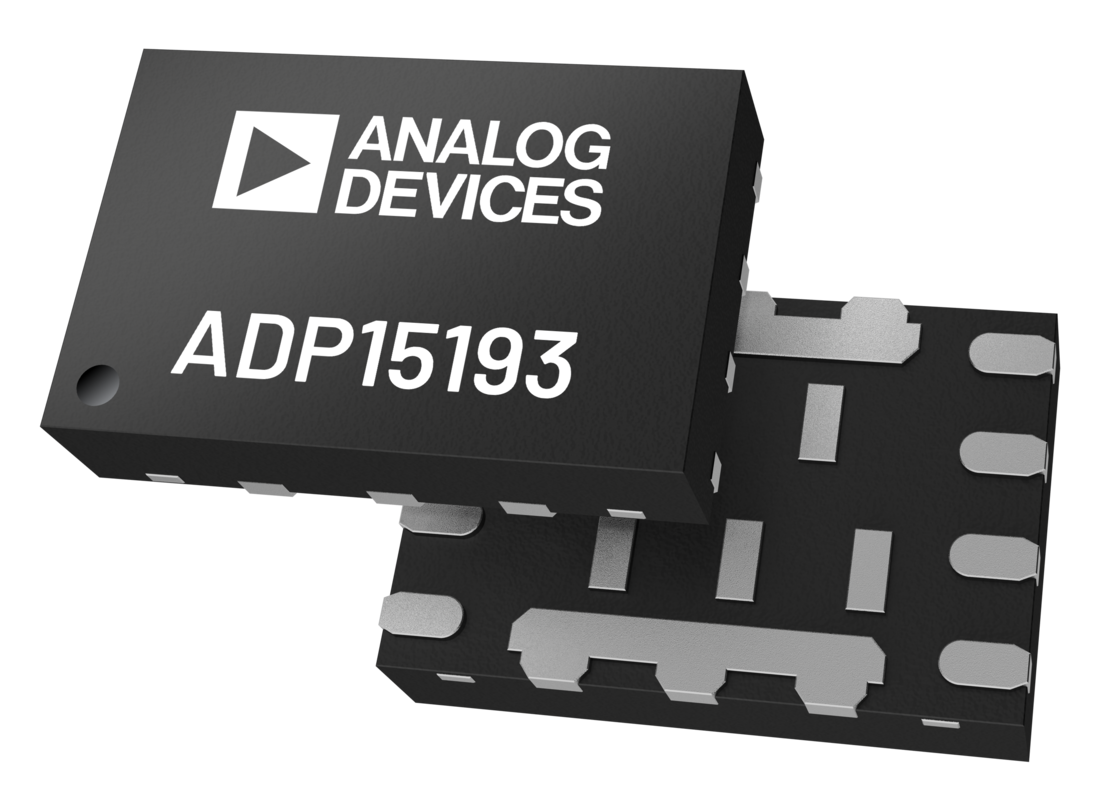

ADP15193

RECOMMENDED FOR NEW DESIGNS

2.6V to 5.5V, 20A Hot-Swap E-Fuse with Current Report Output

Data Sheet (Rev. 1) Product Selection Table

Part Models: 6
1ku List Price: Starting From $1.12

Viewing:

Overview

Integration Reduces Solution Size

Integrated 1mΩ Internal Power MOSFET
Adjustable Undervoltage Lockout
Current Reporting without External R_SENSE
Quick Output Discharge
Power-Good Output

Flexibility Enables Use in Many Unique Designs

2.6V to 5.5V Operating Voltage Range
Adjustable Slew Rate Control
Adjustable Circuit Breaker Current Threshold
Latchoff or Automatic Retry after Fault

Safety Features Ensure Accurate, Robust Protection

±5% Circuit Breaker Threshold Accuracy
dI/dt Control at Startup
Output Precharge Detection
Thermal Shutdown

Part Models: 6
1ku List Price: Starting From $1.12

Documentation

Data Sheet 1

ADP15193: 2.6V to 5.5V, 20A Hot-Swap E-Fuse with Current Report Output Data Sheet (Rev.1) 06/30/2026

User Guide 1

ADP15193EVKIT User Guide: Evaluating the ADP15193 (Rev.2) 06/30/2026

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADP15193AAFB+	F1023F+1	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADP15193AAFB+T	F1023F+1	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADP15193BAFB+	F1023F+1	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADP15193BAFB+T	F1023F+1	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADP15193DAFB+	F1023F+1	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADP15193DAFB+T	F1023F+1	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

ADP15193A
ADP15193B
ADP15193C
ADP15193D

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluating the ADP15193

Buy Now View Details

Features and Benefits

2.6V to 5.5V operating voltage range
Up to 20A current capability
Integrated 1mΩ power MOSFET
Current reporting without external sense resistor
Adjustable slew rate control
Configurable undervoltage lockout

Output pre-charge detection
Quick output discharge
Power good output
Thermal shutdown
Proven PCB layout
Fully assembled and tested

Product Details

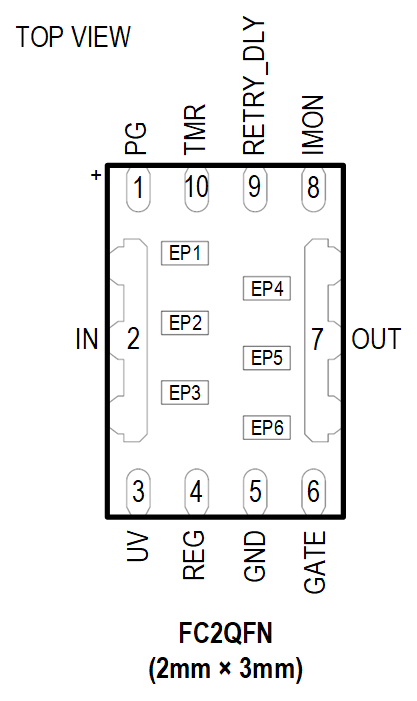

The EVAL-ADP15193 provides a proven design to evaluate the ADP15193 hot-swap e-fuse with an integrated 20A MOSFET. The EVAL-ADP15193 kit uses the ADP15193 in a 2mm x 3mm FC2QFN.

Resources

ADP15193EVKIT Gerber Files
1/1/0001

ADP15193EVKIT User Guide: Evaluating the ADP15193 (Rev.2)
6/30/2026
