  4. ADN8102

Data Sheet Rev. C
PDF

Overview

Features and Benefits

  • Optimized for dc to 3.75 Gbps data
  • Programmable input equalization
    Up to 22 dB boost at 1.875 GHz
    Compensates up to 30 m of CX4 cable up to 3.75 Gbps
    Compensates up to 40 in of FR4 up to 3.75 Gbps
  • Programmable output pre-emphasis/de-emphasis
    Up to 12 dB boost at 1.875 GHz (3.75 Gbps)
    Compensates up to 15 m of CX4 cable up to 3.75 Gbps
    Compensates up to 40 in of FR4 up to 3.75 Gbps
  • Flexible 1.8 V to 3.3 V core supply
  • Per lane P/N pair inversion for routing ease
  • Low power: 125 mW/channel up to 3.75 Gbps
  • DC- or ac-coupled differential CML inputs
  • Programmable CML output levels
  • 50 Ω on-chip termination
  • Temperature range operation: −40°C to +85°C
  • Supports 8b10b, scrambled, or uncoded NRZ data
  • I2C control interface

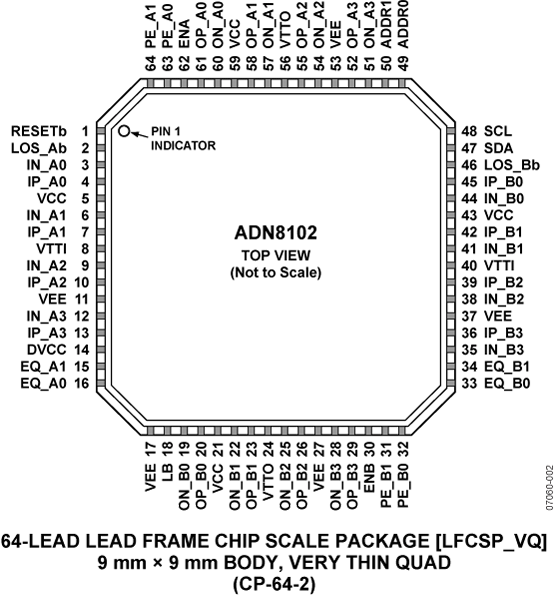

  • 64-lead LFSCP (QFN) package

Product Details

The ADN8102 is a quad bidirectional CX4 cable/backplane equalizer with eight differential PECL-/CML-compatible inputs with programmable equalization and eight differential CML outputs with programmable output levels and pre-emphasis or de-emphasis. The operation of this device is optimized for NRZ data at rates up to 3.75 Gbps.

The receive inputs provide programmable equalization to compensate for up to 30 meters of CX4 cable (24 AWG) or 40 inches of FR4, and programmable pre-emphasis to compensate for up to 15 meters of CX4 cable (24 AWG) or 40 inches of FR4 at 3.75 Gbps. Each channel also provides programmable loss-of-signal detection and loopback capability for system testing and debugging.

The ADN8102 is controlled through toggle pins, an I2C® control interface that provides more flexible control, or a combination of both. Every channel implements an asynchronous path supporting dc to 3.75 Gbps NRZ data, fully independent of other channels. The ADN8102 has low latency and very low channel-to-channel skew.

The main application for the ADN8102 is to support switching in chassis-to-chassis applications over CX4 or InfiniBand® cables.

The ADN8102 is packaged in a 9 mm × 9 mm 64-lead LFCSP (QFN) package and operates from −40°C to +85°C.

Applications
  • 10GBase-CX4
  • HiGig™
  • InfiniBand
  • 1×, 2× Fibre Channel
  • XAUI
  • Gigabit Ethernet over backplane or cable
  • CPRI™
  • 50 Ω cables

    • Data Sheet, Rev. A, 8/08

    Product Categories

    Comparable Parts Click to see all in Parametric Search

    Product Lifecycle icon-not-recommended Not Recommended for New Designs

    This designates products ADI does not recommend broadly for new designs.

    Evaluation Kits (1)

    Documentation & Resources

  • View All (1)
  • Data Sheet (1)
    • Document Type

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models

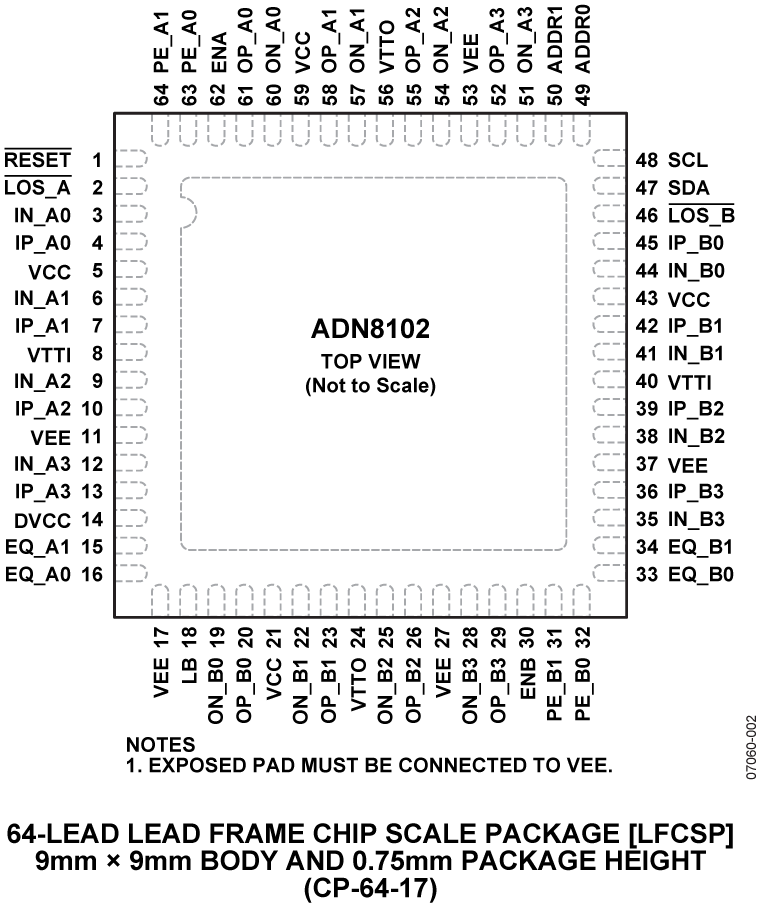

    ADN8102ACPZ Material Declaration Reliability Data 64-Lead LFCSP (9mm x 9mm x 0.75mm w/ EP)
    ADN8102ACPZ-R7 Material Declaration Reliability Data 64-Lead LFCSP (9mm x 9mm x 0.75mm w/ EP)
