Overview
Features and Benefits
- DC to 4.25 Gbps per port NRZ data rate
- Adjustable receive equalization
- 3 dB, 6 dB, or 12 dB boost
- Compensates over 40 inches of FR4 at 4.25 Gbps
- Adjustable transmit preemphasis/deemphasis
- Programmable boost and output level
- Compensates over 40 inches of FR4 at 4.25 Gbps
- Low Power
- 105 mW per channel at 2.5 V (400 mVP-P differential output level swing)
- 40 × 40, fully differential, nonblocking array
- Double rank connection programming with dual maps
- Low jitter, typically <25 ps
- Flexible 2.5 V to 3.3 V supply range
- DC- or ac-coupled differential PECL/CML inputs
- Differential CML outputs
- Per-lane polarity inversion for routing ease
- 50 Ω on-chip I/O termination with disable feature
- Supports 8b10b, scrambled or uncoded NRZ data
- Serial (I2C slave or SPI) control interface
- Parallel control interface
Product Details
The ADN4605 is a 40 × 40 asynchronous, protocol agnostic, digital crosspoint switch, with 40 differential PECL/CML-compatible inputs and 40 differential programmable CML outputs.
The ADN4605 is optimized for NRZ signaling with data rates of up to 4.25 Gbps per port. Each port offers adjustable levels of input equalization, programmable output swing, and output preemphasis/deemphasis.
The ADN4605 nonblocking switch core implements a 40 × 40 crossbar and supports independent channel switching through serial and parallel control interfaces. The ADN4605 has low latency and very low channel-to-channel skew.
An I2C, SPI, or parallel interface is used to communicate with the device for control of connectivity and other features.
The ADN4605 is assembled in a 35 mm × 35 mm, 352 BGA package and operates over a temperature range of −40°C to +85°C.
APPLICATIONS
- Digital video (HDMI, DVI, DisplayPort, 3G/HD/SD-SDI)
- Fiber optic network switching
- High-speed serial backplane routing to OC-48 with FEC
- XAUI, 4x Fibre Channel, Infiniband®, and GbE over backplane
- Data storage networks
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|

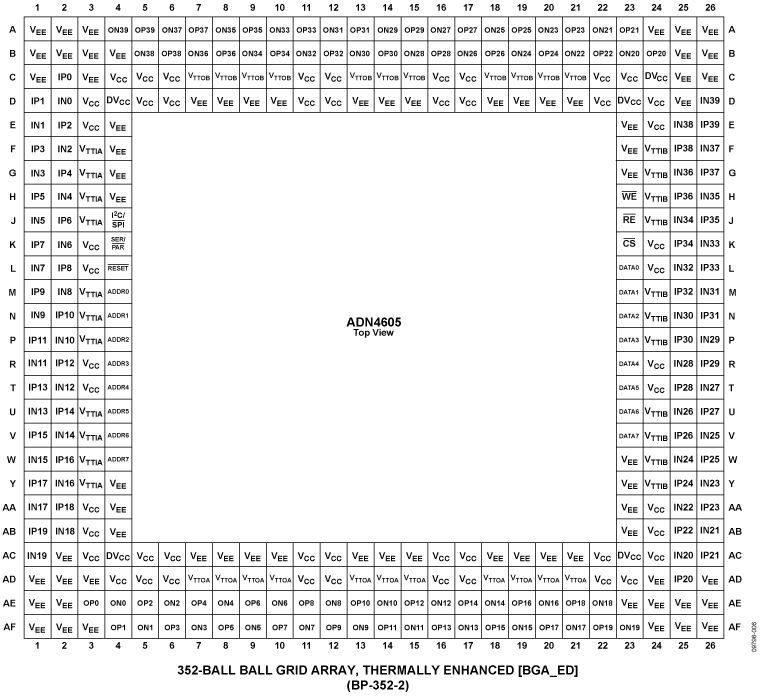

| ADN4605ABPZ | Material Declaration | Reliability Data | 352-Ball BGA-ED (35mm x 35mm x 1.9mm) | |
| Wafer Fabrication Data |
