ADN2817
Continuous Rate 10 Mbps to 2.7 Gbps Clock and Data Recovery IC (With High Sensitivity Limiting Amp)
Show More
Info: :
PRODUCTION
Info: :
PRODUCTION
Part Details
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Part Models
3
1ku List Price
Features
- Serial data input: 10 Mbps to 2.7 Gbps
- Exceeds ITU-T jitter specifications
- Integrated limiting amplifier
- 5 mV p-p sensitivity (ADN2817 only)
- Adjustable slice level: ±100 mV (ADN2817 only)
- Proprietary dual-loop clock recovery architecture
- Programmable LOS detect (ADN2817 only)
- Integrated PRBS generator and detector
- No reference clock required
- Loss of lock indicator
- Supports double data rate
- BERMON or sample phase adjust options
- Rate selectivity without the use of a reference clock
- I2C interface to access optional features
- Single-supply operation: 3.3 V
- Low power
- 5 mm × 5 mm 32-lead LFCSP
Additional Details
The ADN2817/ADN2818 provide the receiver functions of quantization, signal level detect, and clock and data recovery for continuous data rates from 10 Mbps to 2.7 Gbps. The ADN2817/ ADN2818 automatically lock to all data rates without the need for an external reference clock or programming. All SONET jitter requirements are exceeded, including jitter transfer, jitter generation, and jitter tolerance. All specifications are quoted for −40°C to +85°C ambient temperature, unless otherwise noted.
SONET OC-1, OC-3, OC-12, OC-48, and all associated FEC rates
Fibre Channel, 2× Fibre Channel, GbE, HDTV, and others
WDM transponders
Regenerators/repeaters
Test equipment
This device, together with a PIN diode and a TIA preamplifier, can implement a highly integrated, low cost, and low power fiber optic receiver.
The ADN2817/ADN2818 have many optional features available through an I2C interface. For example, the user can read back the data rate onto which the ADN2817 or ADN2818 is locked, or the user can set the device to lock only to one particular data rate if provisioning of data rates is required. A BERMON circuit provides an estimate of the received bit error rate (BER) without interruption of the data. Alternatively, the user can adjust the data sampling phase to optimize the received BER.
The ADN2817/ADN2818 are available in a compact 5 mm × 5 mm, 32-lead, lead frame chip scale package.
Applications
Data Sheet, Rev. A, 8/08
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Part Models
3
1ku List Price
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADN2817
Documentation
4
Filters
1 Applied
All
All
Data Sheet
1
Application Note
2
UPDATED 10/03/2003
English
UPDATED 10/03/2003
Chinese
ADN2812 评估板 (Rev.AN-657)
690 kB
Frequently Asked Question
1
HTML
UPDATED 03/03/2022
English
There are no results matching this criteria. Try resetting your filters or searching for a different term
Documentation
Documentation
Technical Documents
3
Data Sheet 1
Application Note 1
Frequently Asked Question 1
Design Resources 3
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
ADN2817ACPZ | 32-Lead LFCSP (5mm x 5mm x 0.85mm w/ EP) |
|
|
ADN2817ACPZ-RL | 32-Lead LFCSP (5mm x 5mm x 0.85mm w/ EP) |
|
|
ADN2817ACPZ-RL7 | 32-Lead LFCSP (5mm x 5mm x 0.85mm w/ EP) |
|
- ADN2817ACPZ
- Pin/Package Drawing
- 32-Lead LFCSP (5mm x 5mm x 0.85mm w/ EP)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- ADN2817ACPZ-RL
- Pin/Package Drawing
- 32-Lead LFCSP (5mm x 5mm x 0.85mm w/ EP)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- ADN2817ACPZ-RL7
- Pin/Package Drawing
- 32-Lead LFCSP (5mm x 5mm x 0.85mm w/ EP)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
PCN/PDN Information
Filter by Model
Part Models
Product Lifecycle
PCN
Nov 10, 2014
- 14_0047
Conversion of 5x5mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.
ADN2817ACPZ
PRODUCTION
ADN2817ACPZ-RL
PRODUCTION
ADN2817ACPZ-RL7
PRODUCTION
Feb 15, 2010
- 07_0061
LFCSP Package Manufacturing Line Transfer from Amkor Korea to Amkor PRC
ADN2817ACPZ
PRODUCTION
ADN2817ACPZ-RL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Nov 10, 2014
- 14_0047
Conversion of 5x5mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.
ADN2817ACPZ
PRODUCTION
ADN2817ACPZ-RL
PRODUCTION
ADN2817ACPZ-RL7
PRODUCTION
Feb 15, 2010
- 07_0061
LFCSP Package Manufacturing Line Transfer from Amkor Korea to Amkor PRC
ADN2817ACPZ
PRODUCTION
ADN2817ACPZ-RL7
PRODUCTION
Software & Part Ecosystem
Software & Part Ecosystem
Evaluation Kit
Evaluation Kits 1
EVAL-ADN2817

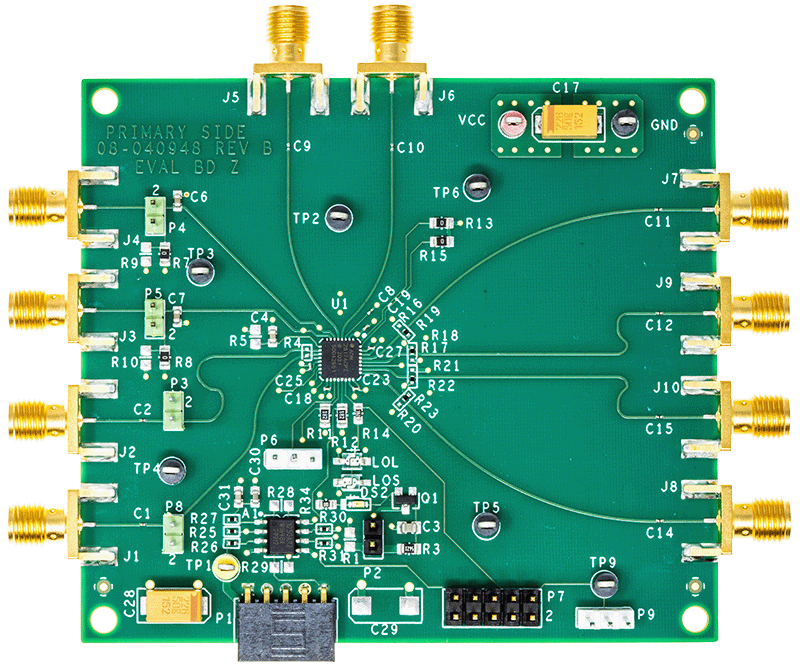

ADN2817 Evaluation Board
Product Detail
This page contains ordering information for evaluating this product.
