ADM869L

2 A, High-Side P-Channel Switch with Current Limit and Thermal Shutdown

Show More showmore-icon

alert : Obsolete tooltip
alert : Obsolete tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

Features
  • 2 A Load Current
  • 45 mΩ On Resistance
  • User-Settable Current Limit
  • 12 µA Typical Quiescent Current
  • 10 nA Typical Shutdown Current
  • 40 nA Typical Switch Off Leakage
  • Short-Circuit Protection
  • Thermal Shutdown
  • FAULT Output
  • Small, 16-Lead QSOP Package
Additional Details
show more Icon

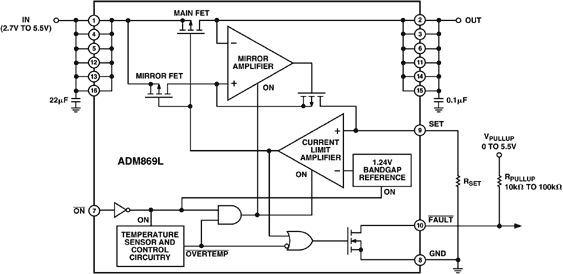

The ADM869L is a logic controlled P-channel switch with low on resistance, capable of sourcing up to 2 A from supply voltages between 2.7 V and 5.5 V. A user-settable current limit allows the trip current to be set between 400 mA and 2 A with an accuracy of ±21%. This allows the system power supply to be protected against short circuits and surge currents in peripheral loads powered via the ADM869L. Over-current and over-temperature conditions are signalled by a FAULT output.

The ADM869L also offers low quiescent current of typically 12 µA and shutdown currently of typically 10 nA.
