ADM8699
ADM8699
LAST TIME BUYMicroprocessor Supervisory Circuit with Watchdog Feature, 4.65V Threshold Voltage, Low Supply Current and Active Low Reset Output. Upgrade for ADM699
- Part Models
- 2
- 1ku List Price
- Starting From $4.21
Viewing:
Overview
- Superior Upgrade for ADM698/ADM699, MAX698/MAX699
- Guaranteed RESET Assertion with VCC = 1 V
- Low 70 µA Supply Current
- Precision 4.65 V Voltage Monitor
- Power OK/Reset Time Delay
- Power OK/Reset Time Delay
- Watchdog Timer
- Minimum Component Count
- Performance Specified over Temperature
- ADM8698 is obsolete
The ADM8698 / ADM8699 supervisory circuits provide power supply monitoring and watchdog timing for microprocessor systems.
The ADM8698 monitors the 5 V VCC power supply and generates a RESET pulse during power up, power down and during low voltage “Brown Out” conditions. The RESET output is guaranteed to be functional (logic low) with VCC as low as 1 V.
The ADM8699 features an identical monitoring circuit as in the ADM8698, plus an additional watchdog timer input to monitor microprocessor activity. The RESET output is forced low if the watchdog input is not toggled within the 1 second watchdog timeout period.

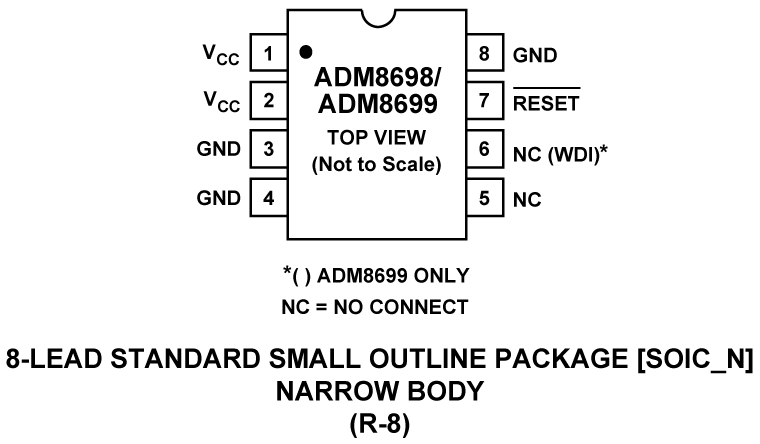

Both parts are available in 8-pin plastic DIP/SOIC and 16-lead SOIC packages. The 16-lead SOIC contains additional outputs RESET (without inversion) and Watchdog Output WDO (ADM8699 only).
APPLICATIONS
- Microprocessor Systems
- Computers
- Controllers
- Intelligent Instruments
- Automotive Systems
- Critical µP Power Monitoring
- ADM8698 is obsolete
Documentation
Product Selection Guide 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADM8699ARNZ | 8-Lead SOIC | ||
| ADM8699ARNZ-REEL | 8-Lead SOIC |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Jul 29, 2026 - 26_0046 Discontinuation of Parts Manufactured in TSMC Fab 2 and 5 in Hsinchu, Taiwan. |
||
| ADM8699ARNZ | ||
| ADM8699ARNZ-REEL | ||
This is the most up-to-date revision of the Data Sheet.
