ADM706

3 V, Voltage Monitoring Microprocessor Supervisory Circuit

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.H)
Documentation View All Documentation
LTspice ADM706 - Supervisory Circuits Download 1.37 KB
Part Models 14
1ku List Price Starting From $1.82
Features
  • Guaranteed RESET valid with VCC = 1 V
  • 190 μA quiescent current
  • Precision supply voltage monitor
    • 4.40 V (ADM706/ADM708)
  • 200 ms reset pulse width
  • Debounced TTL/CMOS manual reset input (MR)
  • Independent watchdog timer (ADM705/ADM706)
  • 1.60 sec timeout (ADM705/ADM706)
  • Voltage monitor for power fail or low battery warning
  • Superior upgrade for MAX705 to MAX708

Additional Details
show more Icon

The ADM705/ADM706/ADM707/ADM708 microprocessor supervisory circuits are suitable for monitoring 5 V power supplies/batteries and microprocessor activity.

The ADM705/ADM706 provide power-supply monitoring circuitry that generate a reset output during power-up, powerdown, and brownout conditions. The reset output remains operational with VCC as low as 1 V. Independent watchdog monitoring circuitry is also provided. This is activated if the watchdog input has not been toggled within 1.60 sec.

In addition, there is a 1.25 V threshold detector to warn of power failures, to detect low battery conditions, or to monitor an additional power supply. An active low, debounced manual reset input (MR) is also included.

The ADM705 and ADM706 are identical except for the reset threshold monitor levels, which are 4.65 V and 4.40 V, respectively.

The ADM707 and ADM708 provide a similar functionality to the ADM705 and ADM706 and only differ in that a watchdog timer function is not available. Instead, an active high reset output (RESET) is available as well as the active low reset output (RESET). The ADM707 and ADM708 are identical except for the reset threshold monitor levels, which are 4.65 V and 4.40 V, respectively.

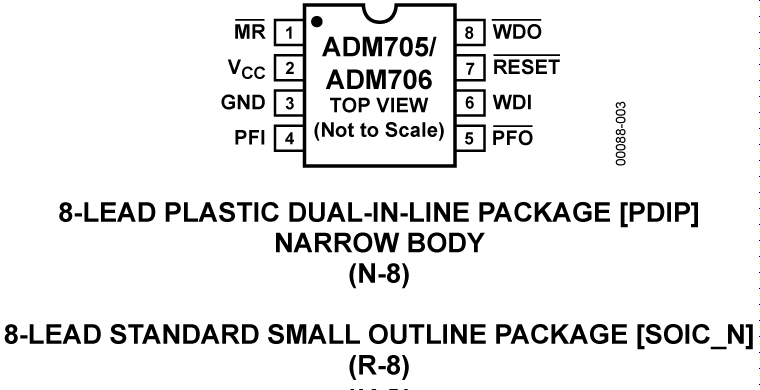

All devices are available in narrow 8-lead PDIP and 8-lead SOIC packages.

Applications

  • Microprocessor systems
  • Computers
  • Controllers
  • Intelligent instruments
  • Critical microprocessor supply monitoring
Show More Arrow image
file View Data Sheet (Rev.H)
Documentation View All Documentation
LTspice ADM706 - Supervisory Circuits Download 1.37 KB
Part Models 14
1ku List Price Starting From $1.82
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADM706

Documentation

3
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

3

PDF Vector

PDF

UPDATED 02/23/2008
English

ADM706P/ADM706R/ADM706S/ADM706T/ADM708R/ADM708S/ADM708T: 3 V, Voltage Monitoring Microprocessor Supervisory Circuits Data Sheet (Rev.E)

Open PDF File

redirect
360.81 K
download

Download PDF

PDF Vector

pdf

UPDATED 11/12/2009
Japanese

ADM706/ADM708: 3V、電圧モニタ、マイクロプロセッサ管理回路 (Rev.C)

Open PDF File

redirect
576 kB
download

Download PDF

PDF Vector

PDF

UPDATED 08/04/2009
English

ADM705/ADM706/ADM707/ADM708: Low Cost Microprocessor Supervisory Circuits Data Sheet (Rev.H)

Open PDF File

redirect
365.04 K
download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADM706ANZ 8-Lead PDIP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM706ARZ 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM706ARZ-REEL 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM706ARZ-REEL7 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM706PARZ 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM706PARZ-REEL 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM706RANZ 8-Lead PDIP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM706RARZ 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM706RARZ-REEL 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM706RARZ-REEL7 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM706SARZ 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM706SARZ-REEL 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM706TARZ 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM706TARZ-REEL 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 19, 2009

- 07_0024

Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad

ADM706ANZ

PRODUCTION

ADM706RANZ

PRODUCTION

Material_Report.csv

xls

Material_Report

Download

pdf

Parts List

external-icon

pdf

PCN07_0024_Form

external-icon

pdf

Qual Data

external-icon

May 20, 2024

- 23_0143

Qualification of an Alternate Wafer Fab Site for 0.5um TSMC CMOS Process

ADM706ARZ

PRODUCTION

ADM706ARZ-REEL

PRODUCTION

ADM706ARZ-REEL7

PRODUCTION

ADM706RARZ

PRODUCTION

ADM706RARZ-REEL

PRODUCTION

ADM706RARZ-REEL7

PRODUCTION

ADM706SARZ

PRODUCTION

ADM706SARZ-REEL

PRODUCTION

ADM706TARZ

PRODUCTION

ADM706TARZ-REEL

PRODUCTION

pdf

PCN23_0143_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

xlsm

Delta Qualification Matrix

Download

pdf

Qualification Results Summary

external-icon

Jul 20, 2012

- 12_0105

Halogen Free Material Change for Select SOIC Narrow and Wide Body Products Assembled at Amkor

ADM706ARZ

PRODUCTION

ADM706ARZ-REEL

PRODUCTION

ADM706ARZ-REEL7

PRODUCTION

ADM706PARZ

PRODUCTION

ADM706PARZ-REEL

PRODUCTION

pdf

PCN12_0105_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Report Summary

external-icon

Jun 30, 2009

- 08_0068

ADM705/ADM706/ADM708 Wafer Fab Process Transfer for SOIC Models

ADM706ARZ

PRODUCTION

ADM706ARZ-REEL

PRODUCTION

ADM706PARZ

PRODUCTION

ADM706PARZ-REEL

PRODUCTION

ADM706RARZ

PRODUCTION

ADM706RARZ-REEL

PRODUCTION

ADM706SARZ

PRODUCTION

ADM706SARZ-REEL

PRODUCTION

ADM706TARZ

PRODUCTION

pdf

Form

external-icon

xls

Material_Report

Download

pdf

RQR04310A

external-icon

Nov 23, 2010

- 10_0004

Halogen Free Material Change for SOIC Narrow Body Products Assembled at Amkor

ADM706RARZ

PRODUCTION

ADM706RARZ-REEL

PRODUCTION

ADM706RARZ-REEL7

PRODUCTION

ADM706SARZ

PRODUCTION

ADM706SARZ-REEL

PRODUCTION

ADM706TARZ

PRODUCTION

ADM706TARZ-REEL

PRODUCTION

pdf

PCN10_0004_Form

external-icon

xls

Material_Report

Download

pdf

ADI0012 Reliability Report

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 19, 2009

- 07_0024

arrow down

Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad

ADM706ANZ

PRODUCTION

ADM706RANZ

PRODUCTION

Material_Report.csv

xls

Material_Report

Download

pdf

Parts List

external-icon

pdf

PCN07_0024_Form

external-icon

pdf

Qual Data

external-icon
May 20, 2024

- 23_0143

arrow down

Qualification of an Alternate Wafer Fab Site for 0.5um TSMC CMOS Process

ADM706ARZ

PRODUCTION

ADM706ARZ-REEL

PRODUCTION

ADM706ARZ-REEL7

PRODUCTION

ADM706RARZ

PRODUCTION

ADM706RARZ-REEL

PRODUCTION

ADM706RARZ-REEL7

PRODUCTION

ADM706SARZ

PRODUCTION

ADM706SARZ-REEL

PRODUCTION

ADM706TARZ

PRODUCTION

ADM706TARZ-REEL

PRODUCTION

pdf

PCN23_0143_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

xlsm

Delta Qualification Matrix

Download

pdf

Qualification Results Summary

external-icon
Jul 20, 2012

- 12_0105

arrow down

Halogen Free Material Change for Select SOIC Narrow and Wide Body Products Assembled at Amkor

ADM706ARZ

PRODUCTION

ADM706ARZ-REEL

PRODUCTION

ADM706ARZ-REEL7

PRODUCTION

ADM706PARZ

PRODUCTION

ADM706PARZ-REEL

PRODUCTION

pdf

PCN12_0105_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Report Summary

external-icon
Jun 30, 2009

- 08_0068

arrow down

ADM705/ADM706/ADM708 Wafer Fab Process Transfer for SOIC Models

ADM706ARZ

PRODUCTION

ADM706ARZ-REEL

PRODUCTION

ADM706PARZ

PRODUCTION

ADM706PARZ-REEL

PRODUCTION

ADM706RARZ

PRODUCTION

ADM706RARZ-REEL

PRODUCTION

ADM706SARZ

PRODUCTION

ADM706SARZ-REEL

PRODUCTION

ADM706TARZ

PRODUCTION

pdf

Form

external-icon

xls

Material_Report

Download

pdf

RQR04310A

external-icon
Nov 23, 2010

- 10_0004

arrow down

Halogen Free Material Change for SOIC Narrow Body Products Assembled at Amkor

ADM706RARZ

PRODUCTION

ADM706RARZ-REEL

PRODUCTION

ADM706RARZ-REEL7

PRODUCTION

ADM706SARZ

PRODUCTION

ADM706SARZ-REEL

PRODUCTION

ADM706TARZ

PRODUCTION

ADM706TARZ-REEL

PRODUCTION

pdf

PCN10_0004_Form

external-icon

xls

Material_Report

Download

pdf

ADI0012 Reliability Report

external-icon

Software & Part Ecosystem

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

ADM706 - Supervisory Circuits Download
