ADM6823
Low Voltage, Supervisory Circuit with Watchdog and Manual Reset in 5-Lead SOT-23
Top
Overview
Features and Benefits
- Precision low voltage monitoring
- 9 reset threshold options: 1.58 V to 4.63 V
- 140 ms (minimum) reset timeout
- Watchdog timer with 1.6 sec timeout
- Reset output stage
Push-pull active-low
- Low power consumption: 7 μA
- Guaranteed reset output valid to VCC = 1 V
- Power supply glitch immunity
- Specified from −40°C to +125°C

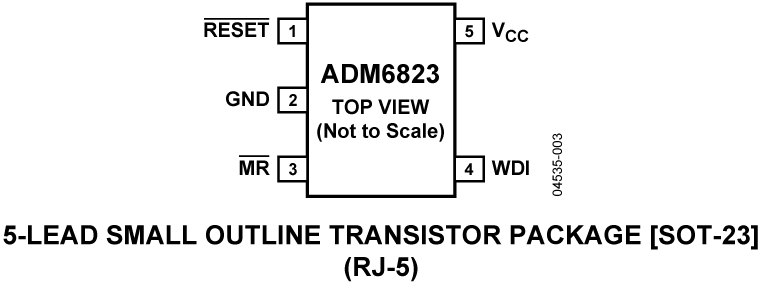

- 5-lead SOT-23 package
Product Details
The ADM6823 is a low voltage, supervisory circuit that monitors power supply voltage levels and code execution integrity in micro-processor-based systems. As well as providing power-on reset signals, an on-chip watchdog timer can reset the microprocessor if it fails to strobe within a preset timeout period. A reset signal can also be asserted by means of an external push-button through a manual reset input.
The part is available in nine reset threshold options, ranging from 1.58 V to 4.63 V (typical). The reset and watchdog timeout periods are fixed at 140 ms (minimum) and 1.6 sec (typical), respectively. Not all device models are released for sale as standard models. See the Ordering Guide for details.
The ADM6823 is available in a 5-lead SOT-23 package and typically consumes only 7 μA, making it suitable for use in low power, portable applications.
APPLICATIONS
- Microprocessor systems
- Computers
- Controllers
- Intelligent instruments
- Portable equipment
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| ADM6823RYRJZ-RL7 | Material Declaration | Reliability Data | 5-Lead SOT-23 | |
| ADM6823SYRJZ-RL7 | Material Declaration | Reliability Data | 5-Lead SOT-23 | |
| ADM6823TYRJZ-RL7 | Material Declaration | Reliability Data | 5-Lead SOT-23 | |
| ADM6823VYRJZ-RL7 | Material Declaration | Reliability Data | 5-Lead SOT-23 | |
| ADM6823WYRJZ-RL7 | Material Declaration | Reliability Data | 5-Lead SOT-23 | |
| ADM6823ZYRJZ-RL7 | Material Declaration | Reliability Data | 5-Lead SOT-23 | |
| Wafer Fabrication Data |
