ADM6384

PRODUCTION

Microprocessor Supervisory Circuit in 4-Lead SC70

Data Sheet (Rev. E) Product Selection Table

Part Models: 8
1ku List Price: Starting From $1.19

Viewing:

Overview

Precision power supply monitoring
31 reset threshold options: 1.58 V to 5.0 V
Four reset timeouts: 1 ms, 20 ms, 140 ms, and 1120 ms
Manual reset input
Reset output stage
Push-pull active-low
Guaranteed reset output valid to V_CC = 1 V
Power supply glitch immunity
Specified over the −40°C to +125°C temperature range
4-lead SC70 package

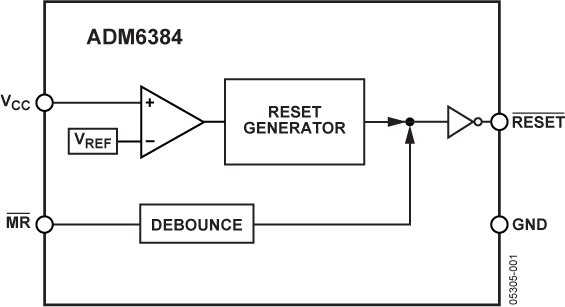

The ADM6384 is a supervisory circuit that monitors power supply voltage levels in microprocessor-based systems. A power-on reset signal is generated when the supply voltage rises to a preset threshold level. The debounced manual reset input of the ADM6384 can be used to initiate a reset by means of an external push button or logic signal.

The device is available in a choice of 31 reset threshold options, from 1.58 V to 5.0 V. The minimum reset timeout periods are 1 ms, 20 ms, 140 ms, and 1120 ms.

The ADM6384 is available in a 4-lead SC70 package and typically consumes only 7 μA, making it suitable for use in low power, portable applications.

Applications

Microprocessor systems
Computers
Controllers
Intelligent instruments
Portable equipment

Part Models: 8
1ku List Price: Starting From $1.19

Documentation

Data Sheet 1

ADM6384: Microprocessor Supervisory Circuit in 4-Lead SC70 Data Sheet (Rev.E) 12/17/2004

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADM6384YKS17D3Z-R7	4-Lead SC70	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADM6384YKS23D3Z-R7	4-Lead SC70	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADM6384YKS29D1Z-R7	4-Lead SC70	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADM6384YKS29D3Z-R7	4-Lead SC70	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADM6384YKS31D1Z-R7	4-Lead SC70	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADM6384YKS31D2Z-R7	4-Lead SC70	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADM6384YKS39D2Z-R7	4-Lead SC70	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADM6384YKS46D2Z-R7	4-Lead SC70	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
