ADM4210

Low Voltage Hot Swap Controller in 6-pin TSOT Package

PRODUCTION

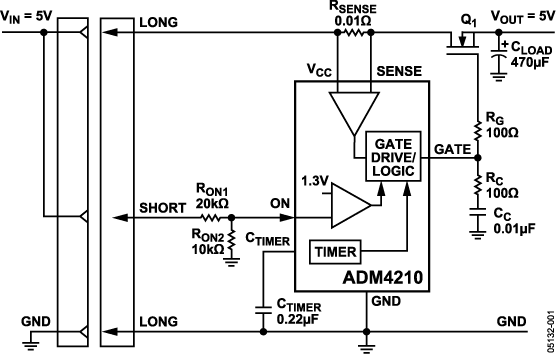

ADM4210 Typical Application Diagram slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $2.19

Features

Allows Safe Board Insertion and Removal from a Live Backplane
Adjustable Analog Current Limit with Circuit Breaker
Fast Response Limits Peak Fault Current
Automatic Retry or Latch Off On Current Fault
Adjustable Supply Voltage Power-Up Rate

High Side Drive for External FET Switch
Controls Supply Voltages from 2.7V to 16.5V
In-Built Under-voltage Lockout
Adjustable Over-voltage Protection
Low profile (1mm) TSOT Package
Pin for Pin Compatible with LTC4210-1 and LTC4210-2

Additional Details

The ADM4210 is a 6-pin TSOT Hot Swap controller that allows a board to be safely inserted and removed from a live backplane.

An internal charge pumped driver controls the GATE of an external high side N-channel FET for a supply voltage ranging from 2.7V to 16.5V. The ADM4210 provides the initial timing cycle and allows the GATE to be ramped up at a capacitor adjustable rate.

The ADM4210 features a fast current limit loop providing active current limiting together with a circuit breaker timer. The signal at the ON pin turns the part on and off and a low on the pin will reset the device.

This part is available in two options: the ADM4210-1 will automatically retry after an over-current fault and the ADM4210-2 will latch off after an over-current fault.

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $2.19

Technical Documents 1

ADM4210: Hot Swap Controller in 6-Lead TSOT Package Data Sheet (Rev.A) 11/13/2006

Reference Materials 1

Hot Swap Controllers 08/02/2023

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADM4210-1AUJZ-RL7	6-Lead TSOT	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADM4210-2AUJZ-RL7	6-Lead TSOT	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
