Overview
Features and Benefits
|
|
Product Details
The ADM1068 Super Sequencer® is a configurable supervisory/ sequencing device that offers a single-chip solution for supply monitoring and sequencing in multiple supply systems.The device also provides up to eight programmable inputs for monitoring undervoltage faults, overvoltage faults, or out-of-window faults on up to eight supplies. In addition, eight programmable outputs can be used as logic enables. Six of these programmable outputs can also provide up to a 12 V output for driving the gate of an N-FET that can be placed in the path of a supply.
The logical core of the device is a sequencing engine. This state-machine-based construction provides up to 63 different states. This design enables very flexible sequencing of the outputs, based on the condition of the inputs.
The ADM1068 is controlled via configuration data that can be programmed into an EEPROM. The whole configuration can be programmed using an intuitive GUI-based software package provided by Analog Devices, Inc.
Applications
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

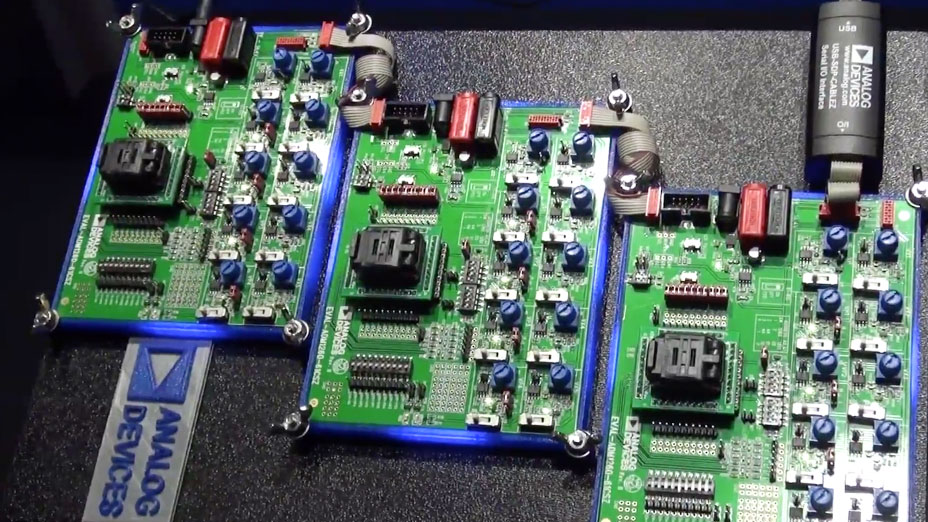

Evaluation Kits (1)
Documentation & Resources
-
AN-1009: Block Erasing, Reading and Writing to the ADM106x EEPROM (Rev. A)5/26/2011
-
AN-1086: Using an ADM106x in a Hot Swap Application (Rev. 0)12/14/2010
-
AN-0997: Ping-Pong Configuration Guide for ADM1062 to ADM1069 Devices (Rev. A)6/15/2009
-
AN-1001: Checksum Calculations (Rev. A)4/6/2009
-
AN-897: ADC Readback Code (Rev. A)11/19/2008
-
AN-0973: Erasing and Programming the Sequencing Engine EEPROM (Rev. A)11/19/2008
-
AN-0975: Automatic Generation of State Diagrams for the ADM1062 to ADM1069 Using Graphviz (Rev. A)8/13/2008
-
AN-722: Watchdog Detection Using the ADM106x (Rev. 0)6/28/2006
-
AN-721: ADM1068/ADM1069/ADM1168/ADM1169 Configuration Registers (Rev. B)3/1/2006
-
AN-782: Monitoring High Voltages with the ADM1062-ADM1069 Super Sequencers™ (Rev. 0)6/29/2005
-
AN-781: Monitoring Additional Supplies with the ADM1062-ADM1069 Super Sequencers™ (Rev. 0)6/29/2005
-
AN-780: Monitoring Negative Voltages with the ADM1062 to ADM1069, ADM1166, ADM1168, ADM1169, and ADM1260 Super Sequencer Devices (Rev. B)6/21/2005
-
AN-723: Interrupt Generation Using the ADM106x (Rev. 0)5/6/2004
-
UG-404: USB-SDP-CABLEZ Serial Interface Board6/15/2012
-
SuperSequencer Documentation4/12/2012
-
• UG-063: ADM1062 to ADM1069 Evaluation Board User Guide
PDF -
• UG-049: ADM1062 to ADM1069 Software Tool User Guide
PDF -
• Automatic Generation of ADM106x State Diagrams using Graphviz
PDF -
• Super Sequencer Quick Start Demo Configuration Files
-
• Margin Calculation Tool
Software & Systems Requirements
Evaluation Software
SuperSequencer Software (Rev. 4.2.3 )
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| ADM1068ASTZ | Material Declaration | Reliability Data | 32-Lead LQFP (7mm x 7mm) | |
| ADM1068ASTZ-REEL7 | Material Declaration | Reliability Data | 32-Lead LQFP (7mm x 7mm) | |
| Wafer Fabrication Data |
