ADM1063

PRODUCTION

Multisupply Supervisor/Sequencer with ADC and Temperature Monitoring

Data Sheet (Rev. C) Product Selection Table

Part Models: 5
1ku List Price: Starting From $11.60

Viewing:

Overview

Complete supervisory and sequencing solution for up to 10 supplies
10 supply fault detectors enable supervision of supplies to

<0.5% accuracy at all voltages at 25°C
<1.0% accuracy across all voltages and temperatures

5 selectable input attenuators allow supervision of supplies to

14.4 V on VH
6 V on VP1 to VP4 (VPx)

See data sheet for additional features

ADM1063-EP supports defense and aerospace applications (AQEC standard)

Download ADM1063-EP data sheet (pdf)

The ADM1063 is a configurable supervisory/sequencing device that offers a single-chip solution for supply monitoring and sequencing in multiple supply systems. In addition to these functions, the ADM1063 integrates a 12-bit ADC that can be used to accurately read back up to 12 separate voltages.

The device also provides up to 10 programmable inputs for monitoring under, over, or out-of-window faults on up to 10 supplies. In addition, 10 programmable outputs can be used as logic enables. Six of these programmable outputs can provide up to a 12 V output for driving the gate of an n-FET that can be placed in the path of a supply.

Applications

Central office systems

Servers/routers

Multivoltage system line cards

DSP/FPGA supply sequencing

In-circuit testing of margined supplies

Part Models: 5
1ku List Price: Starting From $11.60

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

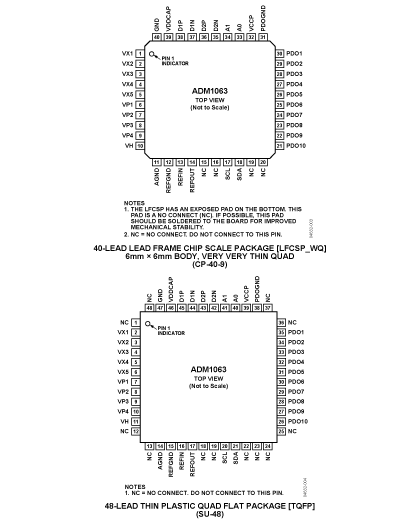

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADM1063ACPZ	40-Lead LFCSP (6mm x 6mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADM1063ACPZ-REEL7	40-Lead LFCSP (6mm x 6mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADM1063ASUZ	48-Lead TQFP (7mm x 7mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADM1063ASUZ-REEL7	48-Lead TQFP (7mm x 7mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADM1063BCPZ-EP-RL7	40-Lead LFCSP (6mm x 6mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Nov 10, 2022 - 22_0277 Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages
		PCN22_0277_Form Material_Report Detailed Change Description Qualification Plan Qualification Plan Qualification Results Summary
ADM1063ACPZ	PRODUCTION
ADM1063ACPZ-REEL7	PRODUCTION
Apr 29, 2015 - 14_0049 Conversion of 6x6mm and 7x7mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines
		PCN14_0049_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Results Summary
ADM1063ACPZ	PRODUCTION
ADM1063ACPZ-REEL7	PRODUCTION
Jun 17, 2011 - 11_0142 ADM1062, ADM1063, ADM1064, ADM1065, ADM1066, ADM1067, ADM1068, ADM1069 Datasheet Specification Correction
		PCN11_0142_Form Material_Report
ADM1063ACPZ	PRODUCTION
ADM1063ACPZ-REEL7	PRODUCTION
ADM1063ASUZ	PRODUCTION
ADM1063ASUZ-REEL7	PRODUCTION
ADM1063BCPZ-EP-RL7	PRODUCTION
Jan 5, 2009 - 07_0077 Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages
		07_0077Rev D_LQFP_Dec17 07_0077Rev D_MQFP_Dec15 07_0077Rev D_Obsolesence_Dec15 07_0077Rev D_TQFP_Dec15 Material_Report PCN07_0077_Form QFP Transfer Qualification Results-tests_DEC12CL
ADM1063ASUZ	PRODUCTION
ADM1063ASUZ-REEL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Evaluation Software 2

SuperSequencer Software

ADMxxxx Common Run-Time

Can't find the software or driver you need?

Evaluation Kits

ADM1063 Evaluation Board

Buy Now View Details

Product Details

This page contains evaluation board documentation and ordering information for evaluating this product.
