ADLT2852S

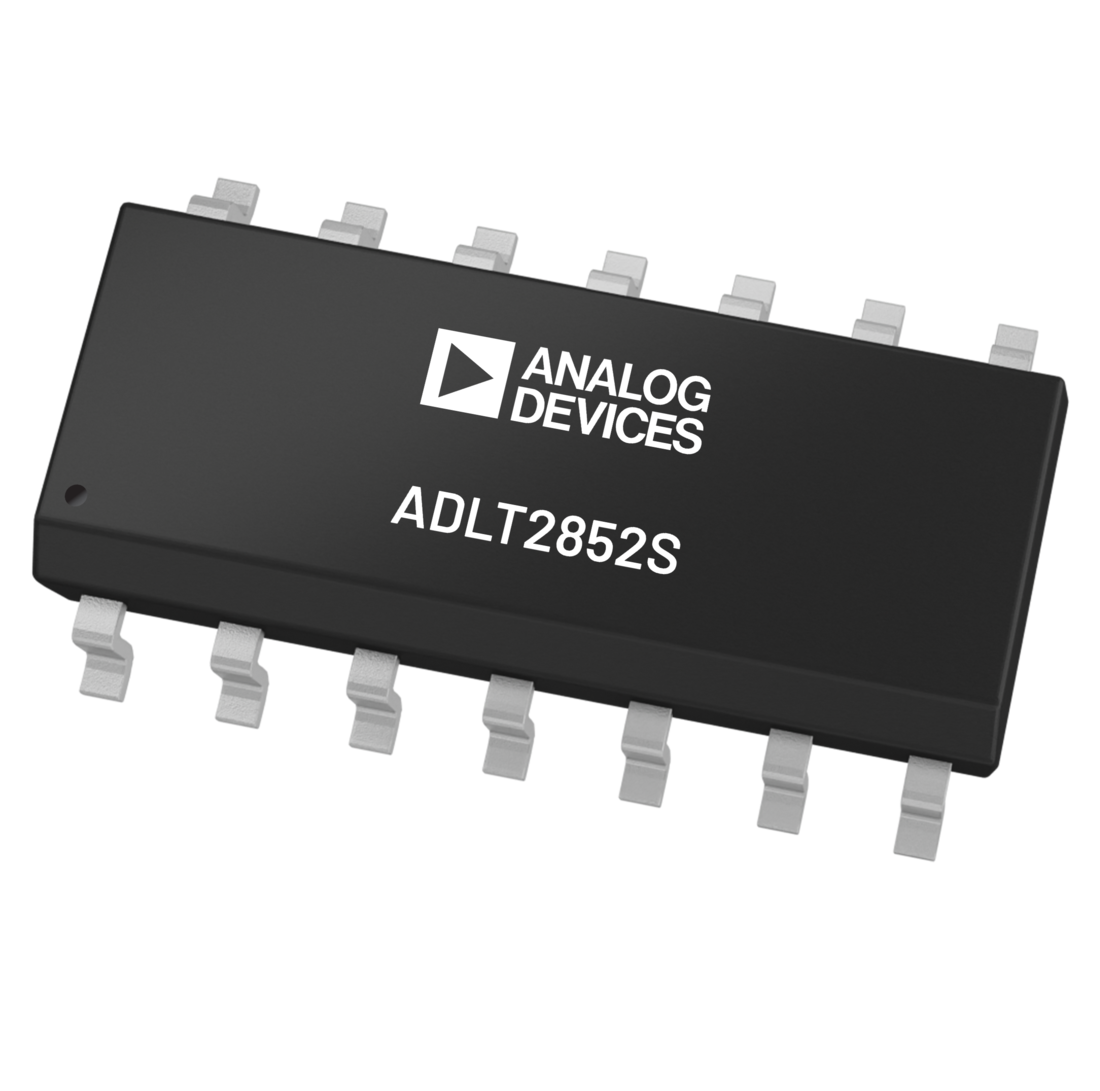

3.3 V, 20 Mbps RS485/RS422 Transceiver

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.0)
Documentation View All Documentation
Part Models 1
1ku List Price Starting From $18.14
Features
  • 3.3 V supply voltage
  • 20 Mbps maximum data rate
  • No damage or latch-up up to ±15 kV HBM
  • Guaranteed fail-safe receiver operation over the entire common-mode range
  • Current-limited drivers and thermal shutdown
  • Power-up and power-down glitch free driver outputs
  • Low operating current: 370 μA typical in receive mode
  • Compatible with TIA/EIA-485-A specifications
  • Available in 14-lead SOIC_N package

COMMERCIAL SPACE FEATURES

  • Supports aerospace applications
  • Wafer diffusion lot traceability
  • Radiation lot acceptance testing: TID
  • Radiation benchmark
    • Single event latch-up
Additional Details
show more Icon

The ADLT2852S-CSL is a low power, 20 Mbps RS485/RS422 transceiver operating on a 3.3 V supply. The receiver has a fail-safe feature that guarantees a high output state under conditions of floating or shorted inputs.

The driver maintains a high output impedance over the entire common-mode range when disabled or when the supply is removed. Excessive power dissipation caused by bus contention or a fault is prevented by current limiting all outputs and by thermal shutdown. Enhanced electrostatic discharge (ESD) protection allows this device to withstand up to ±15 kV human body model (HBM) on the transceiver interface pins without latch-up or damage.

The ADLT2852S-CSL is specified over the −55°C to +125°C temperature range. Additional application and technical information can be found in the Commercial Space Products Program brochure and the LTC2852 data sheet.

APPLICATIONS

  • Low Earth orbit (LEO) space payloads
  • Low power RS485/RS422 transceiver
  • Level translator
  • Backplane transceiver
