ADG836L

0.5 Ω CMOS 1.65 V to 3.6 V, Dual SPDT/2:1 MUX w/Guaranteed Leakage Performance

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 1
1ku List Price Starting From $1.56
Features
  • 0.5 Ω typical on resistance
  • 0.8 Ω maximum on resistance at 125°C
  • 1.65 V to 3.6 V operation
  • Operating temperature range: −40°C to +125°C
  • Guaranteed leakage specifications up to 125°C
  • High current carrying capability: 300 mA continuous
  • Rail-to-rail switching operation
  • Fast switching times: <20 ns
  • Typical power consumption: <0.1 µW
Additional Details
show more Icon

The ADG836L is a low voltage CMOS device containing two independently selectable single-pole, double-throw (SPDT) switches. This device offers ultralow on resistance of less than 0.8 Ω over the full temperature range. The ADG836L is fully specified for 3.3 V, 2.5 V, and 1.8 V supply operation.

Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. The ADG836L exhibits break-before-make switching action.

The ADG836L is available in a 10-lead package.

Product Highlights

  1. Less than 0.8 Ω over full temperature range of −40°C to +125°C.
  2. Single 1.65 V to 3.6 V operation.
  3. Compatible with 1.8 V CMOS logic.
  4. High current handling capability (300 mA continuous current at 3.3 V).
  5. Low THD + N (0.02% typical).
  6. Small 10-lead MSOP package.

Applications

  • Cellular phones
  • PDAs
  • MP3 players
  • Power routing
  • Battery-powered systems
  • PCMCIA cards
  • Modems
  • Audio and video signal routing
  • Communication systems
Part Models 1
1ku List Price Starting From $1.56

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADG836LYRMZ
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 22, 2021

- 21_0001

Addition of Amkor Philippines as an Alternate Site for Singulated MSOP and MSOP_EP

Aug 19, 2020

- 20_0174

ADG811, ADG812, ADG836, ADG836L, ADG804 Ron specification changes

Oct 30, 2017

- 15_0176

Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines

Nov 2, 2015

- 15_0163

ADG836L Wafer Fabrication Change from TSMC Fab 7A to TSMC Fab 11

May 15, 2012

- 10_0006

Halogen Free Material Change for mini SOIC Products

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 22, 2021

- 21_0001

arrow down

Addition of Amkor Philippines as an Alternate Site for Singulated MSOP and MSOP_EP

Aug 19, 2020

- 20_0174

arrow down

ADG811, ADG812, ADG836, ADG836L, ADG804 Ron specification changes

Oct 30, 2017

- 15_0176

arrow down
Nov 2, 2015

- 15_0163

arrow down

ADG836L Wafer Fabrication Change from TSMC Fab 7A to TSMC Fab 11

May 15, 2012

- 10_0006

arrow down

Halogen Free Material Change for mini SOIC Products

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-10MSOP

Evaluation Board for 10-Lead MSOP Devices in the Switches and Multiplexers Portfolio

zoom

EVAL-10MSOP

Evaluation Board for 10-Lead MSOP Devices in the Switches and Multiplexers Portfolio

Evaluation Board for 10-Lead MSOP Devices in the Switches and Multiplexers Portfolio

Features and Benefits

  • 10-lead MSOP evaluation board
  • Clamp allows the main device to be easily changed
  • Gold pin connectors allow the addition of passive components
  • SMB connectors for the input/output of signals
  • Additional space on-board to allow for prototyping

Product Detail

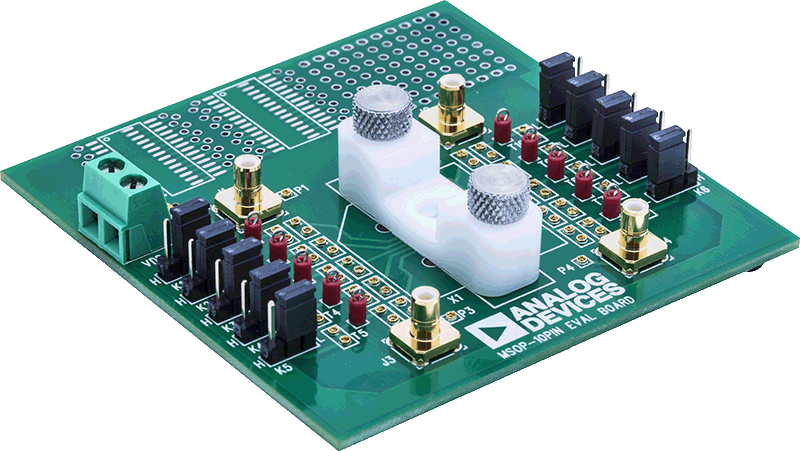

The EVAL-10MSOPEBZ evaluation board evaluates 10-lead MSOP devices in the Switches and Multiplexers Portfolio that are purchased separately. A clamp is supplied with the EVAL-10MSOPEBZ to secure a 10-lead MSOP device to the evaluation board without the need for soldering, making the board reusable for multiple devices.


A 10-lead MSOP device can be clamped or soldered to the center of the evaluation board. Each pin of the device has a corresponding link from K1 to K10 that can be set to either VDD or GND. A wire screw terminal supplies VDD and GND. SMB connectors on the board allow additional external signals to be supplied to the device. In addition, there is space available at the top of the board for prototyping.


Full specifications of the device under test (DUT) are available in the corresponding product data sheet, which should be consulted in conjunction with this user guide when using the evaluation board.

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
