ADG793G

I2C®-Compatible, Wide Bandwidth, Triple 3:1 Multiplexer w/2 I2C-controllable Logic Outputs

Show More showmore-icon

alert : Obsolete tooltip
alert : Obsolete tooltip
Part Details
Features
  • Bandwidth: 195 MHz
  • Low Insertion Loss and On Resistance: 2.6 Ω Typical
  • On Resistance Flatness: 0.3 Ω Typical
  • Single 3 V/5 V Supply Operation
  • 3.3 V Analog Signal Range (5V Supply, 75Ω Load)
  • Low Quiescent Supply Current: 1 nA Typical
  • Fast Switching Times
    tON 185 ns
    tOFF 181 ns
  • I2C-Compatible Interface

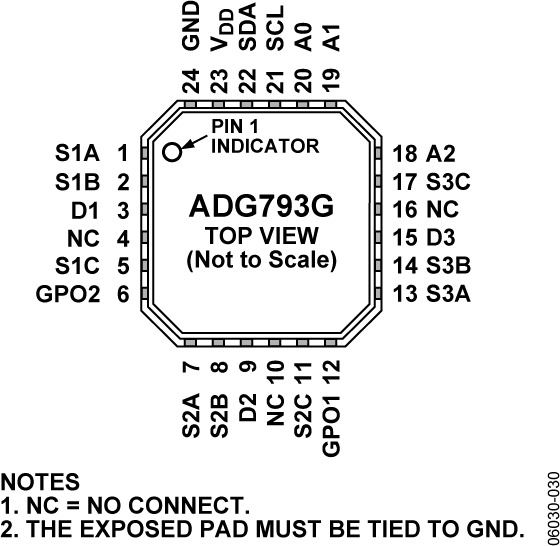

  • Compact 24-lead LFCSP
  • Two I2C-controllable Logic Outputs
Additional Details
show more Icon

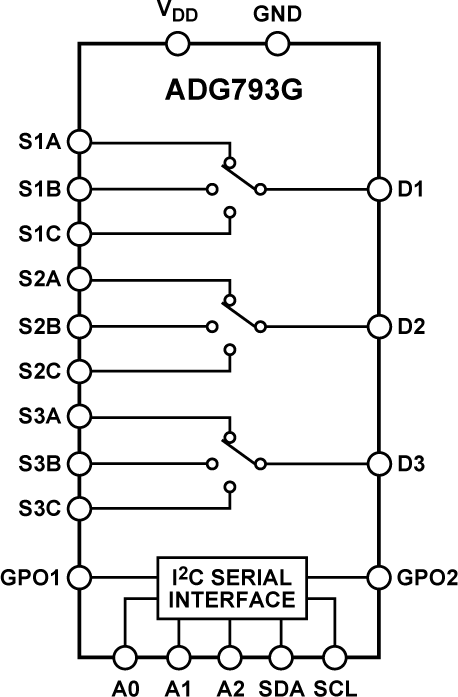

The ADG793A/ADG793G is a monolithic CMOS device comprising three 3:1 multiplexer/demultiplexers controllable via a standard I2C serial interface. The CMOS process provides ultralow power dissipation yet gives high switching speed and low on resistance.

The on-resistance profile is very flat over the full analog input range, and the wide bandwidth ensures excellent linearity and low distortion. These features, combined with a wide input signal range, make the ADG793A/ADG793G the ideal switching solution for a wide range of TV applications, including RGB and YPbPr video switches.

The switches conduct equally well in both directions when on. In the off condition, signal levels up to the supplies are blocked. The ADG793A/ADG793G switches exhibit break-before-make switching action. The ADG793G has two general-purpose logic output pins controllable through the I2C interface, which can be used to control other non-I2C-compatible devices such as video filters

The integrated I2C interface provides a large degree of flexibility in the system design. It has three user-settable I2C address pins that allow the user to connect up to eight devices to the same bus to build larger switching arrays.

The ADG793A/ADG793G operates from a single 3 V or 5 V supply voltage and is available in a compact, 4 mm × 4 mm body, 24-lead, lead free chip scale package (LFCSP).

Applications
  • S-Video RGB/YPbPr Video Switches
  • HDTV
  • Projection TV
  • DVD-R/RW
  • AV Receiver
