ADG714

CMOS, Low Voltage, SPI/QSPI/Microwire Compatible Interface, Serially Controlled, Octal SPST Switches

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 4
1ku List Price Starting From $2.24
Features
  • SPI/QSPI/MICROWIRE-compatible interface
  • 2.7 V to 5.5 V single supply
  • ±2.5 V dual supply
  • 2.5 Ω on resistance
  • 0.6 Ω on resistance fatness
  • 0.1 nA leakage currents
  • Octal SPST
  • Power-on reset
  • Fast switching times
  • TTL/CMOS compatible

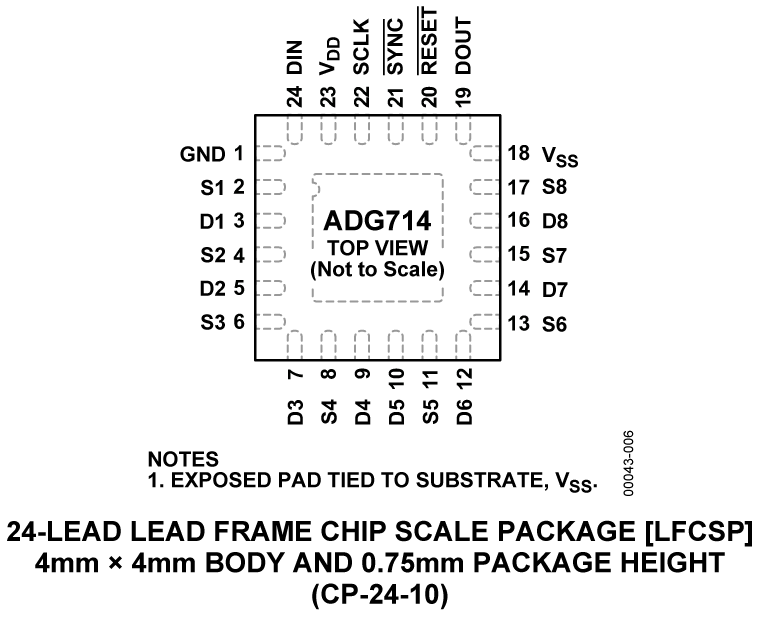

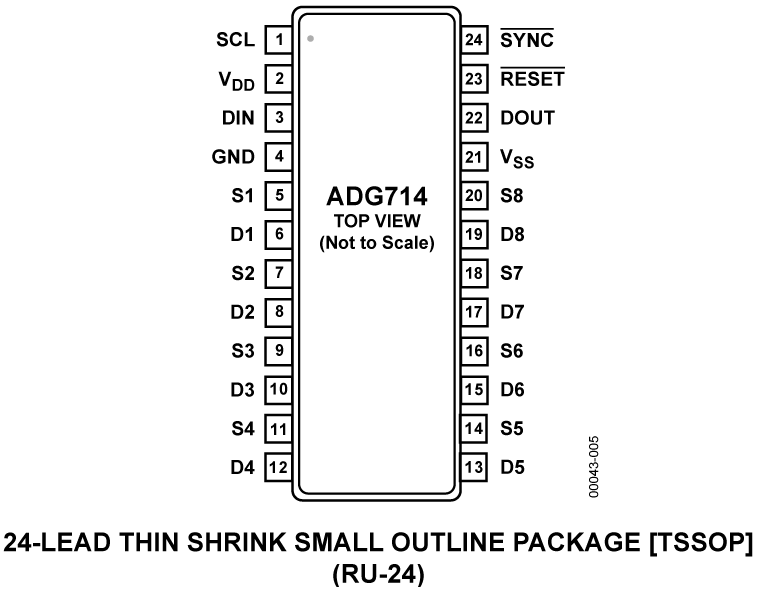

  • 24-lead TSSOP and 24-lead LFCSP
Additional Details
show more Icon

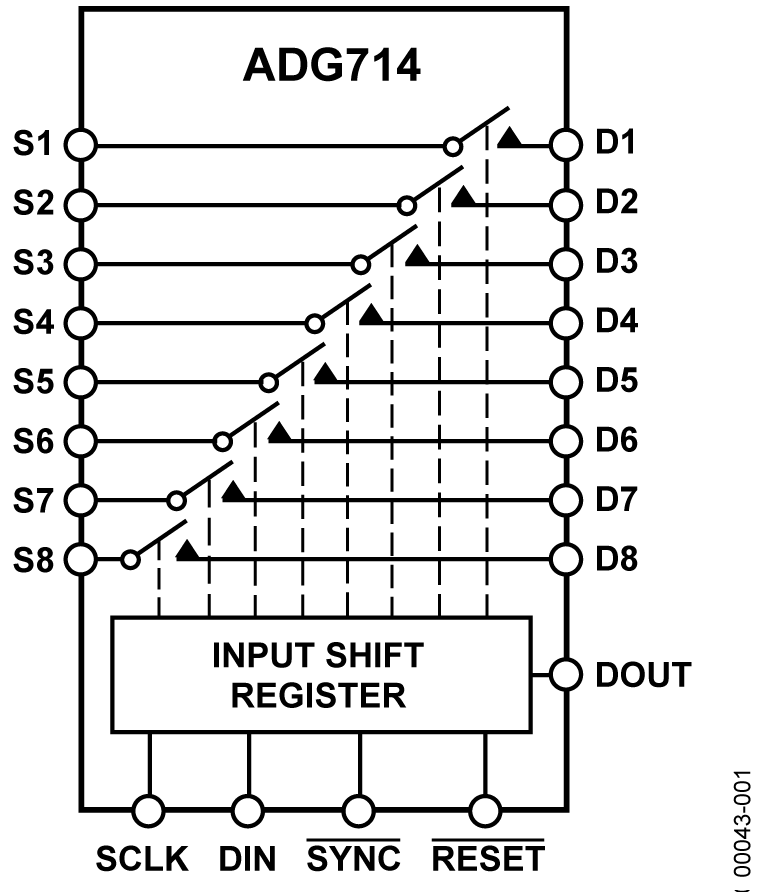

The ADG714 is a complementary metal-oxide semiconductor (CMOS), octal single-pole, single-throw (SPST) switch controlled via a 3-wire serial interface. On resistance is closely matched between the switches and is flat over the full signal range. Each switch conducts equally well in both directions, and the input signal range extends to the supplies. Data is written to these devices in the form of 8 bits, each bit corresponding to one channel.

The ADG714 uses a 3-wire serial interface that is compatible with serial peripheral interface (SPI), QSPI, MICROWIRE interface standards, and most digital signal processing (DSP) interface standards. The output of the shift register DOUT enables a number of these devices to be daisy-chained.

On power-up, all switches are in the OFF condition, and the internal registers contain all zeros.

A low power consumption and operating supply range of 2.7 V to 5.5 V makes this part ideal for many applications. The ADG714 may also be supplied from a dual ±2.5 V supply. The ADG714 is available in a 24-lead TSSOP and a 24-lead LFCSP.

Product Highlights

  1. 3-wire serial interface.
  2. Single-/dual-supply operation.
    The ADG714 and ADG715 are fully specified and guaranteed with 3 V, 5 V, and ±2.5 V supply rails.
  3. Low on resistance, typically 2.5 Ω.
  4. Low leakage.
  5. Power-on reset.
  6. A 24-lead TSSOP.
  7. A 24-lead LFCSP.

Applications

  • Data acquisition systems
  • Communication systems
  • Relay replacement
  • Audio and video switching
Part Models 4
1ku List Price Starting From $2.24

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADG714BCPZ-REEL7
  • HTML
  • HTML
ADG714BRUZ
  • HTML
  • HTML
ADG714BRUZ-REEL
  • HTML
  • HTML
ADG714BRUZ-REEL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jan 16, 2012

- 11_0244

Halogen Free Material Change for Select TSSOP Products Assembled at Amkor

ADG714BRUZ

PRODUCTION

ADG714BRUZ-REEL

PRODUCTION

ADG714BRUZ-REEL7

PRODUCTION

Feb 8, 2010

- 04_0080

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

ADG714BRUZ

PRODUCTION

ADG714BRUZ-REEL

PRODUCTION

ADG714BRUZ-REEL7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jan 16, 2012

- 11_0244

arrow down

Halogen Free Material Change for Select TSSOP Products Assembled at Amkor

ADG714BRUZ

PRODUCTION

ADG714BRUZ-REEL

PRODUCTION

ADG714BRUZ-REEL7

PRODUCTION

Feb 8, 2010

- 04_0080

arrow down

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

ADG714BRUZ

PRODUCTION

ADG714BRUZ-REEL

PRODUCTION

ADG714BRUZ-REEL7

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-24TSSOP

Evaluation Board for 24-Lead TSSOP Devices in the Switches and Multiplexers Portfolio

zoom

EVAL-24TSSOP

Evaluation Board for 24-Lead TSSOP Devices in the Switches and Multiplexers Portfolio

Evaluation Board for 24-Lead TSSOP Devices in the Switches and Multiplexers Portfolio

Features and Benefits

  • 24-lead TSSOP evaluation board
  • Clamp allows the main device to be easily changed
  • Gold pin connectors allow the addition of passive components
  • SMB connectors for the input/output of signals
  • Additional space on-board to allow for prototyping

Product Detail

The EVAL-24TSSOPEBZ evaluation board evaluates 24-lead TSSOP devices in the Switches and Multiplexers Portfolio that are purchased separately. A clamp is supplied with the EVAL-24TSSOPEBZ to secure a 24-lead TSSOP device to the evaluation board without the need for soldering, making the board reusable for multiple devices.


A 24-lead TSSOP device can be clamped or soldered to the center of the evaluation board. Each pin of the device has a corresponding link from K1 to K24 that can be set to either VDD or GND. A wire screw terminal supplies VDD and GND. SMB connectors on the board allow additional external signals to be supplied to the device. In addition, there is space available at the top of the board for prototyping.


Full specifications of the device under test (DUT) are available in the corresponding product data sheet, which should be consulted in conjunction with this user guide when using the evaluation board.
