Features
- 1.8 V to 5.5 V Single Supply
- 2.5 Ω (Typ) On Resistance
- Low On-Resistance Flatness
- -3 dB Bandwidth >200 MHz
- Rail-to-Rail Operation
- 16-Lead TSSOP/SOIC packages
- Fast Switching Times
tON 16 ns
tOFF 10 ns - Typical Power Consumption (<0.01 µW )
- TTL/CMOS Compatible
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

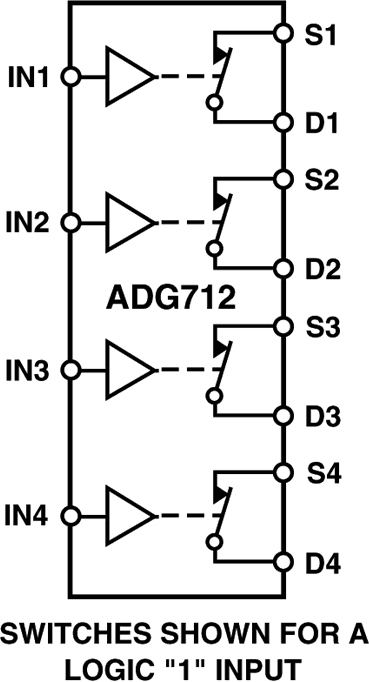

The ADG712 is a monolithic CMOS device containing four independently selectable switches. It is designed on an advanced submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents and high bandwidth.
The ADG712 operates from a single +1.8 V to +5.5 V supply, making it ideal for use in battery powered instruments and with the new generation of DACs and ADCs from Analog Devices. Fast switching times and high bandwidth make the part suitable for video signal switching.
Each switch conducts equally well in both directions when ON. The ADG712 is available in 16-lead TSSOP and 16-lead SOIC packages.
2
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADG712
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Technical Articles
-
User Guide
-
All
-
English
-
Japanese
-
Chinese
Data Sheet
2
Technical Articles
6
URL
URL
URL
URL
HTML
HTML
User Guide
1
Documentation
Data Sheet 1
User Guide 1
Technical Articles 3
Product Selection Guide 1
Analog Dialogue 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADG712BRUZ |
16-Lead TSSOP
|
|
|
| ADG712BRUZ-REEL |
16-Lead TSSOP
|
|
|
| ADG712BRUZ-REEL7 |
16-Lead TSSOP
|
|
|
| ADG712BRZ |
16-Lead SOIC
|
|
|
| ADG712BRZ-REEL7 |
16-Lead SOIC
|
|
- ADG712BRUZ
- Pin/Package Drawing
-
16-Lead TSSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADG712BRUZ-REEL
- Pin/Package Drawing
-
16-Lead TSSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADG712BRUZ-REEL7
- Pin/Package Drawing
-
16-Lead TSSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADG712BRZ
- Pin/Package Drawing
-
16-Lead SOIC
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADG712BRZ-REEL7
- Pin/Package Drawing
-
16-Lead SOIC
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jan 16, 2012
- 11_0244
Halogen Free Material Change for Select TSSOP Products Assembled at Amkor
ADG712BRUZ
PRODUCTION
ADG712BRUZ-REEL
PRODUCTION
ADG712BRUZ-REEL7
PRODUCTION
Oct 5, 2010
- 10_0146
Halogen Free Material Change for 14/16L SOIC_N Products
ADG712BRZ
PRODUCTION
ADG712BRZ-REEL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jan 16, 2012
- 11_0244
Halogen Free Material Change for Select TSSOP Products Assembled at Amkor
ADG712BRUZ
PRODUCTION
ADG712BRUZ-REEL
PRODUCTION
ADG712BRUZ-REEL7
PRODUCTION
Oct 5, 2010
- 10_0146
Halogen Free Material Change for 14/16L SOIC_N Products
ADG712BRZ
PRODUCTION
ADG712BRZ-REEL7
PRODUCTION
Software & Part Ecosystem
Evaluation Kits 1
EVAL-16TSSOP
Evaluation Board for 16 lead TSSOP Devices in the Switch/Mux Portfolio
Product Detail
The EVAL-16TSSOPEBZ evaluation board evaluates 16-lead TSSOP devices in the Switches and Multiplexers Portfolio that are purchased separately. A clamp is supplied with the EVAL-16TSSOPEBZ to secure a 16-lead TSSOP device to the evaluation board without the need for soldering, making the board reusable for multiple devices.
A 16-lead TSSOP device can be clamped or soldered to the center of the evaluation board. Each pin of the device has a corresponding link from K1 to K16 that can be set to either VDD or GND. A wire screw terminal supplies VDD and GND. SMB connectors on the board allow additional external signals to be supplied to the device. In addition, there is space available at the top of the board for prototyping.
Full specifications of the device under test (DUT) are available in the corresponding product data sheet, which should be consulted in conjunction with this user guide when using the evaluation board.
Tools & Simulations 2
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Lt Spice
SPICE Model 1
