ADG701L

CMOS Low Voltage, 2 Ω SPST NC Switches

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 5
1ku List Price Starting From $0.67
Features
  • 1.8 V to 5.5 V single supply
  • 2 Ω (typical) on resistance
  • Low on resistance flatness
  • Guaranteed leakage specifications up to 85°C
  • –3 dB bandwidth > 200 MHz
  • Rail-to-rail operation
  • Fast switching times
    • tON 18 ns
    • tOFF 12 ns
  • Typical power consumption < 0.01 μW
  • Transistor/Transistor Logic (TTL)/CMOS-compatible
Additional Details
show more Icon

The ADG701L/ADG702L are monolithic CMOS SPST switches. These switches are designed using an advanced submicron process that provides low power dissipation yet also offers high switching speed, low on resistance, and low leakage currents. In addition, −3 dB bandwidths greater than 200 MHz can be achieved.

The ADG701L/ADG702L can operate from a single 1.8 V to 5.5 V supply, making it ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices, Inc.

Figure 1 and Figure 2 show that with a logic input of 1, the switch of the ADG701L is closed while the switch of the ADG702L is open. Each switch conducts equally well in both directions when on.

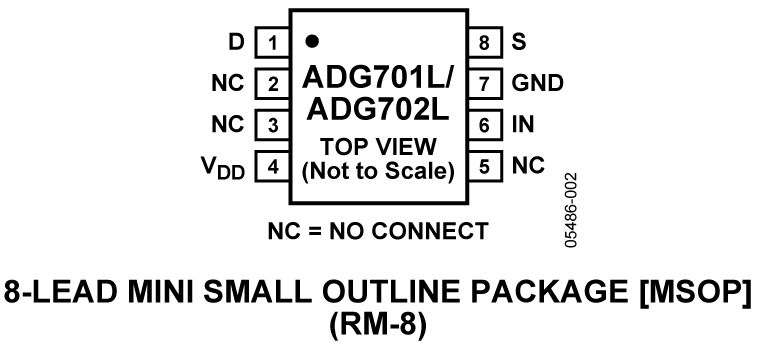

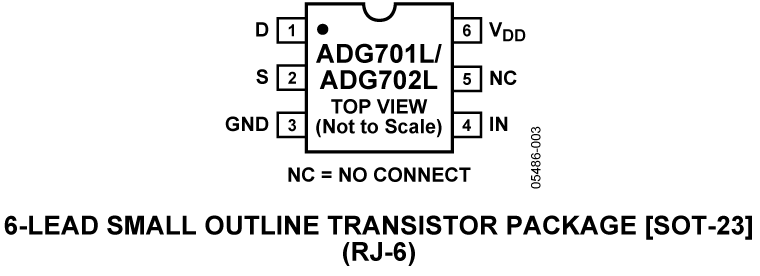

The ADG701L/ADG702L are packaged as 5-lead SOT-23, 6-lead SOT-23, and 8-lead MSOP.

Product Highlights

  1. 1.8 V to 5.5 V Single-Supply Operation. The ADG701L/ADG702L offer high performance, including low on resistance and fast switching times. The ADG701L/ADG702L are fully specified and guaranteed with 3 V and 5 V supply rails.
  2. Very Low RON (3 Ω Maximum at 5 V, 5 Ω Maximum at 3 V). At 1.8 V operation, on resistance (RON) is typically 40 Ω over the temperature range.
  3. On Resistance Flatness, RFLAT(ON) (1 Ω Maximum).
  4. −3 dB Bandwidth > 200 MHz.
  5. Low Power Dissipation. CMOS construction ensures low power dissipation.
  6. Fast tON/tOFF.

Application

  • Battery-powered systems
  • Communication systems
  • Sample-and-hold systems
  • Audio signal routing
  • Video switching
  • Mechanical reed relay replacement
Part Models 5
1ku List Price Starting From $0.67

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADG701LBRJZ-500RL7
  • HTML
  • HTML
ADG701LBRJZ-REEL7
  • HTML
  • HTML
ADG701LBRMZ
  • HTML
  • HTML
ADG701LBRMZ-REEL7
  • HTML
  • HTML
ADG701LBRTZ-REEL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 22, 2016

- 16_0021

Addition of Amkor Philippines as Alternate Assembly Site for 5L,6L and 8L SOT23 Packages

ADG701LBRJZ-500RL7

PRODUCTION

ADG701LBRJZ-REEL7

PRODUCTION

ADG701LBRTZ-REEL7

PRODUCTION

Feb 4, 2010

- 10_0009

Halogen Free Material Change for SOT_23 Products

ADG701LBRJZ-500RL7

PRODUCTION

ADG701LBRJZ-REEL7

PRODUCTION

ADG701LBRTZ-REEL7

PRODUCTION

Oct 26, 2015

- 15_0176

Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines

May 15, 2012

- 10_0006

Halogen Free Material Change for mini SOIC Products

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 22, 2016

- 16_0021

arrow down

Addition of Amkor Philippines as Alternate Assembly Site for 5L,6L and 8L SOT23 Packages

ADG701LBRJZ-500RL7

PRODUCTION

ADG701LBRJZ-REEL7

PRODUCTION

ADG701LBRTZ-REEL7

PRODUCTION

Feb 4, 2010

- 10_0009

arrow down

Halogen Free Material Change for SOT_23 Products

ADG701LBRJZ-500RL7

PRODUCTION

ADG701LBRJZ-REEL7

PRODUCTION

ADG701LBRTZ-REEL7

PRODUCTION

Oct 26, 2015

- 15_0176

arrow down

Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines

May 15, 2012

- 10_0006

arrow down

Halogen Free Material Change for mini SOIC Products

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

EVAL-6SOT23

Evaluation Board for 6 lead SOT23 Devices in the Switches/Multiplexers Portfolio

zoom

EVAL-6SOT23

Evaluation Board for 6 lead SOT23 Devices in the Switches/Multiplexers Portfolio

Evaluation Board for 6 lead SOT23 Devices in the Switches/Multiplexers Portfolio

Features and Benefits

  • 6 lead SOT-23 evaluation board
  • Clamp to allow the main device to be changed easily
  • Gold pin connectors to allow the addition of passive components
  • SMB connectors for the input/output of signals
  • Additional space on board to allow for prototypin

Product Detail

The EVAL-6SOT23EBZ evaluation board evaluates 6-lead SOT-23 devices in the Switches and Multiplexers Portfolio that are purchased separately. A clamp is supplied with the EVAL-6SOT23EBZ to secure a 6-lead SOT-23 device to the evaluation board without the need for soldering, making the board reusable for multiple devices.

A device can be clamped or soldered to the center of the evaluation board. Each pin of the device has a corresponding link from K1 to K6 that can be set to either VDD or GND. A wire screw terminal supplies VDD and GND. SMB connectors on the board allow additional external signals to be supplied to the device. In addition, there is space available at the top of the board for prototyping.

Full specifications of the device under test (DUT) are available in the corresponding product data sheet, which should be consulted in conjunction with user guide UG- 948 when using the evaluation board.
reference details image

EVAL-8MSOP

Evaluation Board for 8 lead MSOP Devices in the Switch/Mux Portfolio

zoom

EVAL-8MSOP

Evaluation Board for 8 lead MSOP Devices in the Switch/Mux Portfolio

Evaluation Board for 8 lead MSOP Devices in the Switch/Mux Portfolio

Features and Benefits

  • 8 lead MSOP evaluation board
  • Clamp to allow the main device to be changed easily
  • Gold pin connectors to allow the addition of passive components
  • SMB connectors for the input/output of signals
  • Additional space on board to allow for prototyping

Product Detail

The EVAL-8MSOPEBZ is the evaluation board for the 8 lead MSOP devices in the switch/mux portfolio which are to be purchased separately. A clamp is supplied with the board so that the device can be secured to the board without the need for soldering. This makes the board reusable for multiple devices.


The device can be clamped or soldered to the center of the evaluation board. Each pin of the device is broke out to a link that can be set to either VDD or GND and a wire screw terminal is provided to supply VDD and GND.  SMB connectors are on the board allow for additional external signals to be supplied to the device. In addition, there is space at the top of the board available for prototyping.


Full specifications of the device under test are available in the product data sheet, which should be consulted in conjunction with this user guide when using the evaluation board.

Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
