Features
- Latch-up proof
- 8 kV HBM ESD rating
- Low on resistance (13.5 Ω)
- ±9 V to ±22 V dual supply operation
- 9 V to 40 V single supply operation
- 48 V supply maximum ratings
- Fully specified at ±15 V, ±20 V, +12V and +36V
- VSS< to VDD< analog signal range
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

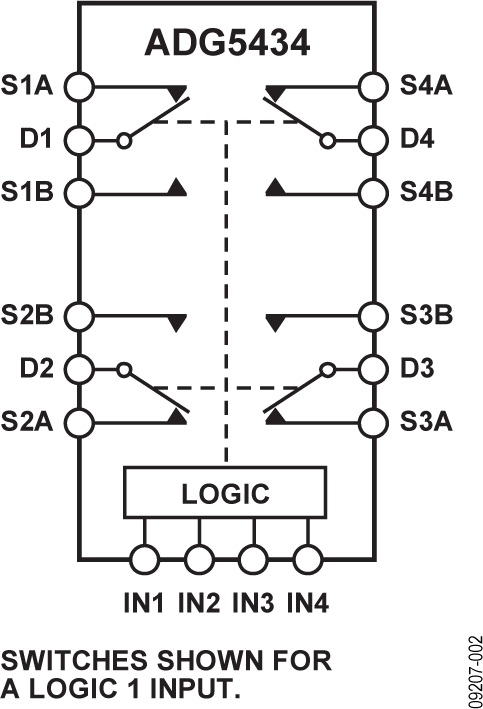

The ADG5433 and ADG5434 are monolithic industrial CMOS analog switches comprising three independently selectable single-pole, double-throw (SPDT) switches and four independently selectable SPDT switches, respectively.
All channels exhibit break-before-make switching action that prevents momentary shorting when switching channels. An EN input on the ADG5433 (LFCSP and TSSOP packages) is used to enable or disable the device. When disabled, all channels are switched off.
The ultralow on resistance and on resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications, where low distortion is critical.
APPLICATIONS
- Relay replacement
- Automatic test equipment
- Data acquisition
- Instrumentation
- Avionics
- Audio and video switching
- Communication systems
PRODUCT HIGHLIGHTS
- Trench isolation guards against latch-up. A dielectric trench separates the P and N channel transistors thereby preventing latch-up even under severe overvoltage conditions.
- Low RON.
- Dual-supply operation. For applications where the analog signal is bipolar, the ADG5433/ADG5434 can be operated from dual supplies up to ±22 V.
- Single-supply operation. For applications where the analog signal is bipolar, the ADG5433/ADG5434 can be operated from a single-rail power supply up to 40V.
- 3 V logic-compatible digital inputs: VINH = 2.0 V, VINL = 0.8 V.
- No VL logic power supply required.
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADG5434
Documentation
Filters
1 Applied
-
All
-
User Guide
-
Data Sheet
-
All
-
English
-
Japanese
Data Sheet
2
User Guide
1
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

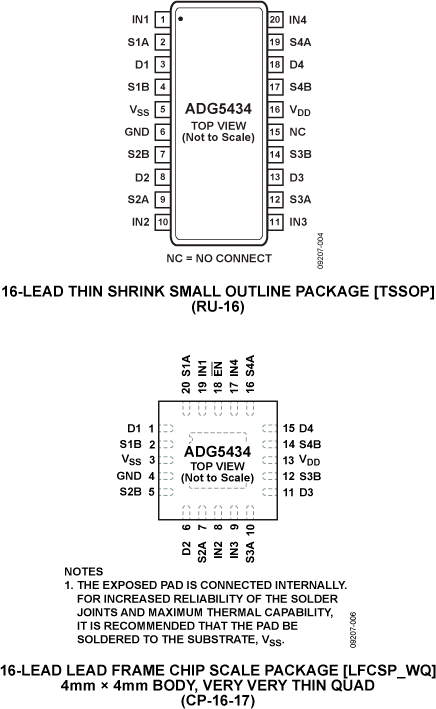

| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADG5434BCPZ-REEL7 |
20-Lead LFCSP (4mm x 4mm w/ EP)
|
|
|
| ADG5434BRUZ |
20-Lead TSSOP
|
|
|
| ADG5434BRUZ-REEL7 |
20-Lead TSSOP
|
|
- ADG5434BCPZ-REEL7
- Pin/Package Drawing
-
20-Lead LFCSP (4mm x 4mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADG5434BRUZ
- Pin/Package Drawing
-
20-Lead TSSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADG5434BRUZ-REEL7
- Pin/Package Drawing
-
20-Lead TSSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Aug 6, 2014
- 13_0230
Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China
ADG5434BCPZ-REEL7
PRODUCTION
Jun 7, 2011
- 11_0115
ADG5412/ADG5413/ADG5436/ADG5404/ADG5408/ADG5409/ADG5433/ADG5434 N-plug layer Edits
ADG5434BCPZ-REEL7
PRODUCTION
ADG5434BRUZ
PRODUCTION
ADG5434BRUZ-REEL7
PRODUCTION
Apr 5, 2021
- 21_0035
Amkor Philippines as an Alternate Site for TSSOP_4.4
ADG5434BRUZ
PRODUCTION
ADG5434BRUZ-REEL7
PRODUCTION
Jul 23, 2014
- 13_0241
Qualification of ASE Chungli as an Alternate Assembly Site for Select 16L, 20L and 24L TSSOP Packages
ADG5434BRUZ
PRODUCTION
ADG5434BRUZ-REEL7
PRODUCTION
Jan 20, 2012
- 11_0218
Halogen Free Material Change for Certain TSSOP Products at Carsem
ADG5434BRUZ
PRODUCTION
ADG5434BRUZ-REEL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Aug 6, 2014
- 13_0230
Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China
ADG5434BCPZ-REEL7
PRODUCTION
Jun 7, 2011
- 11_0115
ADG5412/ADG5413/ADG5436/ADG5404/ADG5408/ADG5409/ADG5433/ADG5434 N-plug layer Edits
ADG5434BCPZ-REEL7
PRODUCTION
ADG5434BRUZ
PRODUCTION
ADG5434BRUZ-REEL7
PRODUCTION
Apr 5, 2021
- 21_0035
Amkor Philippines as an Alternate Site for TSSOP_4.4
ADG5434BRUZ
PRODUCTION
ADG5434BRUZ-REEL7
PRODUCTION
Jul 23, 2014
- 13_0241
Qualification of ASE Chungli as an Alternate Assembly Site for Select 16L, 20L and 24L TSSOP Packages
ADG5434BRUZ
PRODUCTION
ADG5434BRUZ-REEL7
PRODUCTION
Jan 20, 2012
- 11_0218
Halogen Free Material Change for Certain TSSOP Products at Carsem
ADG5434BRUZ
PRODUCTION
ADG5434BRUZ-REEL7
PRODUCTION
Software & Part Ecosystem
Evaluation Kits 1
EVAL-24TSSOP
Evaluation Board for 24-Lead TSSOP Devices in the Switches and Multiplexers Portfolio
Product Detail
The EVAL-24TSSOPEBZ evaluation board evaluates 24-lead TSSOP devices in the Switches and Multiplexers Portfolio that are purchased separately. A clamp is supplied with the EVAL-24TSSOPEBZ to secure a 24-lead TSSOP device to the evaluation board without the need for soldering, making the board reusable for multiple devices.
A 24-lead TSSOP device can be clamped or soldered to the center of the evaluation board. Each pin of the device has a corresponding link from K1 to K24 that can be set to either VDD or GND. A wire screw terminal supplies VDD and GND. SMB connectors on the board allow additional external signals to be supplied to the device. In addition, there is space available at the top of the board for prototyping.
Full specifications of the device under test (DUT) are available in the corresponding product data sheet, which should be consulted in conjunction with this user guide when using the evaluation board.
