ADG5248F
User Defined Fault Protection and Detection, 0.8 pC QINJ, 8:1 Multiplexer
Show More
Not the part you were looking for?
3
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- User defined secondary supplies set overvoltage level
- Overvoltage protection up to −55 V and +55 V
- Power-off protection up to −55 V and +55 V
- Overvoltage detection on source pins
- Minimum secondary supply level: 4.5 V single-supply
- Interrupt flags indicate fault status
- Low charge injection (QINJ): 0.8 pC
- Low drain/source on capacitance: 19 pF
- Latch-up immune under any circumstance
- Known state without digital inputs present
- VSS to VDD analog signal range
- ±5 V to ±22 V dual-supply operation
- 8V to 44 V single-supply operation
- Fully specified at ±15 V, ±20 V, +12 V, and +36 V
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADG5248F and ADG5249F are 8:1 and dual 4:1 analog multiplexers. The ADG5248F switches one of eight inputs to a common output and the ADG5249F switches one of four differential inputs to a common differential output. Each channel conducts equally well in both directions when on, and each channel has an input signal range that extends to the supplies. The primary supply voltages define the on-resistance profile, whereas the secondary supply voltages define the voltage level at which the overvoltage protection engages.
When no power supplies are present, the channel remains in the off condition, and the switch inputs are high impedance. Under normal operating conditions, if the analog input signal levels on any Sx pin exceed positive fault voltage (POSFV) or negative fault voltage (NEGFV) by a threshold voltage (VT), the channel turns off and that Sx pin becomes high impedance. If the switch is selected to be on, then the drain pin is pulled to the secondary supply voltage that was exceeded. Input signal levels up to +55 V or −55 V relative to ground are blocked, in both the powered and unpowered condition.
The low capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch switching and fast settling times are required.
Note that, throughout this data sheet, multifunction pins, such as A0/F2, are referred to either by the entire pin name or by a single function of the pin, for example, A0, when only that function is relevant.
APPLICATIONS
- Analog input/output modules
- Process control/distributed control systems
- Data acquisition
- Instrumentation
- Avionics
- Automatic test equipment
- Communication systems
- Relay replacement
3
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADG5248F
Documentation
Filters
1 Applied
-
All
-
Application Note
-
User Guide
-
Data Sheet
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
2
Application Note
3
328.29 K
184.23 K
User Guide
1
Documentation
Data Sheet 1
User Guide 1
Application Note 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADG5248FBCPZ-RL7 |

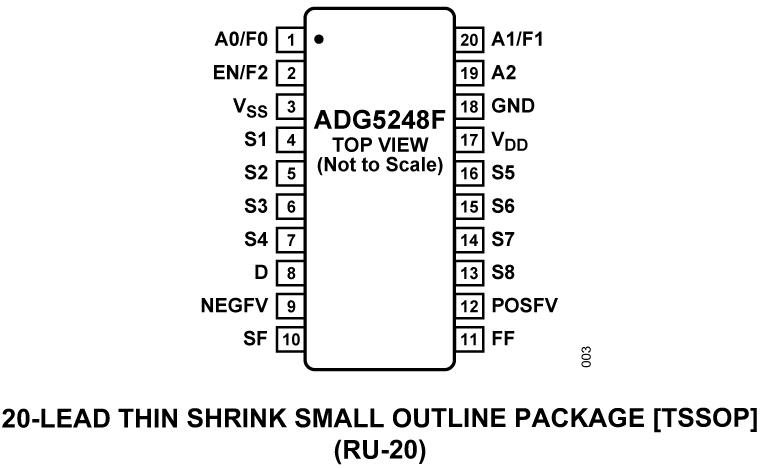

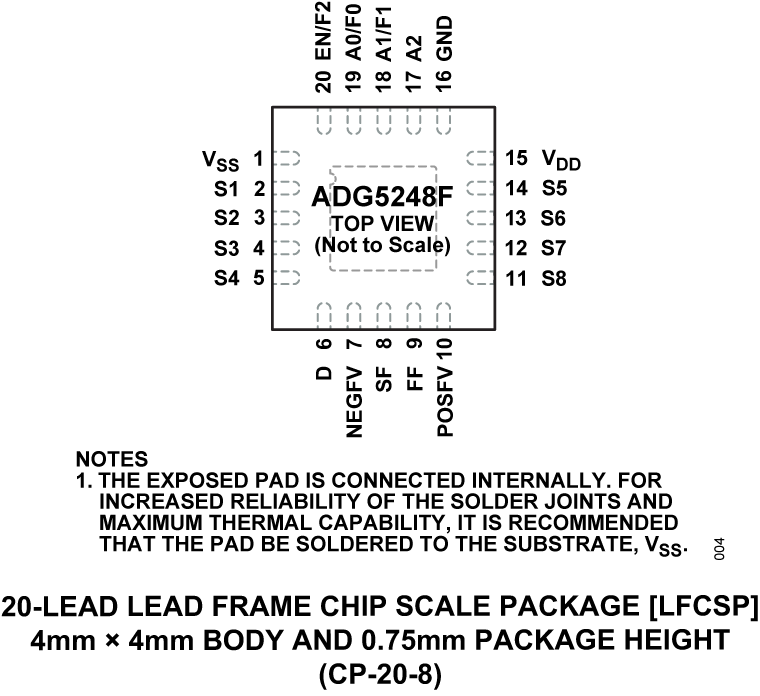

20-Lead LFCSP (4mm x 4mm w/ EP)
|
|
|
| ADG5248FBRUZ |
20-Lead TSSOP
|
|
|
| ADG5248FBRUZ-RL7 |
20-Lead TSSOP
|
|
- ADG5248FBCPZ-RL7
- Pin/Package Drawing
-
20-Lead LFCSP (4mm x 4mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADG5248FBRUZ
- Pin/Package Drawing
-
20-Lead TSSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADG5248FBRUZ-RL7
- Pin/Package Drawing
-
20-Lead TSSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Mar 6, 2023
- 23_0010
ADG5208F, ADG5209F, ADG5243F, ADG5248F, ADG5249F Datasheet Specification Change
ADG5248FBCPZ-RL7
PRODUCTION
ADG5248FBRUZ
PRODUCTION
ADG5248FBRUZ-RL7
PRODUCTION
Dec 2, 2022
- 22_0051
ADG5208F Family Die Revision
ADG5248FBCPZ-RL7
PRODUCTION
ADG5248FBRUZ
PRODUCTION
ADG5248FBRUZ-RL7
PRODUCTION
Apr 14, 2021
- 19_0147
CANCELLED: ADG5208F Family Die Revision
ADG5248FBCPZ-RL7
PRODUCTION
ADG5248FBRUZ
PRODUCTION
ADG5248FBRUZ-RL7
PRODUCTION
Apr 5, 2021
- 21_0035
Amkor Philippines as an Alternate Site for TSSOP_4.4
ADG5248FBRUZ
PRODUCTION
ADG5248FBRUZ-RL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Mar 6, 2023
- 23_0010
ADG5208F, ADG5209F, ADG5243F, ADG5248F, ADG5249F Datasheet Specification Change
ADG5248FBCPZ-RL7
PRODUCTION
ADG5248FBRUZ
PRODUCTION
ADG5248FBRUZ-RL7
PRODUCTION
Dec 2, 2022
- 22_0051
ADG5208F Family Die Revision
ADG5248FBCPZ-RL7
PRODUCTION
ADG5248FBRUZ
PRODUCTION
ADG5248FBRUZ-RL7
PRODUCTION
Apr 14, 2021
- 19_0147
CANCELLED: ADG5208F Family Die Revision
ADG5248FBCPZ-RL7
PRODUCTION
ADG5248FBRUZ
PRODUCTION
ADG5248FBRUZ-RL7
PRODUCTION
Apr 5, 2021
- 21_0035
Amkor Philippines as an Alternate Site for TSSOP_4.4
ADG5248FBRUZ
PRODUCTION
ADG5248FBRUZ-RL7
PRODUCTION
Software & Part Ecosystem
Evaluation Kits 1
EVAL-ADG5248F
ADG5248F Evaluation Board
Features and Benefits
- Supply voltages
Dual supply: ±5 V to ±22 V
Single supply: 8 V to 44 V - Protected against overvoltage on source pins
Signal voltages up to −55 V and +55 V - LEDs for visual overvoltage indication
- Parallel interface compatible with 3 V logic
- On-board LDO regulator for digital supply and control, if required
Product Detail
The EVAL-ADG5248FEBZ, is the evaluation board for the ADG5248F, which features an overvoltage protected 8:1 Multiplexer. The ADG5248F has overvoltage detection and protection circuitry on the source pins and is protected against signals up to −55 V and +55 V in both the powered and unpowered states.
The ADG5248F is soldered to the center of the evaluation board, and wire screw terminals are provided to connect to each of the source and drain pins. Three screw terminals are used to power the device, with a fourth terminal used to provide a user defined digital logic supply voltage, if required. Alternatively, a low dropout (LDO) regulator is provided for 5 V digital logic supply and to supply the LEDs, which are mounted to provide visual indication of the fault status of the switch.
Full specifications on the ADG5248F are available in the product data sheet, which should be consulted in conjunction with this user guide when using the evaluation board.
