ADG452

PRODUCTION

LC²MOS 5Ω R_ON SPST Switch

Data Sheet (Rev. C) Product Selection Table

Part Models: 7
1ku List Price: Starting From $3.08

Viewing:

Overview

Low On-Resistance (4 O)
On-Resistance Flatness 0.2 O
44 V Supply Maximum Ratings
± 15 V Analog Signal Range
Fully Specified @ ±5V, +12V, ±15V
Ultralow Power Dissipation (18 µW)
ESD 2 kV
Continuous Current 100mA

Fast Switching Times
t_on < 70 ns
t_off < 60 ns
TTL/CMOS-Compatible Inputs
Pin Compatible Upgrade for
ADG412 and ADG432
16-Lead DIP, SOIC and Cerdip
Packages

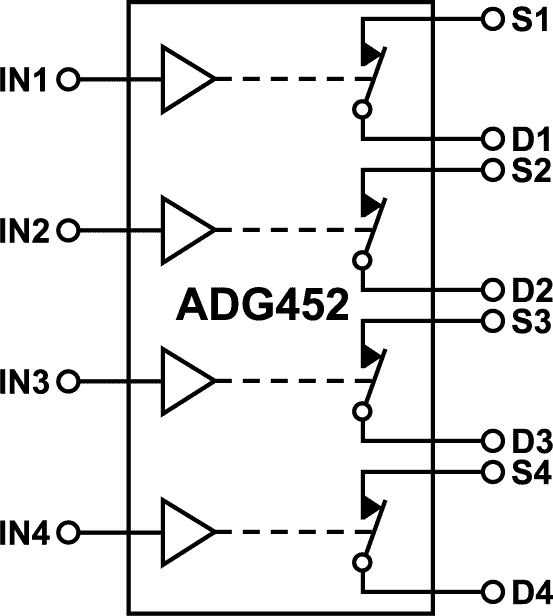

The ADG452 is a monolithic CMOS device comprising four independently selectable switches. It is designed on an enhanced LC²MOS process which provides low power dissipation yet gives high switching speed and low on resistance.

The ADG452 switches are turned on with a logic high on the appropriate control input. Each switch conducts equally well in both directions when ON and each has an input signal range that extends to the supplies. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.

Part Models: 7
1ku List Price: Starting From $3.08

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADG452BNZ	16-Lead PDIP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADG452BRUZ	16-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADG452BRUZ-REEL	16-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADG452BRUZ-REEL7	16-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADG452BRZ	16-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADG452BRZ-REEL	16-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADG452BRZ-REEL7	16-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Mar 29, 2021 - 21_0033 Assembly Site Transfer for 14/16L 300_MIL PDIP to Cirtek
		PCN21_0033_Form Material_Report Detailed Change Description Qualification Results Summary
ADG452BNZ
Aug 19, 2009 - 07_0024 Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
		Material_Report Material_Report Parts List PCN07_0024_Form Qual Data
ADG452BNZ
Apr 5, 2021 - 21_0035 Amkor Philippines as an Alternate Site for TSSOP_4.4
		PCN21_0035_Form Material_Report Qualification Results Summary Other
ADG452BRUZ
ADG452BRUZ-REEL	PRODUCTION
ADG452BRUZ-REEL7
Jan 20, 2012 - 11_0218 Halogen Free Material Change for Certain TSSOP Products at Carsem
		PCN11_0218_Form Material_Report Qualification Report Summary
ADG452BRUZ
ADG452BRUZ-REEL	PRODUCTION
ADG452BRUZ-REEL7
Oct 5, 2010 - 10_0146 Halogen Free Material Change for 14/16L SOIC_N Products
		PCN10_0146_Form Material_Report AEC-Q100 Reliability Report ADI0012 Reliability Report
ADG452BRZ
ADG452BRZ-REEL
ADG452BRZ-REEL7
Feb 8, 2010 - 04_0080 Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
		PCN04_0080_Form Material_Report Reliability Report Reliability Report
ADG452BRZ
ADG452BRZ-REEL
ADG452BRZ-REEL7

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

ADG452

SPICE Model 1

ADG452 SPICE Macro Model

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluation Board for 16 lead TSSOP Devices in the Switch/Mux Portfolio

Buy Now View Details

Features and Benefits

16 lead TSSOP evaluation board
Clamp to allow the main device to be changed easily
Gold pin connectors to allow the addition of passive components
SMB connectors for the input/output of signals
Additional space on board to allow for prototyping

Product Details

The EVAL-16TSSOPEBZ evaluation board evaluates 16-lead TSSOP devices in the Switches and Multiplexers Portfolio that are purchased separately. A clamp is supplied with the EVAL-16TSSOPEBZ to secure a 16-lead TSSOP device to the evaluation board without the need for soldering, making the board reusable for multiple devices.

A 16-lead TSSOP device can be clamped or soldered to the center of the evaluation board. Each pin of the device has a corresponding link from K1 to K16 that can be set to either VDD or GND. A wire screw terminal supplies VDD and GND. SMB connectors on the board allow additional external signals to be supplied to the device. In addition, there is space available at the top of the board for prototyping.

Full specifications of the device under test (DUT) are available in the corresponding product data sheet, which should be consulted in conjunction with this user guide when using the evaluation board.

Resources

UG-945: Evaluation Board for 16-Lead TSSOP Devices in the Switches and Multiplexers Portfolio (Rev.0)
5/4/2016
