ADG436

PRODUCTION

LC²MOS ±15 V Dual SPDT Switch

Data Sheet (Rev. B) Product Selection Table

Part Models: 3
1ku List Price: Starting From $3.48

Viewing:

Overview

44 V Supply Maximum Ratings
V_SS to V_DD Analog Signal Range
Low On-Resistance (12 Ω typ)
Low Δ Ron (3 Ω Max)
Low Ron Match (2.5 Ω Max)
Low Power Dissipation
Low Leakage Currents (5 nA Max)

Fast Switching Times
t_on < 175 ns
t_off < 145 ns
Low Charge Injection (10 pC)
Break-Before-Make Switching Action

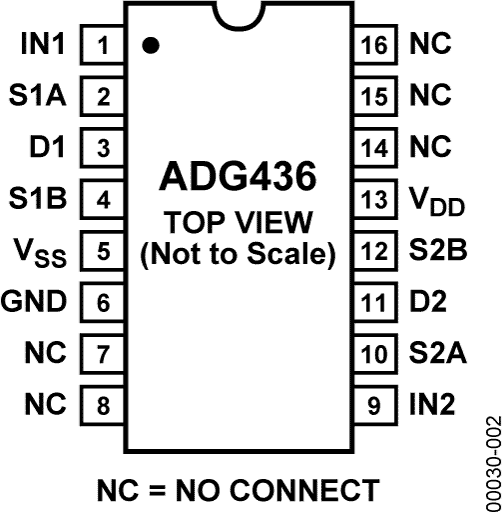

16-Lead DIP and SOIC Packages

The ADG436 is a monolithic CMOS device comprising two independently selectable SPDT switches. It is designed on an LC²MOS process which provides low power dissipation yet gives high switching speed and low on resistance.

Each switch conducts equally well in both directions when ON and has an input signal range which extends to the power supplies. In the OFF condition, signal levels up to the supplies are blocked. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.

Part Models: 3
1ku List Price: Starting From $3.48

Documentation

Data Sheet 1

ADG436: Dual SPDT Switch Data Sheet (Rev.B) 05/14/2010

Technical Articles 3

Temperature monitor measures three thermal zones 12/11/2003

Data-acquisition system uses fault protection 04/15/2004

Enhanced Multiplexing for MEMS Optical Cross Connects 08/01/2003

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADG436BNZ	16-Lead PDIP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADG436BRZ	16-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADG436BRZ-REEL	16-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Mar 29, 2021 - 21_0033 Assembly Site Transfer for 14/16L 300_MIL PDIP to Cirtek
		PCN21_0033_Form Material_Report Detailed Change Description Qualification Results Summary
ADG436BNZ	PRODUCTION
Feb 8, 2010 - 04_0080 Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
		PCN04_0080_Form Material_Report Reliability Report Reliability Report
ADG436BNZ	PRODUCTION
ADG436BRZ	PRODUCTION
ADG436BRZ-REEL	PRODUCTION
Aug 19, 2009 - 07_0024 Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
		Material_Report Material_Report Parts List PCN07_0024_Form Qual Data
ADG436BNZ	PRODUCTION
Mar 25, 2021 - 21_0080 Amkor Philippines as an Alternate Site for SOICN
		PCN21_0080_Form Material_Report Qualification Results Summary Other
ADG436BRZ	PRODUCTION
ADG436BRZ-REEL	PRODUCTION
Feb 6, 2014 - 13_0234 Qualification of ASE Chungli, as an Alternate Assembly Site for Select 16L SOICN Packages
		PCN13_0234_Form Material_Report Detailed Change Description Qualification Report Summary
ADG436BRZ	PRODUCTION
ADG436BRZ-REEL	PRODUCTION
Oct 5, 2010 - 10_0146 Halogen Free Material Change for 14/16L SOIC_N Products
		PCN10_0146_Form Material_Report AEC-Q100 Reliability Report ADI0012 Reliability Report
ADG436BRZ	PRODUCTION
ADG436BRZ-REEL	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

ADG436

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
