ADG1704

RECOMMENDED FOR NEW DESIGNS

Low Voltage, 2.4Ω 4:1 Multiplexer in 2mm × 2mm LGA Package

Viewing:

Overview

  • ±1.08V to ±2.75V dual supply
  • +1.08V to +5.5V single supply
  • Low on resistance 2.4Ω
  • 16-lead, 2mm × 2mm LGA
  • 1.8V and 3V JEDEC compliant logic
  • Fully specified at +5V, +3.3V, +1.8V, and ±2.5V
  • Rail-to-rail signal range
  • −40°C to +125°C operating temperature range

The ADG1704 is an analog 4:1 multiplexer and operates with a lowvoltage single supply range from +1.08V to +5.5V or a low-voltage dual supply range from ±1.08V to ±2.75V. An EN input is used to disable all of the switches.

The ADG1704 is designed for small size without compromising on performance. The 2mm × 2mm land grid array (LGA) package is ideal for a broad range of applications where area is a concern.

The ADG1704 has a low on resistance of just 2.4Ω and a rail-to-rail input signal range. Each channel conducts equally well in both directions when on. The switches are turned on with a Logic 1 input on the corresponding digital control line, and the digital control inputs are 1.8V and 3V JEDEC compliant for ease of use with microcontrollers and field programmable gate arrays (FPGAs).

APPLICATIONS

  • Automated test equipment
  • Data acquisition systems
  • Medical equipment
  • FPGA and microcontroller systems
  • Audio and video signal routing
  • Communications systems
  • Relay replacement

ADG1704
Low Voltage, 2.4Ω 4:1 Multiplexer in 2mm × 2mm LGA Package
ADG1704 Functional Block Diagram ADG1704 Pin Configuration ADG1704 Chip Illustration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations


Evaluation Kits

eval board
EVAL-ADG1704

Evaluating the ADG1704, 2.4Ω Dual SPDT Switch

Features and Benefits

  • ±1.08V to ±2.75V dual supply
  • +1.08V to +5.5V single supply
  • Low on resistance, 2.4Ω
  • 16-lead, 2mm × 2mm LGA package
  • 1.8V JEDEC compliant logic
  • Fully specified at +5V, +3.3V, +1.8V, and ±2.5V
  • Rail-to-rail signal range

Product Details

The EVAL-ADG1704ARDZ is the evaluation board for the ADG1704. The ADG1704 is an analog 4:1 multiplexer and operates with a low-voltage single supply range from +1.08V to +5.5V or a low-voltage dual supply range from ±1.08V to ±2.75V. An EN input is used to disable all of the switches.

The ADG1704 is designed for small size without compromising on performance. The 2mm × 2mm land grid array (LGA) package is ideal for a broad range of applications where area is a concern.

The ADG1704 has a low on resistance of just 2.4Ω and a rail-to-rail input signal range. Each switch conducts equally well in both directions when on. The switches are turned on with a Logic 1 input on the corresponding digital control line, and the digital control inputs are 1.8V JEDEC compliant for ease of use with microcontrollers and field programmable gate arrays (FPGAs).

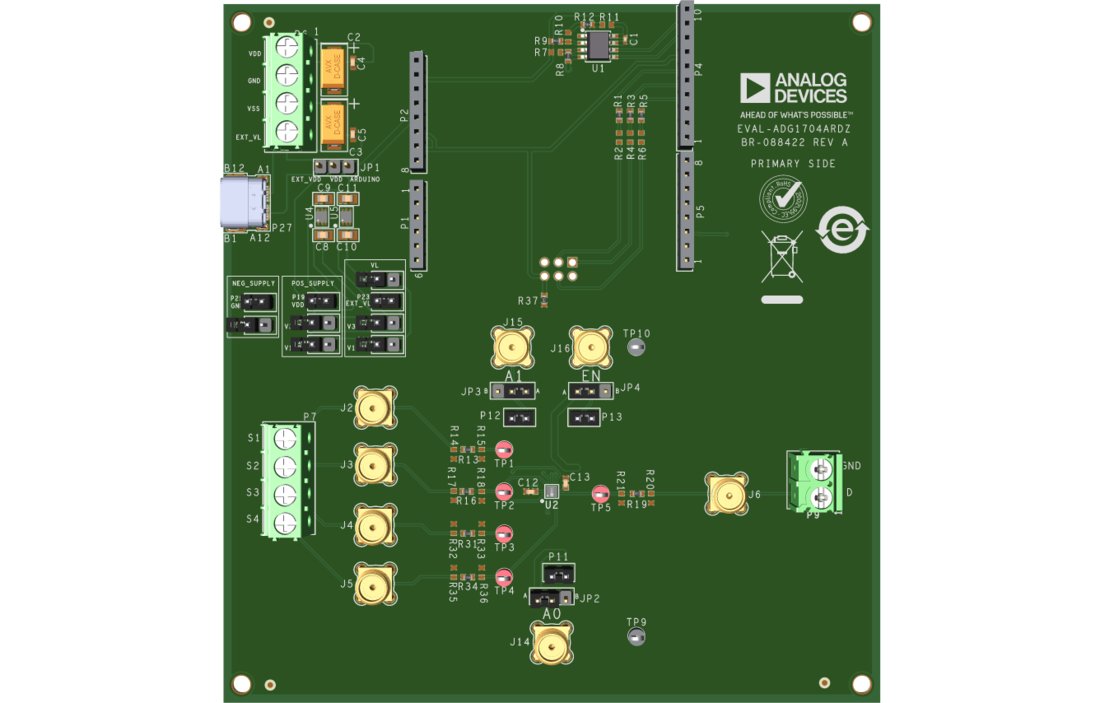

Figure 1 in the User Guide shows the EVAL-ADG1704ARDZ evaluation board. The ADG1704 is located in the center of the evaluation board. Wire screw terminals are provided to connect to each of the source and drain pins as well as optional Subminiature Version A (SMA) connectors. There are multiple power options on the board for providing power supplies to the evaluation board. A four terminal screw connector can be used to provide VDD, VSS, GND, and VL connections directly to the ADG1704 from an external power supply. Alternatively, on board 3.3V and 1.8V voltage regulators are supplied to provide options for VDD and VL. The on-board voltage regulators can be powered from one of three options, the external 5V supply via the screw terminal, from the 5V USB Type-C connector on the evaluation board, or using an available 5V supply from a connected SDP-K1 or compatible Arduino board.
