ADG1309

4-Channel ±15 V/+12 V Multiplexer

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 3
1ku List Price Starting From $1.78
Features
  • 33 V Supply Range
  • 130 Ω on Resistance
  • Fully Specified at ±15 V/+12 V
  • 3 V Logic-compatible Inputs
  • Rail-to-rail Operation
  • Break-before-make Switching Action

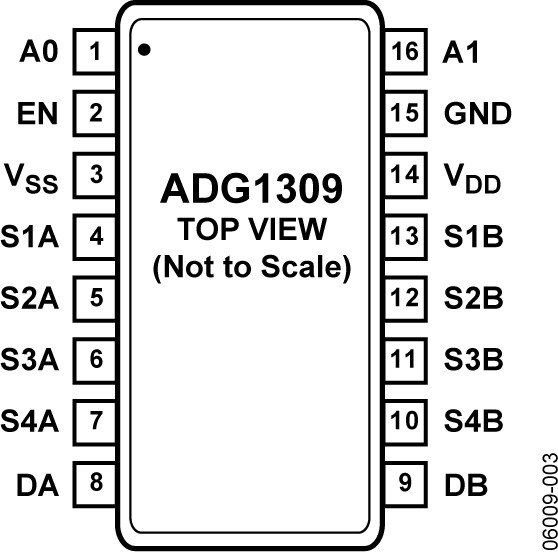

  • 16-lead TSSOP and 16-lead SOIC_N
  • Upgrade for the ADG508A/ADG509A
Additional Details
show more Icon

The ADG1308 and ADG1309 are monolithic analog multiplexers consisting of eight single channels and four differential channels, respectively. The ADG1308 switches one of eight inputs to a common output as determined by the 3-bit binary address lines A0, A1, and A2. The ADG1309 switches one of four differential inputs to a common differential output as determined by the 2-bit binary address lines A0 and A1. An EN input on both devices is used to enable or disable the device. When disabled, all channels are switched off.

When the switches are on, each switch conducts equally well in both directions and has an input signal range that extends to the power supplies. In the off condition, signal levels up to the supplies are blocked. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is the low charge injection for minimum transients when switching the digital inputs.

Fast switching speed coupled with high signal bandwidth makes the parts suitable for video signal switching. CMOS construction ensures ultra low power dissipation, making the parts ideally suited for portable and battery-powered instruments.

APPLICATIONS

  • Audio and Video Routing
  • Test Equipment
  • Data Acquisition Systems
  • Battery-powered Systems
  • Communication Systems
  • Signal Routing
Part Models 3
1ku List Price Starting From $1.78

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADG1309BRUZ
  • HTML
  • HTML
ADG1309BRUZ-REEL7
  • HTML
  • HTML
ADG1309BRZ-REEL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 5, 2021

- 21_0035

Amkor Philippines as an Alternate Site for TSSOP_4.4

Jan 20, 2012

- 11_0218

Halogen Free Material Change for Certain TSSOP Products at Carsem

Jan 27, 2009

- 09_0013

Changes to Idd Specifications on ADG12xx, ADG14xx and ADG13xx datasheets

ADG1309BRUZ

PRODUCTION

ADG1309BRUZ-REEL7

PRODUCTION

ADG1309BRZ-REEL7

PRODUCTION

Oct 13, 2008

- 06_0084

Qualification of the 8" H Wafer Fab process at Analog Devices, Limerick, Ireland.

ADG1309BRUZ

PRODUCTION

ADG1309BRUZ-REEL7

PRODUCTION

Mar 25, 2021

- 21_0080

Amkor Philippines as an Alternate Site for SOICN

Feb 6, 2014

- 13_0234

Qualification of ASE Chungli, as an Alternate Assembly Site for Select 16L SOICN Packages

Oct 5, 2010

- 10_0146

Halogen Free Material Change for 14/16L SOIC_N Products

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 5, 2021

- 21_0035

arrow down

Amkor Philippines as an Alternate Site for TSSOP_4.4

Jan 20, 2012

- 11_0218

arrow down

Halogen Free Material Change for Certain TSSOP Products at Carsem

Jan 27, 2009

- 09_0013

arrow down

Changes to Idd Specifications on ADG12xx, ADG14xx and ADG13xx datasheets

ADG1309BRUZ

PRODUCTION

ADG1309BRUZ-REEL7

PRODUCTION

ADG1309BRZ-REEL7

PRODUCTION

Oct 13, 2008

- 06_0084

arrow down

Qualification of the 8" H Wafer Fab process at Analog Devices, Limerick, Ireland.

ADG1309BRUZ

PRODUCTION

ADG1309BRUZ-REEL7

PRODUCTION

Mar 25, 2021

- 21_0080

arrow down

Amkor Philippines as an Alternate Site for SOICN

Feb 6, 2014

- 13_0234

arrow down

Qualification of ASE Chungli, as an Alternate Assembly Site for Select 16L SOICN Packages

Oct 5, 2010

- 10_0146

arrow down

Halogen Free Material Change for 14/16L SOIC_N Products

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-16TSSOP

Evaluation Board for 16 lead TSSOP Devices in the Switch/Mux Portfolio

zoom

EVAL-16TSSOP

Evaluation Board for 16 lead TSSOP Devices in the Switch/Mux Portfolio

Evaluation Board for 16 lead TSSOP Devices in the Switch/Mux Portfolio

Features and Benefits

  • 16 lead TSSOP evaluation board
  • Clamp to allow the main device to be changed easily
  • Gold pin connectors to allow the addition of passive components
  • SMB connectors for the input/output of signals
  • Additional space on board to allow for prototyping

Product Detail

The EVAL-16TSSOPEBZ evaluation board evaluates 16-lead TSSOP devices in the Switches and Multiplexers Portfolio that are purchased separately. A clamp is supplied with the EVAL-16TSSOPEBZ to secure a 16-lead TSSOP device to the evaluation board without the need for soldering, making the board reusable for multiple devices.

A 16-lead TSSOP device can be clamped or soldered to the center of the evaluation board. Each pin of the device has a corresponding link from K1 to K16 that can be set to either VDD or GND. A wire screw terminal supplies VDD and GND. SMB connectors on the board allow additional external signals to be supplied to the device. In addition, there is space available at the top of the board for prototyping.

Full specifications of the device under test (DUT) are available in the corresponding product data sheet, which should be consulted in conjunction with this user guide when using the evaluation board.
