Features and Benefits
- 12-bit, 45 MHz ADC
- CDS with variable gain
- 0 dB to 36 dB, 10-bit VGA
- Black level clamp with variable level control
- Precision Timing core with 174 ps resolution
- Integrated, 7-channel H-driver and RG clock drivers
- 7-channel LD driver
- Integrated 16-channel V-driver
- Complete on-chip ISA timing generator
- I2C serial interface
- MIPI CSI-2 transmit interface with support for 1 or 2 data lanes
- On-chip driver for external crystal
- 8 GPOs
- 6 mm × 6 mm, 117-ball WLCSP package with 0.5 mm pitch
The ADDI9036 is a complete, 45 MHz, front-end solution for charge coupled device (CCD) time of flight (TOF) imaging applications. The ADDI9036 includes an analog front end (AFE), a programmable instruction set architecture (ISA) timing generator (ISATG), a 7-channel laser diode (LD) driver, a 7-channel H-driver, and a 16-channel vertical driver (V-driver). The Precision Timing® core allows adjustment of the CCD horizontal clocks and LD outputs with approximately 174 ps resolution at 45 MHz operation.
The AFE includes black level clamping, a correlated double sampler (CDS), a variable gain amplifier (VGA), and a 12-bit analog-to-digital converter (ADC). The AFE data is output through the MIPI® CSI-2 transmit interface.
The internal registers can be programmed by an I2C serial interface.
The ADDI9036 is packaged in a 6 mm × 6 mm, 117-ball WLCSP and is specified over an operating temperature range of −20°C to +85°C.
- TOF CCD cameras
Markets and Technologies
Complete documentation is available upon completion of a Non-Disclosure Agreement (NDA) (PDF). Send your completed forms by e-mail to firstname.lastname@example.org. Please note the following:
- Technical support of the documentation will be limited to qualified customers who fulfill certain qualifications which would include, but not limited to the following: technical knowledge regarding TOF / optics / imaging systems and annual business potential;
- Analog Devices is allied with various design partners who have expertise in developing custom TOF designs for various markets.
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (3)
The AD-3DSMARTCAM1-PRZ is a 2D & 3D machine vision solution with AI edge processing capabilities. It can be used for implementing advanced machine vision applications for different industry segments including logistics, robotics, agriculture and people activity monitoring.
An open-source SDK that accompanies the hardware platform enables configuring the camera and extracting depth, IR and RGB data from the camera on the host system of your choice. Windows and Linux support are built into the SDK as well as sample code and wrappers for various languages including Python, C/C++ and MATLAB. The SDK also integrates with 3rd party technologies like OpenCV, Open3D and RoS.
- Building Management
- People Activity Monitoring
|3D ToF sensor||FoV 90x60, Range: 4m, Resolution 640x480 @ 30fps|
|RGB sensor||FoV 128x68, Range 6m, Resolution 1920x1080 @ 30fps|
|WiFi||802.11a/b/g/n/ac, 867Mbps with dual stream in 802.11n, 2x2 Access Points with MIMO standard|
|Ethernet (optional)||1xRJ45 10M/100M/1G self-adaptive Ethernet port|
|Bluetooth 5.0||Bluetooth Class 1 or Class2 transmitter operation, Adaptive frequency hopping|
|External power||12V DC @ 2A|
|Power over Ethernet (optional)||PoE+ IEEE802.3-2012, max 20W|
|Temperature Range||-25C to 60C|
|CPU||Quad-core ARM A57 @ 1.43 GHz|
|Memory||4 GB 64-bit LPDDR4 25.6 GB/s|
|Safety, EMC, Environment||Eye safe and conforms to necessary regional standards|
Features & Benefits
- 3D and 2D sensing
- AI Edge processing capability
- WiFi and Gigabit Ethernet connectivity
- Open Source SDK with Windows and Linux support

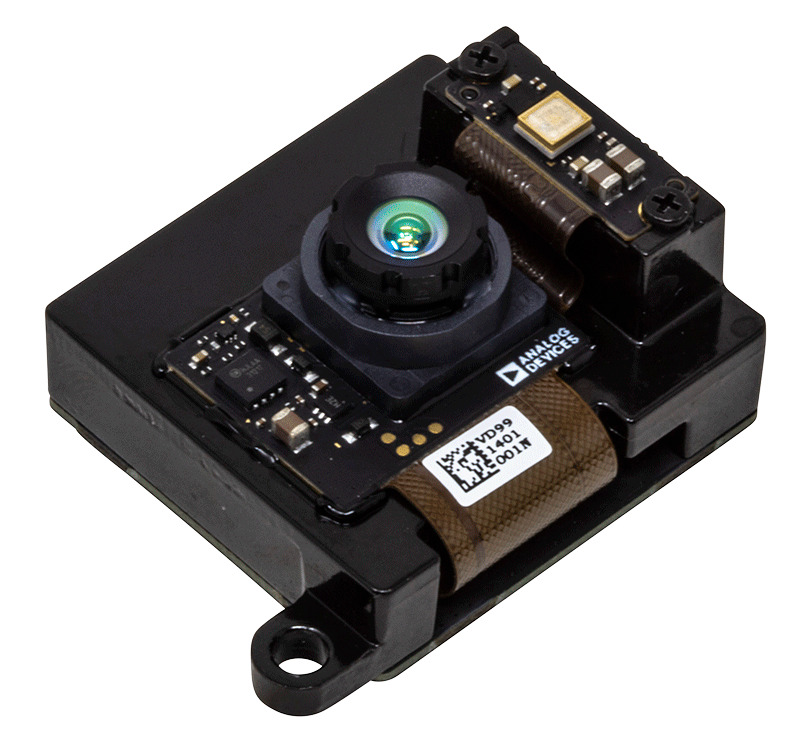

The AD-FXTOF1-EBZ is a proven hardware platform for depth sensing. It is fully compatible with the existing ADI 3DTOF Open Source SDK and prototyping software platform.
It can be used with existing ADI algorithms for use cases around people detection, occupancy and activity sensing, objects detection and classification, autonomous and service robots, volumetric measurement for logistics and industrial applications and many other machine vision applications.
The kit contains an interposer board to adapt the 25-pin interface of the ToF module to a 15-pin interface compatible with popular development systems such as the Raspberry PI, Nvidia Jetson Nano or Nvidia Xavier NX.
Features & Benefits
The AD-FXTOF1-EBZ is a depth sensing solution, ideal for developing 3D computer vision systems. It uses a VGA CCD that enables the capture of a 640×480 depth map of a scene at 30 frames per second, providing up to 4× higher resolution than many other TOF systems on the market. This enables the detection and measurement of distances to smaller and thinner objects that would otherwise be invisible to other ToF systems. More information is included in our ToF technology page.
- Output: Depth & IR images @ 640 × 480 pixels (VGA), 30fps
- Distance sensing range: up to 3m
- Measurement accuracy: typical < 2% of the measured distance
- Connectivity: 2 lanes MIPI CSI-2, 25 pin flex cable or 15 pin flex cable via an interposer board
- Supply: 5V @ 2000mA
- Optics: 940nm VCSEL, FOV: 87°x67°; AR coated lens with 940 BPF, FoV: 87°×67°
- Operating temperature: -20°C ~ 75°C
- Tested for shock & vibe, temperature & humidity, drop
- Certified Eye safe in accordance with IEC 60825-1:2014 & 2007
- Compatible with Analog Devices open source 3D ToF SDK
The AD-96TOF1-EBZ is a proven hardware platform for depth perception. When paired with processor board from the 96Boards eco system, it can be used for 3D software and algorithm development. While the software and algorithms are being developed, the hardware design can be leveraged for productization. ADI can suggest 3rd party developers to help customize the platform to meet individual application needs.
Depending on customer preferences and development experience, different 96Boards processor boards can be used for overall system evaluation and custom development. There is also a Raspberry Pi interface available on the Mezzanine board for extra customer flexibility.
This solution offers the ability to be very small and low power while measuring depth at up to 6m distances, good outdoor and indoor performance and VGA resolution.
It can be used for applications like:
- Industrial automation
- SLAM (Simultaneous Localization and Mapping)
- Augmented Reality
- Virtual Reality
- Automotive sensing
Features & Benefits
The ADI ToF system uses a VGA CCD that enables the user to capture a 640x480 depth map of an image, providing up to 4x higher resolution than many other TOF systems on the market. This enables users to detect and measure the distance to smaller and thinner objects that would otherwise be invisible to other ToF systems. More information is included in our ToF technology page.
- Range: <6m
- FoV: 90° x 69.2°
- Wavelength 940nm
- Near: 25cm – 80cm
- Medium: 30cm – 4.5m
- Far: 3m – 6m
- Accuracy < 2% for all ranges
- Frame Rate: 30 fps max (dependent on application processor, OS and interface to host computer)
- Resolution: 640 x 480 pixels
- Multiple interface options to PC (USB, ETH, WiFi)
- ToF specific API for system control & data acquisition
- Operating system for Linux, Windows, Mac
- Complete open source software framework: wrappers for MATLAB®, Python, RobotOS
- Platform allows for software/algorithm development while hardware can be optimized
- 3rd Party network to help modify platform for individual production needs
Documentation & Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|ADDI9036BCBZRL||Material Declaration||Reliability Data||117-Ball WLCSP (6.04 mm x 6.12 mm x 0.60 mm)|
|Wafer Fabrication Data|
