  5. AD9985

Alternative Parts


Features and Benefits

  • Automated clamping level adjustment
  • 140 MSPS maximum conversion rate
  • 300 MHz analog bandwidth
  • 0.5 V to 1.0 V analog input range
  • 500 ps p-p PLL clock jitter at 110 MSPS
  • 3.3 V power supply
  • Full sync processing
  • Sync detect for hot plugging
  • Midscale clamping
  • Power-down mode
  • Low power: 500 mW typical
  • 4:2:2 output format mode

Product Details

The AD9985 is a complete 8-bit, 140 MSPS, monolithic analog interface optimized for capturing RGB graphics signals from personal computers and workstations. Its 140 MSPS encode rate capability and full power analog bandwidth of 300 MHz support resolutions up to SXGA (1280 × 1024 at 75 Hz).

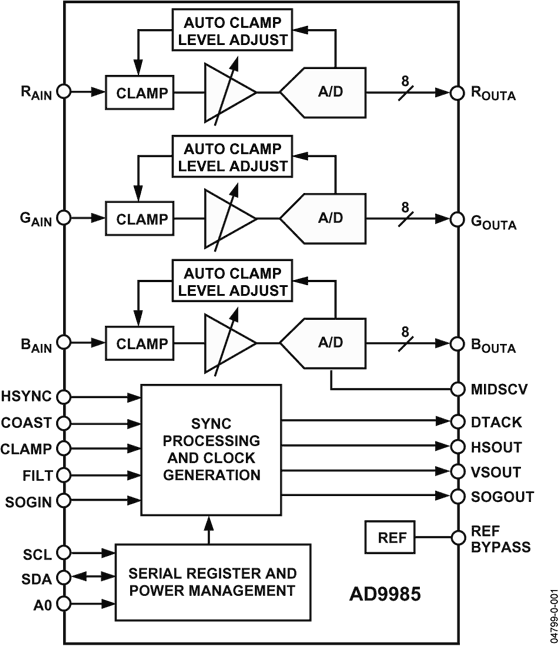

The AD9985 includes a 140 MHz triple ADC with internal 1.25 V reference, a PLL, and programmable gain, offset, and clamp control. The user provides only a 3.3 V power supply, analog input, and Hsync and COAST signals. Three-state CMOS outputs may be powered from 2.5 V to 3.3 V.

The AD9985’s on-chip PLL generates a pixel clock from the Hsync input. Pixel clock output frequencies range from 12 MHz to 140 MHz. PLL clock jitter is 500 ps p-p typical at 140 MSPS. When the COAST signal is presented, the PLL maintains its output frequency in the absence of Hsync. A sampling phase adjustment is provided. Data, Hsync, and clock output phase relationships are maintained. The AD9985 also offers full sync processing for composite sync and sync-on-green applications.

A clamp signal is generated internally or may be provided by the user through the CLAMP input pin. This interface is fully programmable via a 2-wire serial interface.

Fabricated in an advanced CMOS process, the AD9985 is provided in a space-saving 80-lead LQFP surface-mount plastic package and is specified over the –40°C to +85°C temperature range.

  • RGB graphics processing
  • LCD monitors and projectors
  • Plasma display panels
  • Scan converters
  • Microdisplays
  • Digital TV

Product Categories

Product Lifecycle icon-not-recommended Not Recommended for New Designs

This designates products ADI does not recommend broadly for new designs.

Software & Systems Requirements

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
AD9985BSTZ-110 Material Declaration Reliability Data 80-Lead LQFP (14mm x 14mm)
AD9985KSTZ-110 Material Declaration Reliability Data 80-Lead LQFP (14mm x 14mm)
