AD9979

NOT RECOMMENDED FOR NEW DESIGNS

14-Bit, CCD Signal Processor with Precision Timing™ Core

Data Sheet (Rev. C) Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

1.8 V analog and digital core supply voltage
Correlated double sampler (CDS) with –3 dB, 0 dB, +3 dB, and +6 dB gain
6 dB to 42 dB 10-bit variable gain amplifier (VGA)
14-bit 65 MHz analog-to-digital converter
Black-level clamp with variable level control

Complete on-chip timing generator
Precision Timing™ core with 240 ps resolution @ 65 MHz
On-chip 3 V horizontal and RG drivers
General-purpose outputs (GPOs) for shutter and system support

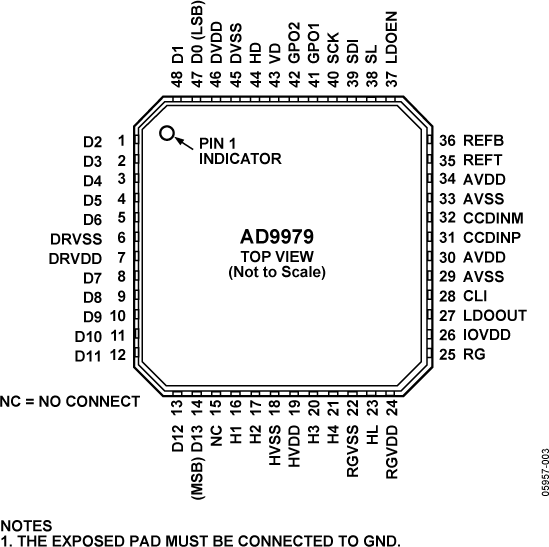

7 mm × 7 mm, 48-lead LFCSP
Internal LDO regulator circuitry

The AD9979 is a highly integrated CCD signal processor for high speed digital video camera applications. Specified at pixel rates of up to 65 MHz, the AD9979 consists of a complete analog front end with analog-to-digital conversion, combined with a programmable timing driver. The Precision Timing core allows adjustment of high speed clocks with approximately 240 ps resolution at 65 MHz operation.

The analog front end includes black-level clamping, CDS, VGA, and a 65 MSPS, 14-bit analog-to-digital converter (ADC). The timing driver provides the high speed CCD clock drivers for RG, HL, and H1 to H4. Operation is programmed using a 3-wire serial interface.

Available in a space-saving, 7 mm × 7 mm, 48-lead LFCSP, the AD9979 is specified over an operating temperature range of −25°C to +85°C.

Applications

Professional HDTV camcorders

Professional/high end digital cameras

Broadcast cameras

Industrial high speed cameras

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

AD9979: 14-Bit, CCD Signal Processor with Precision Timing Core Data Sheet (Rev.C) 10/08/2009

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD9979BCPZ	48-Lead LFCSP (7mm x 7mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD9979BCPZRL	48-Lead LFCSP (7mm x 7mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jun 9, 2021 - 20_0126 Conversion of Select Sizes LFCSP Products from Punched to Sawn and Transfer of Assembly Site to ASE Korea
		PCN20_0126_Form Qualification Results Summary Material_Report Detailed Change Description Package Outline Drawing Package Outline Drawing Qualification Results Summary Qualification Results Summary Qualification Results Summary Qualification Results Summary
AD9979BCPZ
AD9979BCPZRL
Sep 13, 2017 - 16_0077 CANCELLED: Conversion of Select 4x4, 5x5, 6x6 and 7x7mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE Korea.
		PCN16_0077_Form Material_Report Detailed Parts List Detailed Parts List Package Outline Drawing Detailed Change Description Qualification Results Summary
AD9979BCPZ
AD9979BCPZRL

This is the most up-to-date revision of the Data Sheet.
