Features and Benefits
- Correlated Double Sampler (CDS)
- 0 dB to 18 dB Pixel Gain Amplifier (PxGA®)
- 6 dB to 42 dB 10-Bit Variable Gain Amplifier (VGA)
- 12-Bit 36 MSPS A/D Converter
- Complete On-Chip Timing Driver
- Black Level Clamp with Variable Level Control
- Precision Timing Core with
- <600 ps Resolution
- On-Chip 3 V Horizontal and RG Drivers
- 40-Lead LFCSP Package

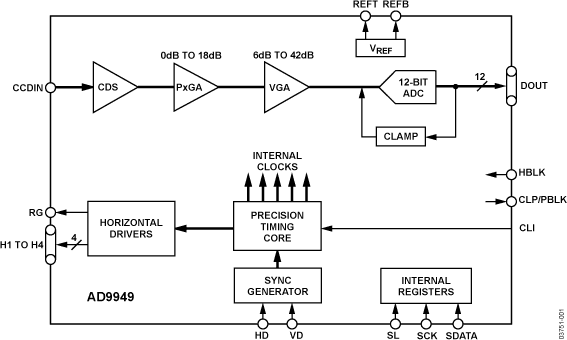

The AD9949 is a highly integrated CCD signal processor for digital still camera applications. Specified at pixel rates of up to 36 MHz, the AD9949 consists of a complete analog front end with A/D conversion, combined with a programmable timing driver. The Precision Timing core allows adjustment of high speed clocks with <600 ps resolution.
The analog front end includes black level clamping, CDS, PxGA, VGA, and a 36 MSPS 12-bit A/D converter. The timing driver provides the high speed CCD clock drivers for RG and H1–H4. Operation is programmed using a 3-wire serial interface.
Packaged in a space-saving 40-lead LFCSP package, the AD9949 is specified over an operating temperature range of –2ºC to +8ºC.
- Digital still cameras
- High speed digital imaging applications
Product Lifecycle Not Recommended for New Designs
This designates products ADI does not recommend broadly for new designs.
Documentation & Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|AD9949AKCPZ||Material Declaration||Reliability Data||40-Lead LFCSP (6mm x 6mm w/ EP)|
|AD9949AKCPZRL||Material Declaration||Reliability Data||40-Lead LFCSP (6mm x 6mm w/ EP)|
|AD9949KCPZ||Material Declaration||Reliability Data||40-Lead LFCSP (6mm x 6mm w/ EP)|
|AD9949KCPZRL||Material Declaration||Reliability Data||40-Lead LFCSP (6mm x 6mm w/ EP)|
|Wafer Fabrication Data|
