  4. AD9923A


Overview

Features and Benefits

  • Integrated 15-channel V-driver
  • 12-bit, 36 MHz analog-to-digital converter (ADC)
  • Similar register map to the AD9923
  • 5-field, 10-phase vertical clock support
  • Complete on-chip timing generator
  • Precision Timing core with <600 ps resolution
  • Correlated double sampler (CDS)
  • 6 dB to 42 dB 10-bit variable gain amplifier (VGA)
  • Black level clamp with variable level control
  • On-chip 3 V horizontal and RG drivers
  • 2-phase and 4-phase H-clock modes
  • Electronic and mechanical shutter support

Product Details

The AD9923A is a complete 36 MHz front-end solution for digital still cameras and other CCD imaging applications. Similar to the AD9923 product, the AD9923A includes the analog front end (AFE), a fully programmable timing generator (TG), and a 15-channel vertical driver (V-driver). A Precision Timing core allows adjustment of high speed clocks with approximately 600 ps resolution at 36 MHz operation.

The on-chip V-driver supports up to 15 channels for use with 5-field, 10-phase CCDs.

The analog front end includes black level clamping, CDS, VGA, and a 12-bit ADC. The timing generator and V-driver provide all the necessary CCD clocks: RG, H-clocks, vertical clocks, sensor gate pulses, substrate clock, and substrate bias control. The internal registers are programmed using a 3-wire serial interface.

Packaged in an 8 mm × 8 mm CSP_BGA, the AD9923A is specified over an operating temperature range of −25°C to +85°C.

APPLICATIONS

  • Digital still cameras

Product Lifecycle icon-not-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models

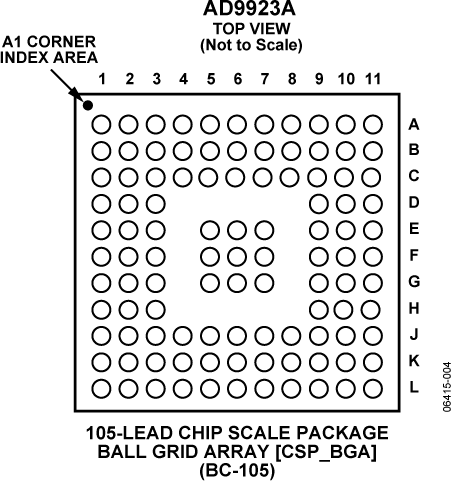

AD9923ABBCZ Material Declaration Reliability Data 105 ball CSPBGA (8mm²)
AD9923ABBCZRL Material Declaration Reliability Data 105 ball CSPBGA (8mm²)
