AD9883A

LAST TIME BUY

Highly Integrated Graphics Interface Chip Includes Three 8-Bit/110 MSPS ADCs

Data Sheet (Rev. B) Product Selection Table

Part Models: 1
1ku List Price: price unavailable

Viewing:

Overview

Industrial Temperature Range Operation
140 MSPS Maximum Conversion Rate
300 MHz Analog Bandwidth
0.5 V to 1.0 V Analog Input Range
500 ps p-p PLL Clock Jitter at 110 MSPS
3.3 V Power Supply

Full Sync Processing
Sync Detect for Hot Plugging
Midscale Clamping
Power-Down Mode
Low Power: 500 mW Typical
4:2:2 Output Mode

The AD9883A is a complete 8-bit 140 MSPS monolithic analog interface optimized for capturing RGB graphics signals from personal computers and workstations. Its 140 MSPS encode rate capability and full-power analog bandwidth of 300 MHz supports resolutions up to SXGA (1280 x 1024 at 75 Hz). The AD9883A is sold in both industrial and commercial temperature grade products.

Part Models: 1
1ku List Price: price unavailable

Documentation

Data Sheet 1

AD9883A: 110 MSPS/140 MSPS Analog Interface for Flat Panel Interface Data Sheet (Rev.B) 10/15/2001

Technical Articles 1

Analysis of Common Failures of HDMI CT 04/02/2008

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

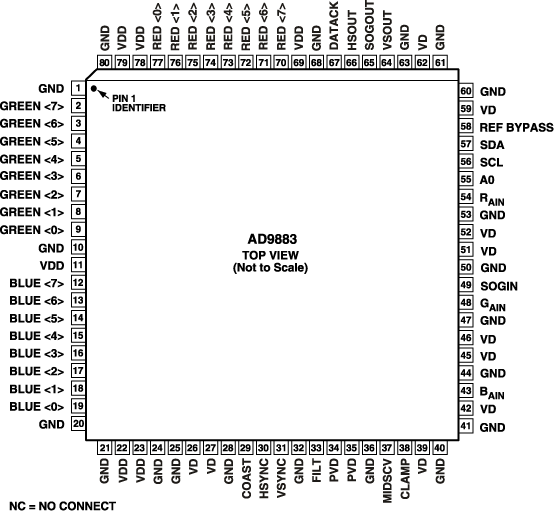

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD9883ABSTZ-RL110	80-Lead LQFP (14mm x 14mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 25, 2011 - 11_0172 Fab Transfer from MagnaChip to TSMC for AD9883ABSTZ Models
		PCN11_0172_Form Material_Report
AD9883ABSTZ-RL110	Obsolete	PCN11_0172_Form Material_Report
Jan 5, 2009 - 07_0077 Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages
		07_0077Rev D_LQFP_Dec17 07_0077Rev D_MQFP_Dec15 07_0077Rev D_Obsolesence_Dec15 07_0077Rev D_TQFP_Dec15 Material_Report PCN07_0077_Form QFP Transfer Qualification Results-tests_DEC12CL
AD9883ABSTZ-RL110	Obsolete
Jan 29, 2014 - 14_0014 ADI Corporate Obsolescence Notice-January 2014 (Standard Products)
		PDN14_0014_Form Material_Report
AD9883ABSTZ-RL110	Obsolete	PDN14_0014_Form Material_Report

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
ADV7842	RECOMMENDED FOR NEW DESIGNS	Dual HDMI 1.4 Fast Switching Receiver with 12-Bit, 170 MHz Video and Graphics Digitizer and 3D Comb Filter Decoder
