ADV7842
Dual HDMI 1.4 Fast Switching Receiver with 12-Bit, 170 MHz Video and Graphics Digitizer and 3D Comb Filter Decoder
Overview
Features and Benefits
- Analog/HDMI Dual Interface
- Supports High-Bandwidth Digital Content Protection
- RGB to YCbCr two-way color conversion
- Automated clamping level adjustment
- 1.8/3.3V Power Supply
- 100-pin LQFP Pb-Free Package
- RGB and YCbCr Output Formats
- Analog Interface
8-bit Triple Analog to Digital Converters
- Digital Video Interface
HDMI v1.1, DVI v1.0
150 MHz HDMI Receiver
Supports High-Bandwidth Digital Content Protection (HDCP 1.1) - Digital Audio Interface
HDMI 1.1 compatible audio interface
S/PDIF (IEC90658 compatible) digital audio output
8-channel I2S audio output - See data sheet for additional features
Product Details
The AD9880 offers designers the flexibility of an analog interface and High-Definition Multimedia Interface (HDMI™) receiver integrated on a single chip. Also included is support for High bandwidth Digital Content Protection (HDCP).
ANALOG INTERFACE
The AD9880 is a complete 8-bit 150 MSPS monolithic analog interface optimized for capturing Component Video (YPbPr) and RGB graphics signals. Its 150 MSPS encode rate capability and full power analog bandwidth of 300 MHz supports all HDTV formats (up to 1080p) and FPD resolutions up to SXGA (1280 × 1024 at 75 Hz).
The analog interface includes a 150 MHz triple ADC with internal 1.25V reference, a Phase Locked Loop (PLL), and programmable gain, offset, and clamp control. The user provides only 1.8V and 3.3V power supply, analog input, and Hsync. Three-state CMOS outputs may be powered from 1.8V to 3.3V. The AD9880’s on-chip PLL generates a pixel clock from Hsync. Pixel clock output frequencies range from 12 MHz to 150 MHz. PLL clock jitter is typically less than 500 ps p-p at 150 MHz. The AD9880 also offers full sync processing for composite sync and Sync-on-Green (SOG) applications.
DIGITAL INTERFACE
The AD9880 contains a HDMI v1.1 compatible receiver and supports all HDTV formats (up to 1080p) and display resolutions up to SXGA (1280 × 1024 at 75 Hz). The receiver features an intra-pair skew tolerance of up to one full clock cycle. With the inclusion of HDCP, displays may now receive encrypted video content. The AD9880 allows for authentication of a video receiver, decryption of encoded data at the receiver, and renewability of that authentication during transmission as specified by the HDCP v1.1 protocol.

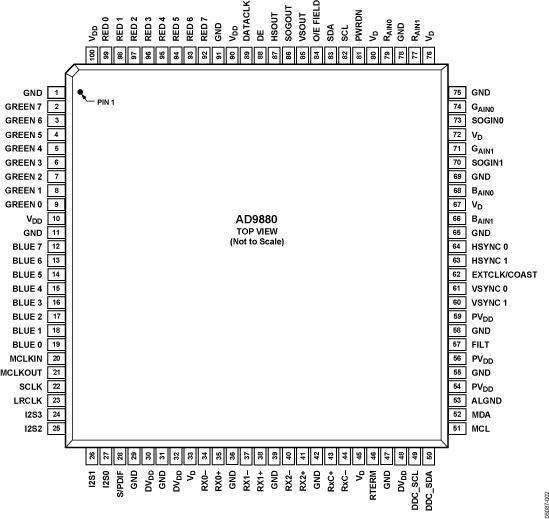

Fabricated in an advanced CMOS process, the AD9880 is provided in a space-saving 100-lead LQFP surface-mount Pb-free plastic package and is specified over the 0 ºC to 70 ºC temperature range.
APPLICATIONS
- Advanced TV
- HDTV
- Projectors
- LCD Monitor
Product Categories
Product Lifecycle
Last Time Buy
All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.
