Overview

Features and Benefits

  • 6 channels of LNA, PGA, AAF
  • 1 channel of direct-to-ADC
  • Parallel 3.3V CMOS Output
  • Programmable third-order low-pass elliptic filter (LPF) from 1 MHz to 12 MHz
  • Precise channel-to-channel matching
    Gain: ±0.5dB (-40 to 105°C)
    Phase: ±5° (-40 to 105°C)
  • SPI-programmable gain = 16 dB to 34 dB in 6 dB steps
  • Low noise, 3.5 nV/√Hz maximum of input referred voltage noise
  • Low power, 170 mW per channel at 12 bits/80 MSPS
  • Selectable Input Impedance: 200Ω or 200kΩ
  • Qualified for automotive applications

Product Details

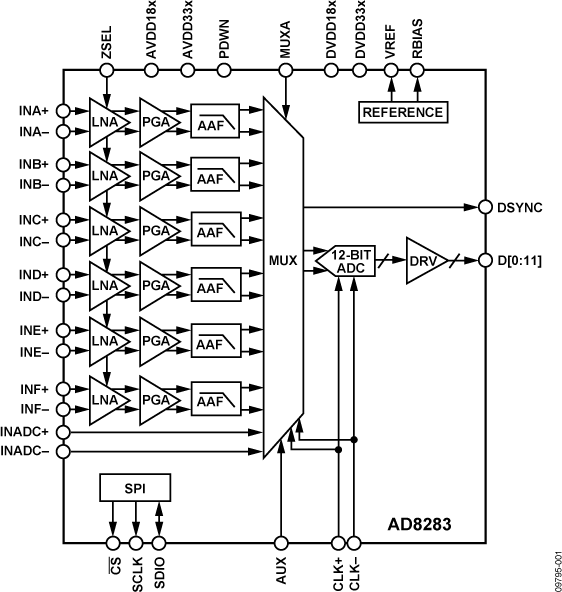

The AD8283 is designed for low cost, low power, compact size, flexibility, and ease of use. It contains six channels of a low noise preamplifier (LNA) with a programmable gain amplifier (PGA) and an antialiasing filter (AAF) plus one direct-to-ADC channel, all integrated with a single 12-bit analog-to-digital converter (ADC).

Each channel features a gain range of 16 dB to 34 dB in 6 dB increments and an ADC with a conversion rate of up to 80 MSPS. The combined input-referred noise voltage of the entire channel is 3.5 nV/√Hz at maximum gain. The channel is optimized for dynamic performance and low power in applications where a small package size is critical.

Fabricated in an advanced CMOS process, the AD8283 is available in a 10 mm × 10 mm, RoHS-compliant, 72-lead LFCSP. It is specified over the automotive temperature range of −40°C to +105°C.

APPLICATIONS

  • Automotive radar
    Adaptive cruise control
    Collision avoidance
    Blind spot detection
    Self-parking
    Electronic bumper

Product Categories

Markets and Technologies

EDN Hot 100 products of 2011 - AD8283

The AD8283 Analog Front End decreases the size and cost of radar systems while increasing the system flexibility.

AD8283 Won 2011 EDN China Innovation Award
