AD8182S: Military Data Sheet4/15/2011
AD8182S
Aerospace Dual 2:1 Buffered, 750 MHz, 3.8 mA, 10 ns Switching Multiplexer
Top
Overview
Features and Benefits
- Fully Buffered Inputs and Outputs
- Fast Output Disable Feature for Connecting Multiple Devices
- Low All-Hostile Crosstalk
- Low Power
- Low Glitch
- High “OFF” Isolation
- Fast Channel Switching
- Fast Settling Time of 14 ns to 0.2% 750 V/µs Slew Rate
Product Details
The AD8182S is a high speed 2-to-1 multiplexers. It offers a wide -3 dB signal bandwidth along with a fast slew rate. With better excellent crosstalk and isolation, it is useful in many high speed applications. The differential gain and differential phase error, along with its gain flatness make AD8182 ideal for professional video multiplexing. It offers 5 ns switching time making them an excellent choice for pixel switching (picture-in-picture) while consuming only less than 3.8 mA typical (per 2:1 mux) on ±5 V supply voltage.
Both devices offer a high speed disable feature allowing the output to be put into a high impedance state. This allows multiple outputs to be connected together for cascading stages while the "OFF" channels do not load the output bus. They operate on voltage supplies of ±5 V.
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
-
AD8182S High Dose Rate Radiation Report7/31/2015
-
AD8182S Low Dose Rate Radiation Report7/31/2015
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| 5962L1021102VDA | Material Declaration | Reliability Data | CER. FLATPACK WITH LEADS | |

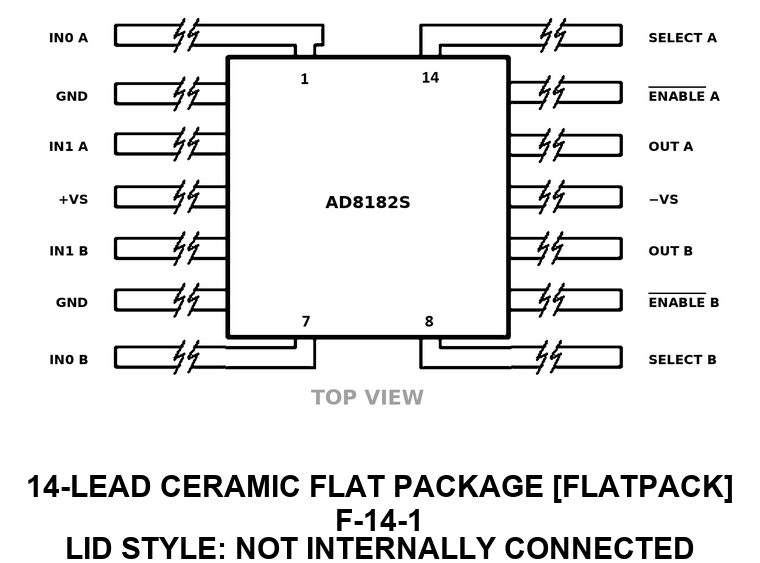

| 5962R1021101VDA | Material Declaration | Reliability Data | 14 ld Flat Pack | |
| AD8182AM-EMX | Material Declaration | Reliability Data | CER. FLATPACK WITH LEADS | |
| Wafer Fabrication Data |
