Features and Benefits

  • Low Cost
  • 34 ´ 34, Fully Differential, Nonblocking Array
  • 3.2 Gbps per Port NRZ Data Rate
  • Wide Power Supply Range: 2.5 V to 3.3 V
  • LVTTL or LVCMOS Level Control Inputs: @ 2.5 V to 3.3 V
  • Low Power
    2.0 W @ 2.5 V (Outputs Enabled)
    <100 mW @ 2.5 V (Outputs Disabled)
  • Low Jitter: 45 ps
  • Drives a Backplane Directly
  • Dual Rank Latches

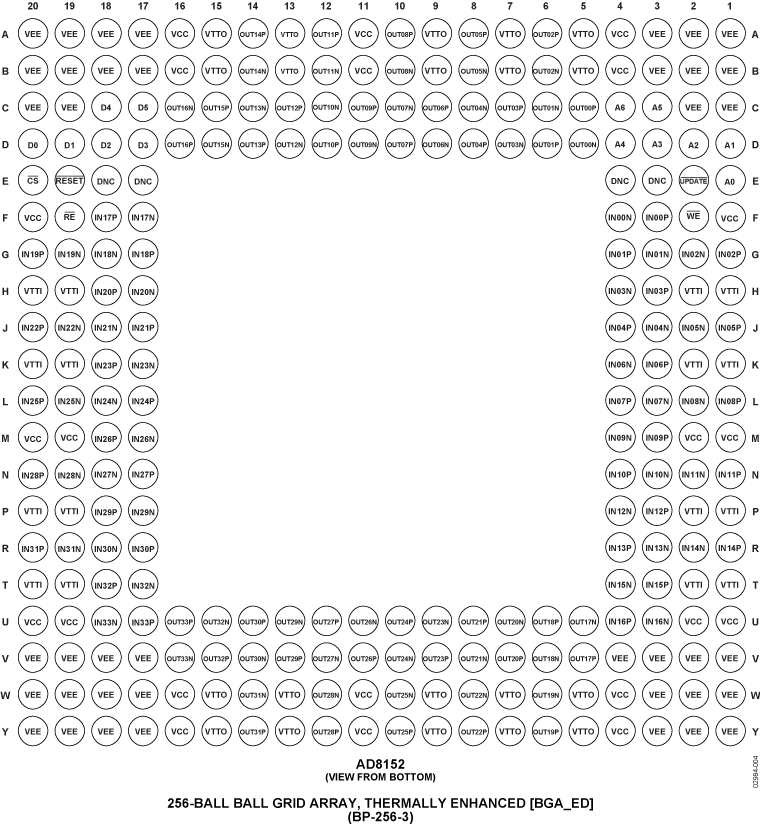

  • Available in 256-Ball Grid Array
  • Programmable Output Swing
    100 mV to 1.6 V Differential
    50 O On-Chip I/O Termination
    User Controlled Voltage at the Load
    Minimizes Power Dissipation

Product Details

AD8152 is a member of the X stream line of products and is a breakthrough in digital switching, offering a large switch array (34 × 34) on very little power, typically 2.0 W. Additionally, it operates at data rates up to 3.2 Gbps per port, making it suitable for Sonet/SDH OC-48 with Forward Error Correction (FEC).

The AD8152's useful supply voltage range allows the user to operate at LVPECL/CML data levels with operation down to 2.5 V. The control interface is LVTTL or CMOS/TTL compatible (2.5 V to 3.3 V).

The AD8152's fully differential signal path reduces jitter and crosstalk while allowing the use of smaller single-ended voltage swings. The AD8152 is offered in a 256-lead SBGA package that operates over the industrial temperature range of 0°C to 85°C.
