Features and Benefits

  • Low cost, 16 × 8, high speed, nonblocking switch array
    Pin-compatible 16 × 16 version available (AD8113)
  • Serial or parallel programming of switch array
  • Serial data out allows daisy chaining control of multiple
    16 × 8 arrays to create larger switch arrays
  • Output disable allows connection of multiple devices without loading the output bus
  • Complete solution
    Buffered inputs
    8 output amplifiers
    Operates on ±5 V or ±12 V supplies
    Low supply current of 54 mA
  • Excellent audio performance VS = ±12 V
    ±10 V output swing
    0.002% THD at 20 kHz maximum 20 V p-p (RL = 600 Ω)
  • Excellent video performance VS = ±5 V
  • 0.1 dB gain flatness of 10 MHz
    0.1% differential gain error (RL = 1 kΩ)
    0.1° differential phase error (RL = 1 kΩ)
  • Excellent ac performance
    −3 dB bandwidth 60 MHz
  • Low all-hostile crosstalk of −83 dB at 20 kHz
  • Reset pin allows disabling of all outputs (connected to a capacitor to ground provides power-on reset capability)

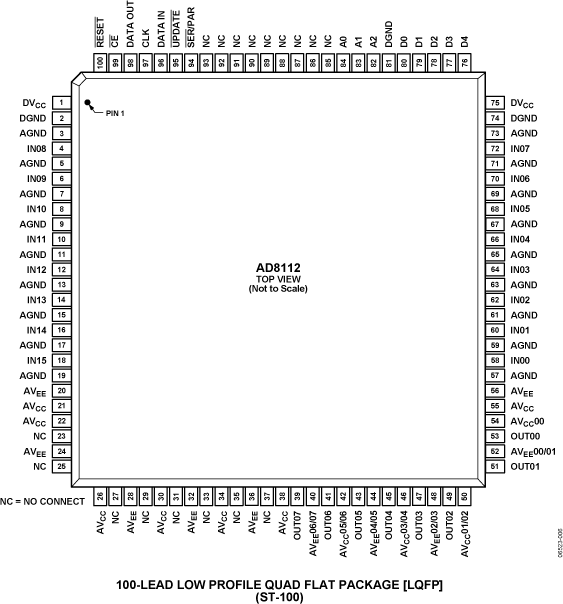

  • 100-lead LQFP (14 mm × 14 mm)

Product Details

The AD8112 is a low cost, fully buffered crosspoint switch matrix that operates on ±12 V for audio applications and ±5 V for video applications. It offers a −3 dB signal bandwidth greater than 60 MHz and channel switch times of less than 60 ns with 0.1% settling for use in both analog and digital audio. The AD8112 operated at 20 kHz has a crosstalk performance of −83 dB and isolation of 90 dB. In addition, ground/power pins surround all inputs and outputs to provide extra shielding for operation in the most demanding audio routing applications. With a differential gain and differential phase better than 0.1% and 0.1°, respectively, and a 0.1 dB flatness output of up to 10 MHz, the AD8112 is suitable for many video applications.

The AD8112 includes eight independent output buffers that can be placed into a disabled state for paralleling crosspoint outputs so that off channel loading is minimized. The AD8112 has a gain of +2. It operates on voltage supplies of ±5 V or ±12 V while consuming only 34 mA or 31 mA of current, respectively. The channel switching is performed via a serial digital control (which can accommodate the daisy chaining of several devices) or via a parallel control, allowing updating of an individual output without reprogramming the entire array.

The AD8112 is packaged in a 100-lead LQFP and is available over the commercial temperature range of 0°C to 70°C.

  • CCTV surveillance/DVR
  • Analog/digital audio routers
  • Video routers (NTSC, PAL, S-Video, SECAM)
  • Multimedia systems
  • Video conferencing

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
